Ferrari F80 — [MECHANICAL SYSTEM] - D.14 - ENGINE COOLING SYSTEM RADIATORS (diagram 0064)

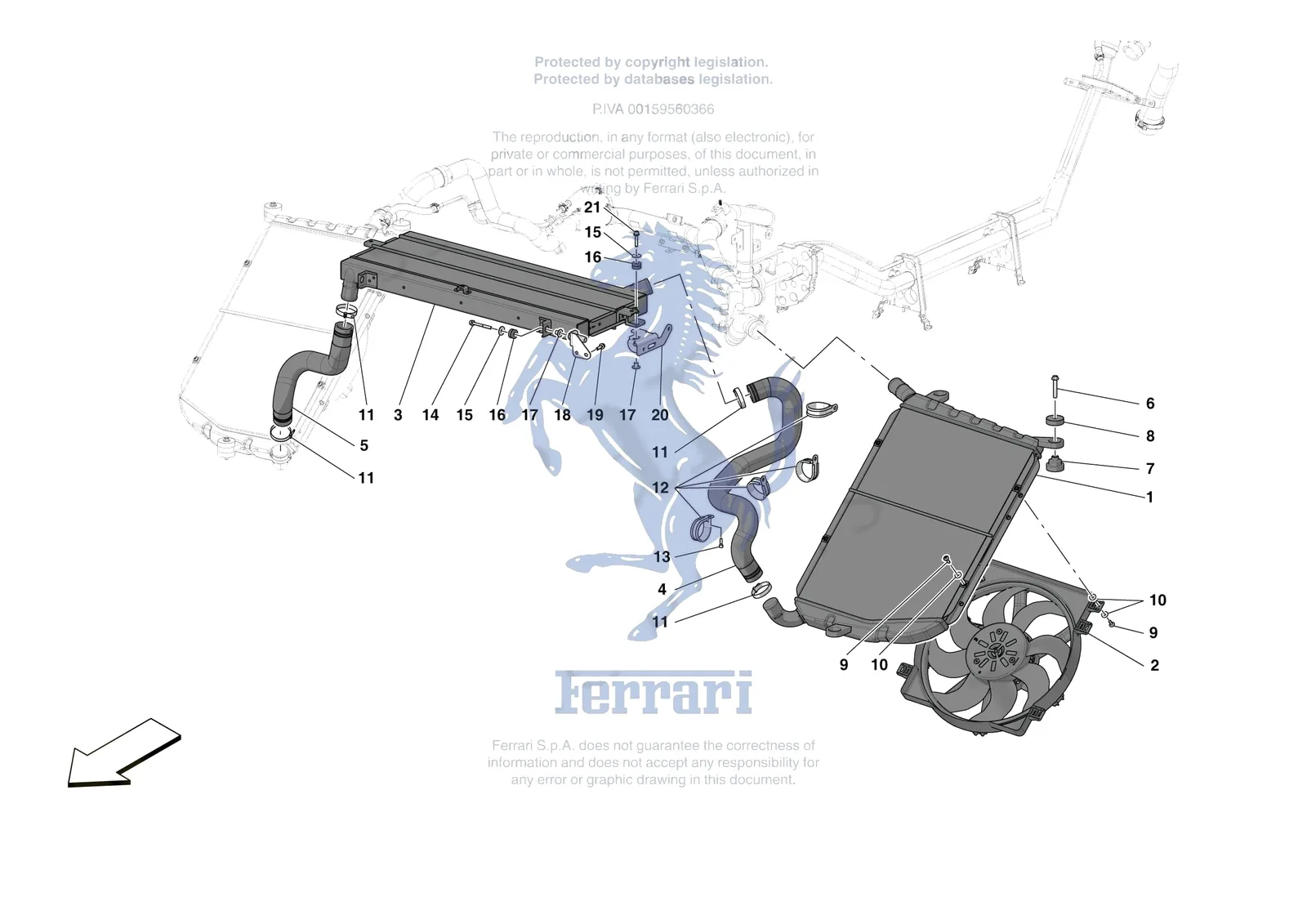

Exploded view of the [mechanical system] - d.14 - engine cooling system radiators on the Ferrari F80, with 27 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari F80 [MECHANICAL SYSTEM] - D.14 - ENGINE COOLING SYSTEM RADIATORS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f80/0064.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14432221 | Ferrari Screw - 14432221 | Superseded | Order 231619 instead | |
| 216568 | Ferrari Screw 6x30 - 216568 | Superseded | Order 231621 instead | |
| 14432224 | Ferrari Screw M6 x 22 - 14432224 | Superseded | Order 231619 instead | |
| 1 | 989698 | Ferrari LH FRONT WATER RADIATOR - 989698 | Price on request | Contact us for price and availability |
| 1 | 989699 | Ferrari RH FRONT WATER RADIATOR - 989699 | Price on request | Contact us for price and availability |
| 2 | 971512 | Ferrari Cowl - 971512 | $1,875.98 | Special order, ships in 7-14 days |
| 3 | 989700 | Ferrari CENTRE FRONT WATER RADIATOR - 989700 | Price on request | Contact us for price and availability |
| 4 | 961639 | Ferrari Front Radiator Hose - 961639 | $270.83 | Special order, ships in 7-14 days |
| 5 | 972101 | Ferrari Centre Radiator Water Outlet - 972101 | $174.80 | Special order, ships in 7-14 days |
| 6 | 299693 | Ferrari TITANIUM SCREW - 299693 | Price on request | Contact us for price and availability |
| 7 | 237478 | Ferrari Mounting - 237478 | $36.86 | Available, ships in 3-6 days |
| 8 | 247751 | Ferrari Washer - 247751 | $11.56 | Available, ships in 3-6 days |
| 9 | 85692400 | Ferrari Screw M5 x 20 TBFTX - 85692400 | $0.92 | Available, ships in 3-6 days |
| 10 | 13577724 | Ferrari Washer - 13577724 | $3.68 | Special order, ships in 7-14 days |
| 11 | 262114 | Ferrari Collar - 262114 | $2.38 | Available, ships in 3-6 days |
| 12 | 898344 | Ferrari BRACKET - 898344 | Price on request | Contact us for price and availability |
| 13 | 256323 | Ferrari Screw 5x16 - 256323 | $0.98 | Available, ships in 3-6 days |
| 14 | 255494 | Ferrari Screw - 255494 | $18.76 | Available, ships in 3-6 days |
| 15 | 983365 | Ferrari Washer D.6.2x20x1.5 - 983365 | $0.63 | Special order, ships in 7-14 days |
| 16 | 953224 | Ferrari Grommet - 953224 | $10.70 | Special order, ships in 7-14 days |
| 17 | 149707 | Ferrari Spacer - 149707 | $2.13 | Available, ships in 3-6 days |
| 18 | 974765 | Ferrari LH FRONT BRACKET - 974765 | Price on request | Contact us for price and availability |
| 18 | 974766 | Ferrari RH FRONT BRACKET - 974766 | Price on request | Contact us for price and availability |
| 19 | 231619 | Ferrari Screw M6 x 22 - 231619 | $0.54 | Available, ships in 3-6 days |
| 20 | 986626 | Ferrari LH CENTRE RADIATOR BRACKET - 986626 | Price on request | Contact us for price and availability |
| 20 | 986627 | Ferrari RH CENTRE RADIATOR BRACKET - 986627 | Price on request | Contact us for price and availability |
| 21 | 231621 | Ferrari Allen Screw M6 x 30 TCEI - 231621 | $0.73 | Available, ships in 3-6 days |
