Ferrari F80 — [MECHANICAL SYSTEM] - D.16 - COOLING SYSTEM PIPES (diagram 0066)

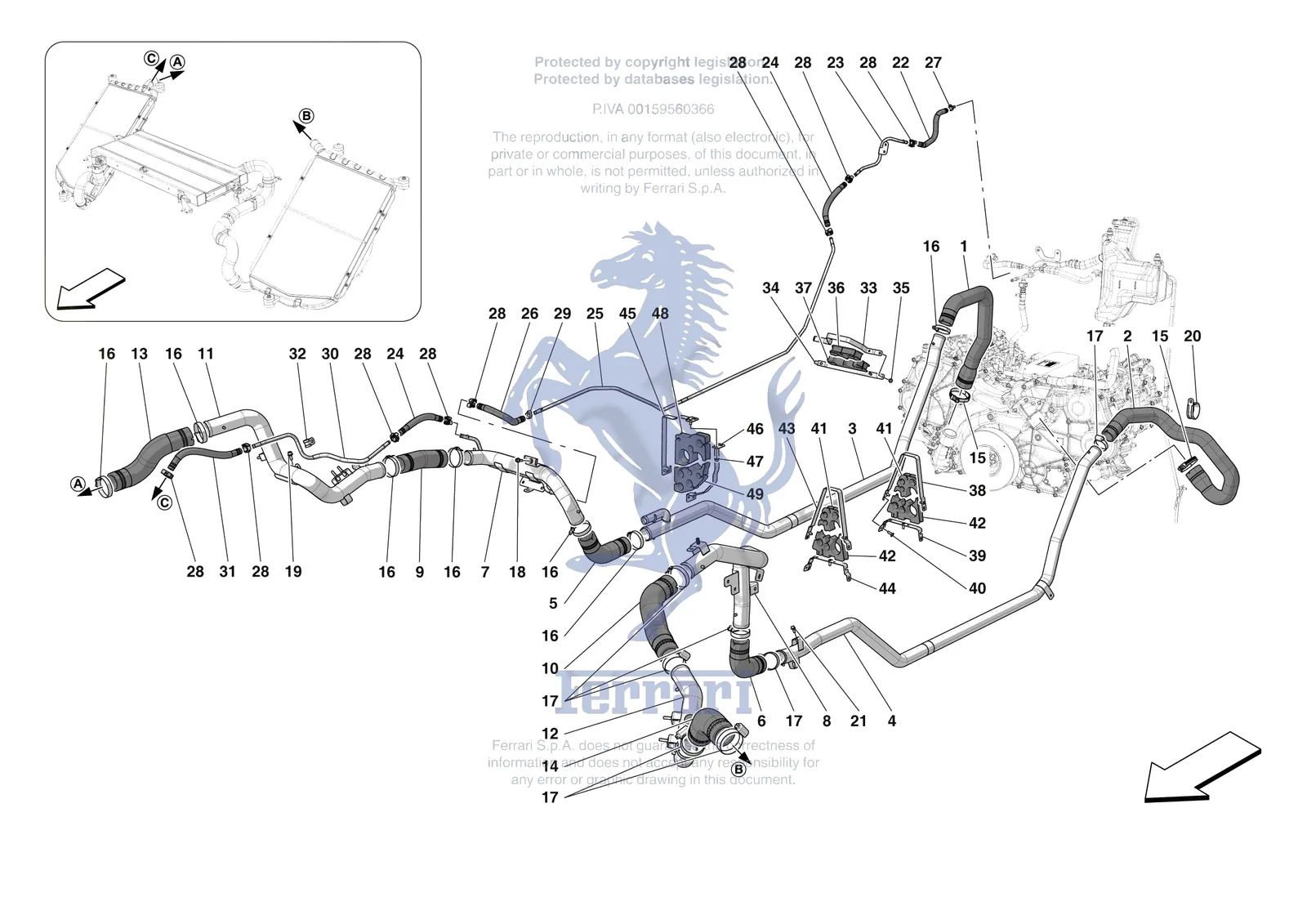

Exploded view of the [mechanical system] - d.16 - cooling system pipes on the Ferrari F80, with 57 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari F80 [MECHANICAL SYSTEM] - D.16 - COOLING SYSTEM PIPES exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
105303Ferrari Clamp - 105303SupersededOrder 13000690 instead
12173990Ferrari Clip - 12173990SupersededOrder 13000690 instead
13046011Ferrari Flanged Nut - 13046011$0.73Available, ships in 3-6 days
12174090Ferrari Hose Clip 32-50 - 12174090SupersededOrder 13000690 instead
12177090Ferrari Hose Clip 32-50 - 12177090SupersededOrder 13000690 instead
81911200Ferrari Screw - 81911200SupersededOrder 85692200 instead
68176300Ferrari Screw 5x12 - 68176300SupersededOrder 85692200 instead
1890116Ferrari Radiator Water Return Hose - 890116$443.17Special order, ships in 7-14 days
255033553Ferrari Radiator Water Delivery Hose - 55033553$2,567.77Special order, ships in 7-14 days
3890110Ferrari Underbody Water Return Pipe - 890110$467.80Special order, ships in 7-14 days
4890104Ferrari Underbody Water Delivery Pip - 890104$640.17Special order, ships in 7-14 days
5941282Ferrari Radiator Water Return Hose - 941282$103.38Special order, ships in 7-14 days
655033554Ferrari Tunnel Outlet Water Delivery - 55033554$1,280.35Special order, ships in 7-14 days
7943577Ferrari RH Front Tunnel Outlet Pipe - 943577$763.27Special order, ships in 7-14 days
8908976Ferrari Front Water Delivery Pipe - 908976$664.78Special order, ships in 7-14 days
9941266Ferrari RH Front Hose - 941266$68.92Special order, ships in 7-14 days
1055033555Ferrari LH Front Hose - 55033555$960.25Special order, ships in 7-14 days
11943578Ferrari RH Front Water Pipe - 943578$861.77Special order, ships in 7-14 days
12825483Ferrari Front LH Rigid Pipe - 825483$517.04Special order, ships in 7-14 days
13902096Ferrari RH Radiator Outlet Hose - 902096$123.09Special order, ships in 7-14 days
1455033556Ferrari LH Radiator Inlet Hose - 55033556$689.41Special order, ships in 7-14 days
15272913Ferrari Collar - 272913$7.63Special order, ships in 7-14 days
16262114Ferrari Collar - 262114$2.38Available, ships in 3-6 days
1713000690Ferrari/Maserati Hose Clamp - 13000690$1.49In stock
18256323Ferrari Screw 5x16 - 256323$0.98Available, ships in 3-6 days
19797724Ferrari Screw - 797724$0.92Special order, ships in 7-14 days
20898344Ferrari BRACKET - 898344Price on requestContact us for price and availability
21797723Ferrari Screw - 797723$0.86Special order, ships in 7-14 days
22884924Ferrari Rear Outlet Breather Hose - 884924$110.78Special order, ships in 7-14 days
23884922Ferrari Radiator Self-Bleeding Pipe - 884922$216.66Special order, ships in 7-14 days
24946364Ferrari Radiator Breather Hose - 946364$71.38Special order, ships in 7-14 days
25990679Ferrari TUBO AUTOSPURGO RAD SOTTOPIANALE - 990679$174.80Special order, ships in 7-14 days
26902163Ferrari Front Radiator Breather Hose - 902163$83.68Special order, ships in 7-14 days
2713125470Ferrari Collar - 13125470SupersededOrder 13126970 instead
2713126970Ferrari Collar - 13126970$3.03Available, ships in 3-6 days
28868787Ferrari Collar - 868787$5.86Special order, ships in 7-14 days
2913432070Ferrari/Maserati Screw Collar / Hose Clamp - 13432070$0.95In stock
30990685Ferrari TUBAZIONE ANTERIORE SFIATO RADIATORI - 990685$155.10Special order, ships in 7-14 days
31902198Ferrari Radiator Outlet Breather Hos - 902198$78.76Special order, ships in 7-14 days
3210441190Ferrari P clip Bracket With Sheath D8mm - 10441190$0.90Available, ships in 3-6 days
3355005690Ferrari UPPER BRACKET FOR REAR RETAINER BLOCK - 55005690Price on requestContact us for price and availability
3455005686Ferrari LOWER BRACKET FOR REAR RETAINER BLOCK - 55005686Price on requestContact us for price and availability
3585692200Ferrari SCREW M5 x 12 - 85692200$0.65Available, ships in 3-6 days
36974778Ferrari Upper Rear Retainer Block - 974778$49.22Special order, ships in 7-14 days
3755005689Ferrari Lower Rear Retainer Block - 55005689$51.67Special order, ships in 7-14 days
38940070Ferrari UPPER BRACKET FOR UNDERBODY PILLORY BLOCK - 940070Price on requestContact us for price and availability
39974738Ferrari LOWER BRACKET FOR UNDERBODY PILLORY BLOCK - 974738Price on requestContact us for price and availability
4085833900Ferrari Screw M5 x 16 TBFTX - 85833900$0.65Available, ships in 3-6 days
41974776Ferrari Pipe Upper Retainer Block - 974776$59.07Special order, ships in 7-14 days
42974777Ferrari Lower Pipe Retainer Block - 974777$61.52Special order, ships in 7-14 days
43940069Ferrari UPPER BRACKET FOR UNDERBODY PILLORY BLOCK - 940069Price on requestContact us for price and availability
44974736Ferrari LOWER BRACKET FOR UNDERBODY PILLORY BLOCK - 974736Price on requestContact us for price and availability
45940065Ferrari UPPER BRACKET FOR FRONT RETAINER BLOCK - 940065Price on requestContact us for price and availability
46940066Ferrari LOWER BRACKET FOR FRONT RETAINER BLOCK - 940066Price on requestContact us for price and availability
4714040514Ferrari Flanged Nut - 14040514SupersededOrder 13046011 instead
48974773Ferrari Upper Front Retainer Block - 974773$68.92Special order, ships in 7-14 days
49974775Ferrari Lower Front Retainer Block - 974775$59.07Special order, ships in 7-14 days
