Ferrari F80 — [MECHANICAL SYSTEM] - D.19 - ACCELERATOR CONTROL (diagram 0069)

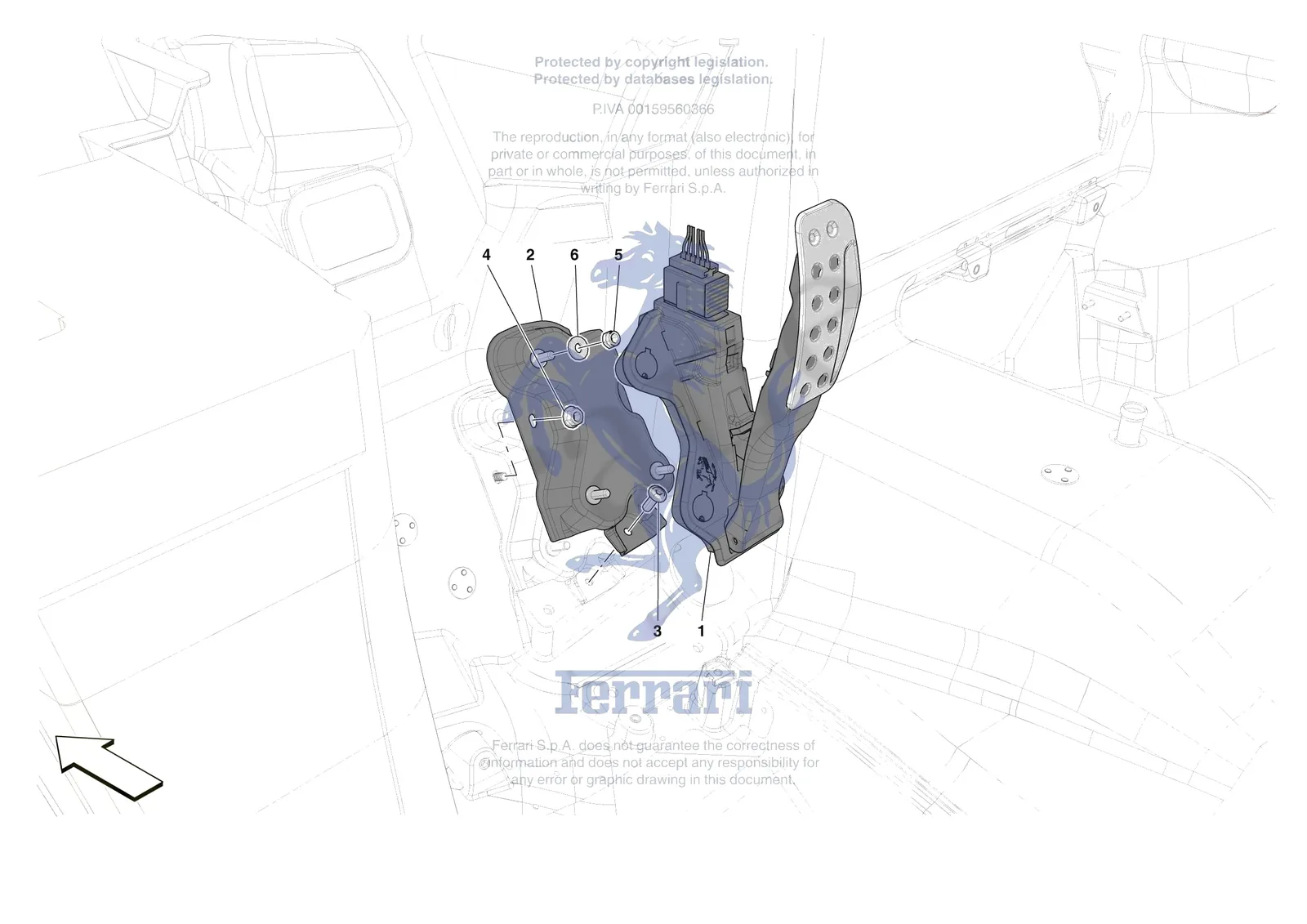

Exploded view of the [mechanical system] - d.19 - accelerator control on the Ferrari F80, with 8 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari F80 [MECHANICAL SYSTEM] - D.19 - ACCELERATOR CONTROL exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f80/0069.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 12575411 | Ferrari Nyloc Nut M6 x 6 - 12575411 | Superseded | Order 12575421 instead | |
| 1 | 843421 | Ferrari Compl. Accelerator Pedal - 843421 | $812.51 | Special order, ships in 7-14 days |
| 2 | 747549 | Ferrari ACCELERATOR PEDAL MOUNTING BRACKET - 747549 | Price on request | Contact us for price and availability |
| 3 | 269959 | Ferrari Screw - 269959 | $1.61 | In stock |
| 4 | 14059211 | Ferrari Flanged Nut - 14059211 | $0.13 | Available, ships in 3-6 days |
| 5 | 12575421 | Ferrari Nyloc Nut M6 x 6 - 12575421 | $0.40 | Available, ships in 3-6 days |
| 5 | 102741 | Ferrari/Maserati Nyloc Nut M6 - 102741 | $0.45 | In stock |
| 6 | 12646624 | Ferrari Washer 6.15-15x1.5 - 12646624 | $0.40 | Available, ships in 3-6 days |
