Ferrari F80 — [MECHANICAL SYSTEM] - D.22 - BRAKE MASTER CYLINDER RESERVOIR (diagram 0072)

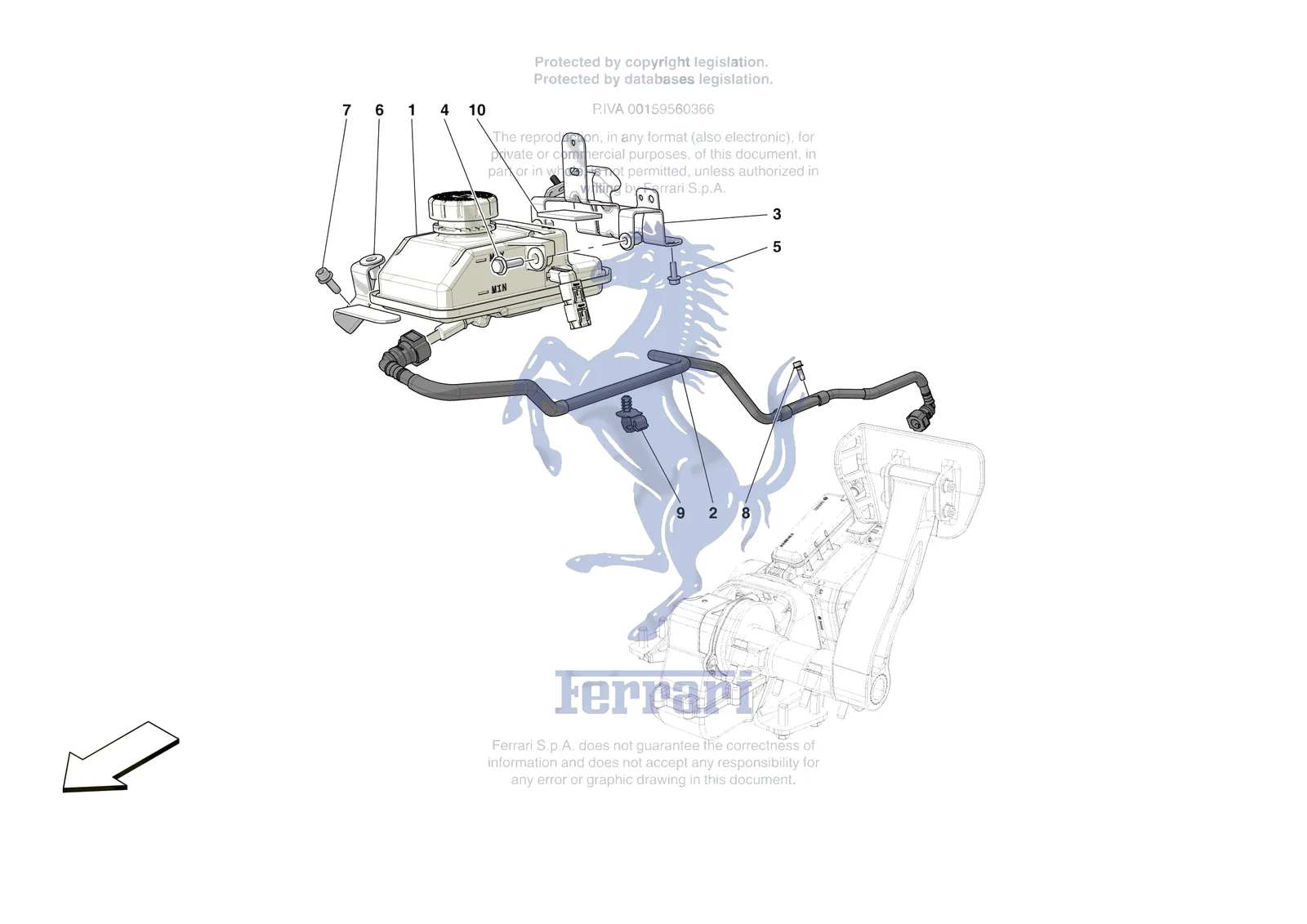

Exploded view of the [mechanical system] - d.22 - brake master cylinder reservoir on the Ferrari F80, with 12 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari F80 [MECHANICAL SYSTEM] - D.22 - BRAKE MASTER CYLINDER RESERVOIR exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f80/0072.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14433121 | Ferrari Screw - 14433121 | Superseded | Order 231617 instead | |
| 1 | 819954 | Ferrari Vaschetta Liquido Freni Re - 819954 | $319.62 | Special order, ships in 7-14 days |
| 2 | 990691 | Ferrari TUBO DA SERBATOIO A IPB - 990691 | $320.06 | Special order, ships in 7-14 days |
| 3 | 957068 | Ferrari Bracket - 957068 | $369.30 | Special order, ships in 7-14 days |
| 4 | 11626124 | Ferrari Screw 6x25 - 11626124 | Superseded | Order 11612826 instead |
| 4 | 11612826 | Ferrari Screw M6 x 25 - 11612826 | $6.75 | Available, ships in 3-6 days |
| 5 | 16281827 | Ferrari Screw 5x14 - 16281827 | $0.46 | Special order, ships in 7-14 days |
| 6 | 957075 | Ferrari Z Mount For Brake Fluid Rese - 957075 | $162.48 | Special order, ships in 7-14 days |
| 7 | 231617 | Ferrari Screw M6 x 18 TCEI - 231617 | Superseded | Order 14433124 instead |
| 8 | 256323 | Ferrari Screw 5x16 - 256323 | $0.98 | Available, ships in 3-6 days |
| 9 | 262559 | Ferrari Clip - 262559 | $1.78 | Available, ships in 3-6 days |
| 10 | 324747 | Ferrari Plug - 324747 | $4.16 | Special order, ships in 7-14 days |
