Ferrari F80 — [MECHANICAL SYSTEM] - D.23 - HYDRAULIC BRAKE CONTROL PIPES -Not for RHD- (diagram 0073)

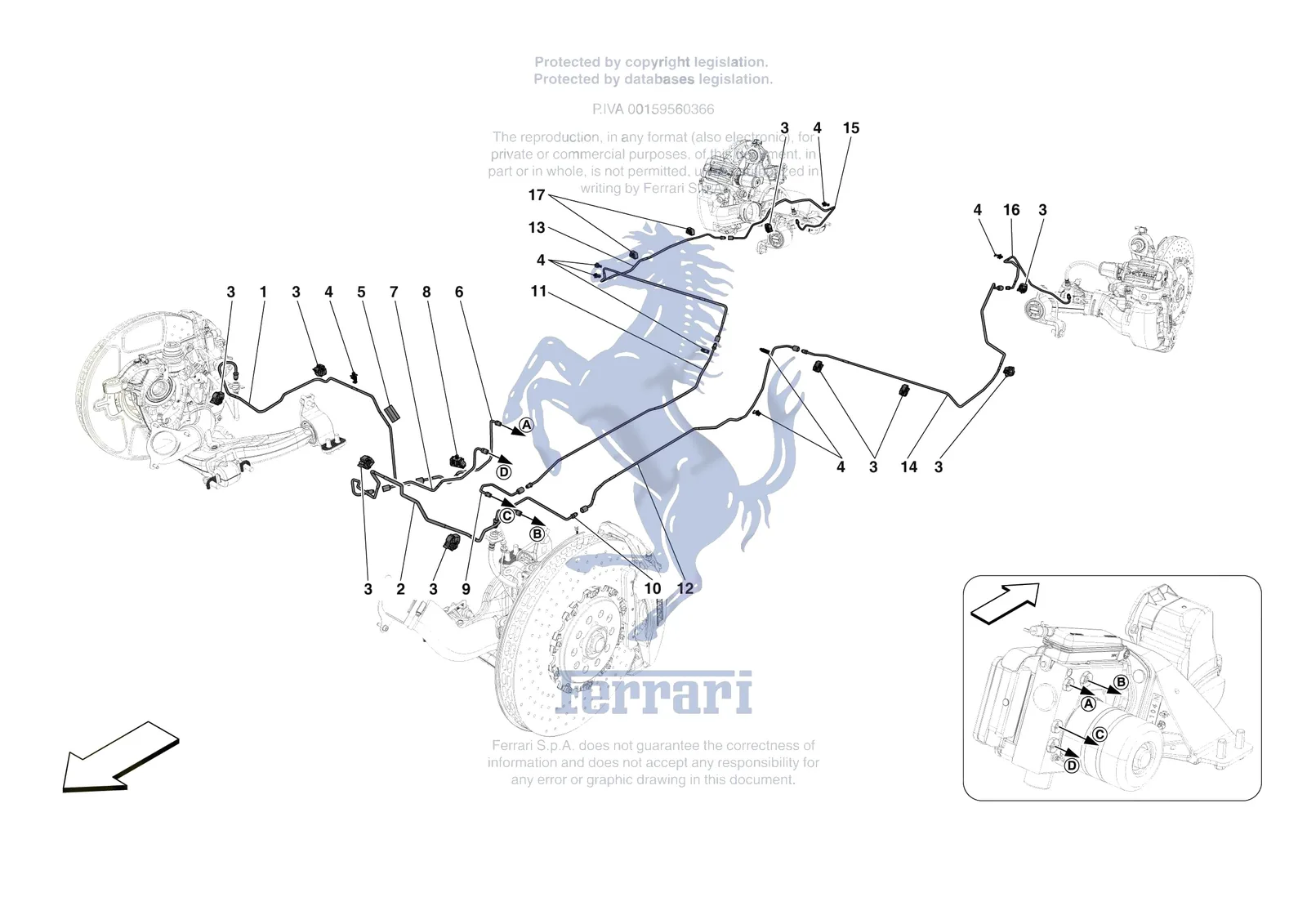

Exploded view of the [mechanical system] - d.23 - hydraulic brake control pipes -not for rhd- on the Ferrari F80, with 17 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari F80 [MECHANICAL SYSTEM] - D.23 - HYDRAULIC BRAKE CONTROL PIPES -Not for RHD- exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f80/0073.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 55035424 | Ferrari TUBO FRENO ANTERIORE DX - 55035424 | $128.01 | Special order, ships in 7-14 days |
| 2 | 55001409 | Ferrari TUBO FRENO ANTERIORE SX - 55001409 | $142.79 | Special order, ships in 7-14 days |
| 3 | 234284 | Ferrari Clip - 234284 | $1.23 | Available, ships in 3-6 days |
| 4 | 291408 | Ferrari Clip - 291408 | $0.34 | Special order, ships in 7-14 days |
| 5 | 262737 | Ferrari Rubber Retainer - 262737 | $10.06 | Special order, ships in 7-14 days |
| 6 | 55001410 | Ferrari TUBO FRENO ANT DX DA ONE-BOX A SEZ - 55001410 | $98.46 | Special order, ships in 7-14 days |
| 7 | 55001408 | Ferrari TUBO FRENO ANT SX DA ONE-BOX A SEZ - 55001408 | $81.23 | Special order, ships in 7-14 days |
| 8 | 312163 | Ferrari Clip - 312163 | $1.99 | Special order, ships in 7-14 days |
| 9 | 55001412 | Ferrari TUBO FRENO POST DX DA ONE-BOX A SEZ - 55001412 | $66.45 | Special order, ships in 7-14 days |
| 10 | 975639 | Ferrari TUBO FRENO POST SX DA ONE-BOX A SEZ - 975639 | $71.38 | Special order, ships in 7-14 days |
| 11 | 975638 | Ferrari TUBO FRENO SOTTOPIANALE DX - 975638 | $108.31 | Special order, ships in 7-14 days |
| 12 | 989016 | Ferrari TUBO FRENO SOTTOPIANALE SX - 989016 | $130.47 | Special order, ships in 7-14 days |
| 13 | 55008487 | Ferrari TUBO FRENO VANO MOT. POST. DX - 55008487 | $162.48 | Special order, ships in 7-14 days |
| 14 | 987915 | Ferrari TUBO FRENO VANO MOT. POST. SX - 987915 | $128.01 | Special order, ships in 7-14 days |
| 15 | 989832 | Ferrari TUBO FRENO A FLEX POST. DX - 989832 | $130.47 | Special order, ships in 7-14 days |
| 16 | 55017470 | Ferrari TUBO FRENO A FLEX. POST. SX - 55017470 | $115.69 | Special order, ships in 7-14 days |
| 17 | 294206 | Ferrari Clip - 294206 | $11.12 | Special order, ships in 7-14 days |
