Ferrari F80 — [MECHANICAL SYSTEM] - D.25.01 - FRONT SUSPENSION - SHOCK ABSORBERS (diagram 0076)

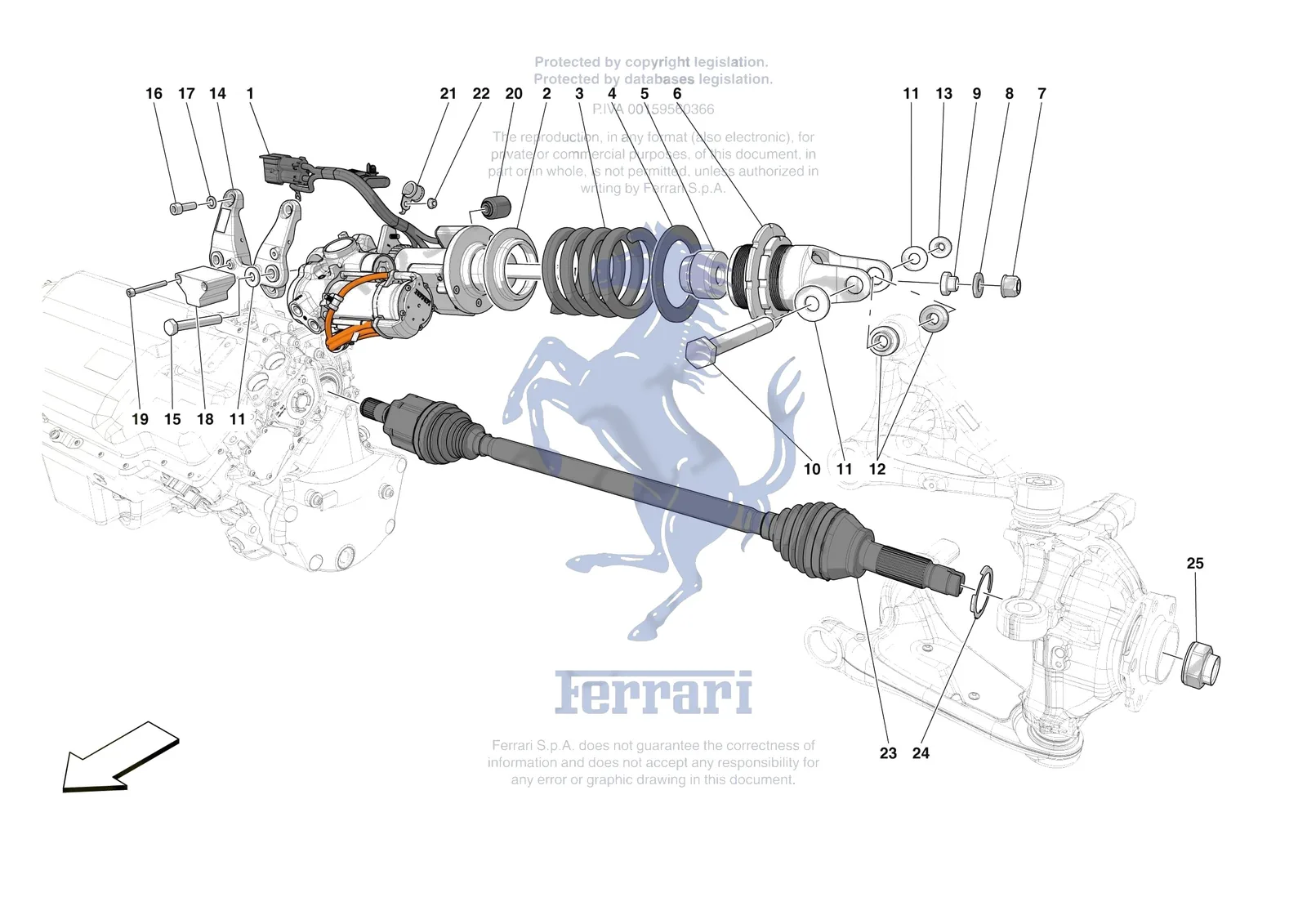

Exploded view of the [mechanical system] - d.25.01 - front suspension - shock absorbers on the Ferrari F80, with 27 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari F80 [MECHANICAL SYSTEM] - D.25.01 - FRONT SUSPENSION - SHOCK ABSORBERS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f80/0076.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 187814 | Ferrari Hub Nut - 187814 | Superseded | Order 203780 instead | |
| 749878 | Ferrari Nut - 749878 | Superseded | Order 220378 instead | |
| 818380 | Ferrari Ralla Speciale Per Semiasse - 818380 | Superseded | Order 939890 instead | |
| 1 | 999750 | Ferrari LH FRONT SHOCK ABSORBER - 999750 | Price on request | Contact us for price and availability |
| 1 | 999751 | Ferrari RH FRONT SHOCK ABSORBER - 999751 | Price on request | Contact us for price and availability |
| 2 | 293648 | Ferrari Lower Spring Spacer D.78-1 - 293648 | $15.28 | Special order, ships in 7-14 days |
| 3 | 958536 | Ferrari Front Suspension Spring - 958536 | $8,739.84 | Special order, ships in 7-14 days |
| 5 | 958091 | Ferrari Front Shock Absorber Bush - 958091 | $93.53 | Special order, ships in 7-14 days |
| 7 | 220378 | Ferrari Nut M12 - 220378 | $9.16 | Special order, ships in 7-14 days |
| 8 | 220377 | Ferrari Washer D.12.1 - 24 X 3 - 220377 | $14.84 | Special order, ships in 7-14 days |
| 9 | 220383 | Ferrari Bush - 220383 | $66.35 | Available, ships in 3-6 days |
| 10 | 15541634 | Ferrari SCREW - 15541634 | Price on request | Contact us for price and availability |
| 11 | 12646921 | Ferrari Washer - 12646921 | $0.92 | Available, ships in 3-6 days |
| 12 | 944481 | Ferrari Bush - 944481 | $29.52 | Special order, ships in 7-14 days |
| 13 | 255271 | Ferrari Nut M12 x 1.25 x - 255271 | $2.59 | Available, ships in 3-6 days |
| 14 | 55004655 | Ferrari SUPPORTO CHIUSURA AMMO CPL - 55004655 | $4,460.19 | Special order, ships in 7-14 days |
| 15 | 15541434 | Ferrari Screw 12x1.25x80 - 15541434 | $4.12 | Special order, ships in 7-14 days |
| 16 | 202484 | Ferrari SCREW - 202484 | Price on request | Contact us for price and availability |
| 17 | 12638624 | Ferrari Washer - 12638624 | $0.50 | Available, ships in 3-6 days |
| 18 | 55027078 | Ferrari Mass Damper - 55027078 | $369.30 | Special order, ships in 7-14 days |
| 19 | 14306034 | Ferrari Allen Screw M6 x 50 TCEI - 14306034 | $1.04 | Available, ships in 3-6 days |
| 20 | 55005908 | Ferrari Silentblock - 55005908 | $960.25 | Special order, ships in 7-14 days |
| 21 | 912852 | Ferrari Bracket - 912852 | $31.93 | Special order, ships in 7-14 days |
| 22 | 14059211 | Ferrari Flanged Nut - 14059211 | $0.13 | Available, ships in 3-6 days |
| 23 | 907308 | Ferrari Compl. Front AXLe Shaft - 907308 | $2,087.03 | Special order, ships in 7-14 days |
| 24 | 939890 | Ferrari Special Ring Bearing for Axle - 939890 | $29.52 | Special order, ships in 7-14 days |
| 25 | 203780 | Ferrari/Maserati Hub Nut - 203780 | $30.05 | In stock |
