Ferrari F80 — [MECHANICAL SYSTEM] - D.25.03 - FRONT SUSPENSION - CALIPERS AND DISCS (diagram 0078)

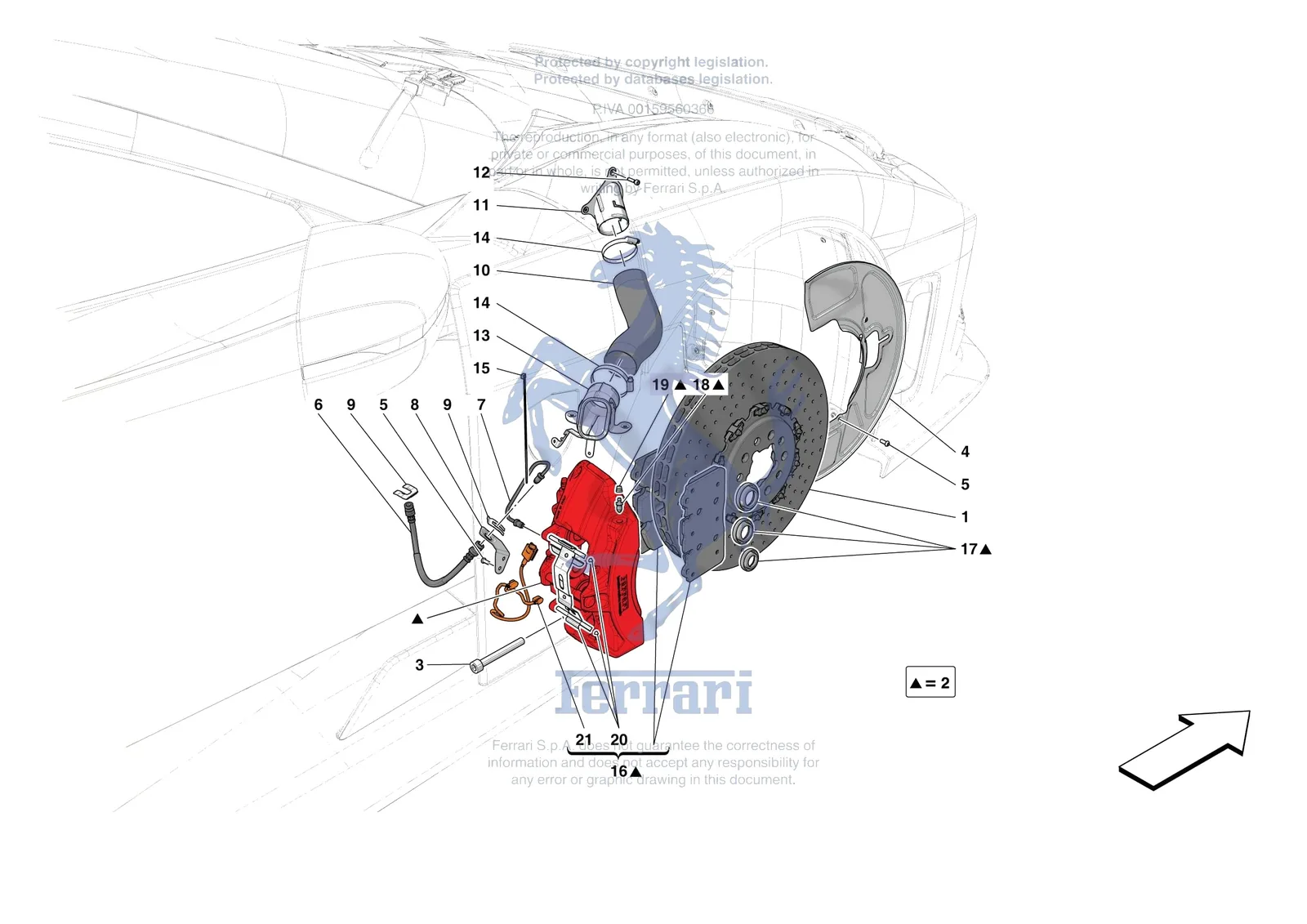

Exploded view of the [mechanical system] - d.25.03 - front suspension - calipers and discs on the Ferrari F80, with 46 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari F80 [MECHANICAL SYSTEM] - D.25.03 - FRONT SUSPENSION - CALIPERS AND DISCS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f80/0078.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14432221 | Ferrari Screw - 14432221 | Superseded | Order 231619 instead | |
| 190870 | Ferrari Screw 6x14 - 190870 | $4.10 | Special order, ships in 7-14 days | |
| 14432224 | Ferrari Screw M6 x 22 - 14432224 | Superseded | Order 231619 instead | |
| 1 | 981550 | Ferrari BRAKE DISC - 981550 | $24,451.00 | Special order, ships in 7-14 days |
| 2 | 994194 | Ferrari COMPLETE L.H. FRONT CALIPER - 994194 | Price on request | Contact us for price and availability |
| 2 | 994196 | Ferrari COMPLETE L.H. FRONT CALIPER - 994196 | Price on request | Contact us for price and availability |
| 2 | 994198 | Ferrari COMPLETE L.H. FRONT CALIPER - 994198 | Price on request | Contact us for price and availability |
| 2 | 994200 | Ferrari COMPLETE L.H. FRONT CALIPER - 994200 | Price on request | Contact us for price and availability |
| 2 | 994202 | Ferrari COMPLETE L.H. FRONT CALIPER - 994202 | Price on request | Contact us for price and availability |
| 2 | 994204 | Ferrari COMPLETE L.H. FRONT CALIPER - 994204 | Price on request | Contact us for price and availability |
| 2 | 994206 | Ferrari COMPLETE L.H. FRONT CALIPER - 994206 | Price on request | Contact us for price and availability |
| 2 | 994209 | Ferrari COMPLETE L.H. FRONT CALIPER - 994209 | Price on request | Contact us for price and availability |
| 2 | 994211 | Ferrari COMPLETE L.H. FRONT CALIPER - 994211 | Price on request | Contact us for price and availability |
| 2 | 994195 | Ferrari COMPLETE RH FRONT CALIPER - 994195 | Price on request | Contact us for price and availability |
| 2 | 994197 | Ferrari COMPLETE RH FRONT CALIPER - 994197 | Price on request | Contact us for price and availability |
| 2 | 994199 | Ferrari COMPLETE RH FRONT CALIPER - 994199 | Price on request | Contact us for price and availability |
| 2 | 994201 | Ferrari COMPLETE RH FRONT CALIPER - 994201 | Price on request | Contact us for price and availability |
| 2 | 994203 | Ferrari COMPLETE RH FRONT CALIPER - 994203 | Price on request | Contact us for price and availability |
| 2 | 994205 | Ferrari COMPLETE RH FRONT CALIPER - 994205 | Price on request | Contact us for price and availability |
| 2 | 994207 | Ferrari COMPLETE RH FRONT CALIPER - 994207 | Price on request | Contact us for price and availability |
| 2 | 994210 | Ferrari COMPLETE RH FRONT CALIPER - 994210 | Price on request | Contact us for price and availability |
| 2 | 994212 | Ferrari COMPLETE RH FRONT CALIPER - 994212 | Price on request | Contact us for price and availability |
| 3 | 195167 | Ferrari Screw TCEI M12 x 1.5 x 95 - 195167 | $34.94 | Available, ships in 3-6 days |
| 4 | 954863 | Ferrari FRONT LH DISC SHIELD - 954863 | Price on request | Contact us for price and availability |
| 4 | 954864 | Ferrari FRONT RH DISC SHIELD - 954864 | Price on request | Contact us for price and availability |
| 5 | 250657 | Ferrari Screw M6 x 14 TBTX - 250657 | $13.36 | Available, ships in 3-6 days |
| 6 | 977797 | Ferrari Brake Hose 330 mm - 977797 | $100.78 | Available, ships in 3-6 days |
| 7 | 992075 | Ferrari TUBO FRENO DA PINZA A FLEX. ANT. DX - 992075 | $76.30 | Special order, ships in 7-14 days |
| 7 | 992073 | Ferrari TUBO FRENO DA PINZA A FLEX. ANT. SX - 992073 | $76.30 | Special order, ships in 7-14 days |
| 8 | 944891 | Ferrari LH FRONT REMOVABLE BRACKET - 944891 | Price on request | Contact us for price and availability |
| 8 | 944906 | Ferrari RH FRONT REMOVABLE BRACKET - 944906 | Price on request | Contact us for price and availability |
| 9 | 326837 | Ferrari Clip - 326837 | $4.77 | Available, ships in 3-6 days |
| 10 | 943387 | Ferrari Pipe - 943387 | $204.34 | Special order, ships in 7-14 days |
| 11 | 55000978 | Ferrari CONVOGLIATORE LATO TELAIO ANT DX - 55000978 | $369.30 | Special order, ships in 7-14 days |
| 11 | 55000977 | Ferrari CONVOGLIATORE LATO TELAIO ANT SX - 55000977 | $369.30 | Special order, ships in 7-14 days |
| 12 | 231619 | Ferrari Screw M6 x 22 - 231619 | $0.54 | Available, ships in 3-6 days |
| 13 | 55003553 | Ferrari CONVOGLIATORE ARIA PINZA DX - 55003553 | $664.78 | Special order, ships in 7-14 days |
| 13 | 55003551 | Ferrari CONVOGLIATORE ARIA PINZA SX - 55003551 | $664.78 | Special order, ships in 7-14 days |
| 14 | 296784 | Ferrari Hose Clamp 50 to 70mm - 296784 | $41.55 | Special order, ships in 7-14 days |
| 15 | 145854 | Ferrari Cable tie 200mm - 145854 | $0.57 | Available, ships in 3-6 days |
| 16 | 70005999 | Ferrari Set Of Front Pads With Sprin - 70005999 | $5,982.76 | Special order, ships in 7-14 days |
| 17 | 70003492 | Ferrari Front Brake Caliper Dust Seal Kit - 70003492 | $184.38 | Special order, ships in 7-14 days |
| 18 | 215665 | Ferrari Bleed Nipple Valve - 215665 | $78.66 | Available, ships in 3-6 days |
| 19 | 215666 | Ferrari Cap For Bleed Nipple - 215666 | $51.62 | Available, ships in 3-6 days |
| 20 | 70008418 | Ferrari SPRING AND PIN KIT - 70008418 | Price on request | Contact us for price and availability |
| 21 | 257018 | Ferrari FRONT BRAKE PAD WEAR INDICATOR - 257018 | Price on request | Contact us for price and availability |
