Ferrari F80 — [MECHANICAL SYSTEM] - D.27.04 - REAR SUSPENSION - COOLING (diagram 0084)

Exploded view of the [mechanical system] - d.27.04 - rear suspension - cooling on the Ferrari F80, with 15 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

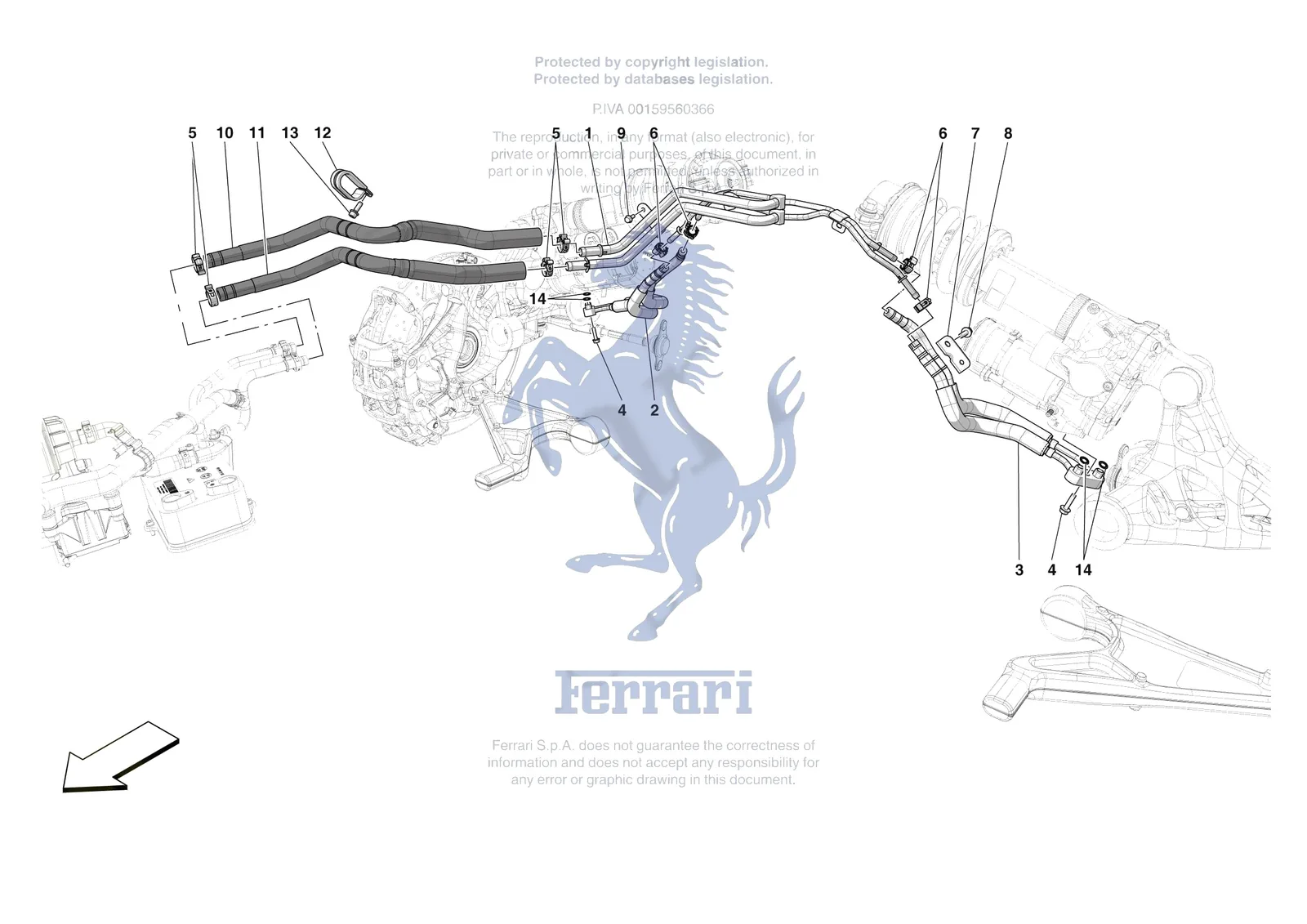

Ferrari F80 [MECHANICAL SYSTEM] - D.27.04 - REAR SUSPENSION - COOLING exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
14433121Ferrari Screw - 14433121SupersededOrder 231617 instead
1958496Ferrari Rear Delivery/Return Pipes - 958496$1,354.22Special order, ships in 7-14 days
255001728Ferrari FLEX. RAFFR. SOSP. POST. DX - 55001728$812.51Special order, ships in 7-14 days
355001727Ferrari FLEX. RAFFR. SOSP. POST. SX - 55001727$812.51Special order, ships in 7-14 days
416286224Ferrari Screw M6x25 - 16286224$4.77Special order, ships in 7-14 days
5971138Ferrari Collar - 971138$6.10Special order, ships in 7-14 days
6868787Ferrari Collar - 868787$5.86Special order, ships in 7-14 days
7953756Ferrari REAR SUSPENSION MOUNTING BRACKET - 953756Price on requestContact us for price and availability
881923100Ferrari Screw - 81923100$1.15Available, ships in 3-6 days
916281827Ferrari Screw 5x14 - 16281827$0.46Special order, ships in 7-14 days
10742923Ferrari Rear Return Sleeve - 742923$320.06Special order, ships in 7-14 days
11958498Ferrari Rear Delivery Sleeve - 958498$418.56Special order, ships in 7-14 days
12307026Ferrari Bracket With Sheath - 307026$81.23Special order, ships in 7-14 days
13231617Ferrari Screw M6 x 18 TCEI - 231617SupersededOrder 14433124 instead
14841272Ferrari Gasket - 841272$15.51Special order, ships in 7-14 days
