Ferrari F80 — [VEHICLE TRIM] - E.2 - LATERAL OUTER BODYSHELL (diagram 0101)

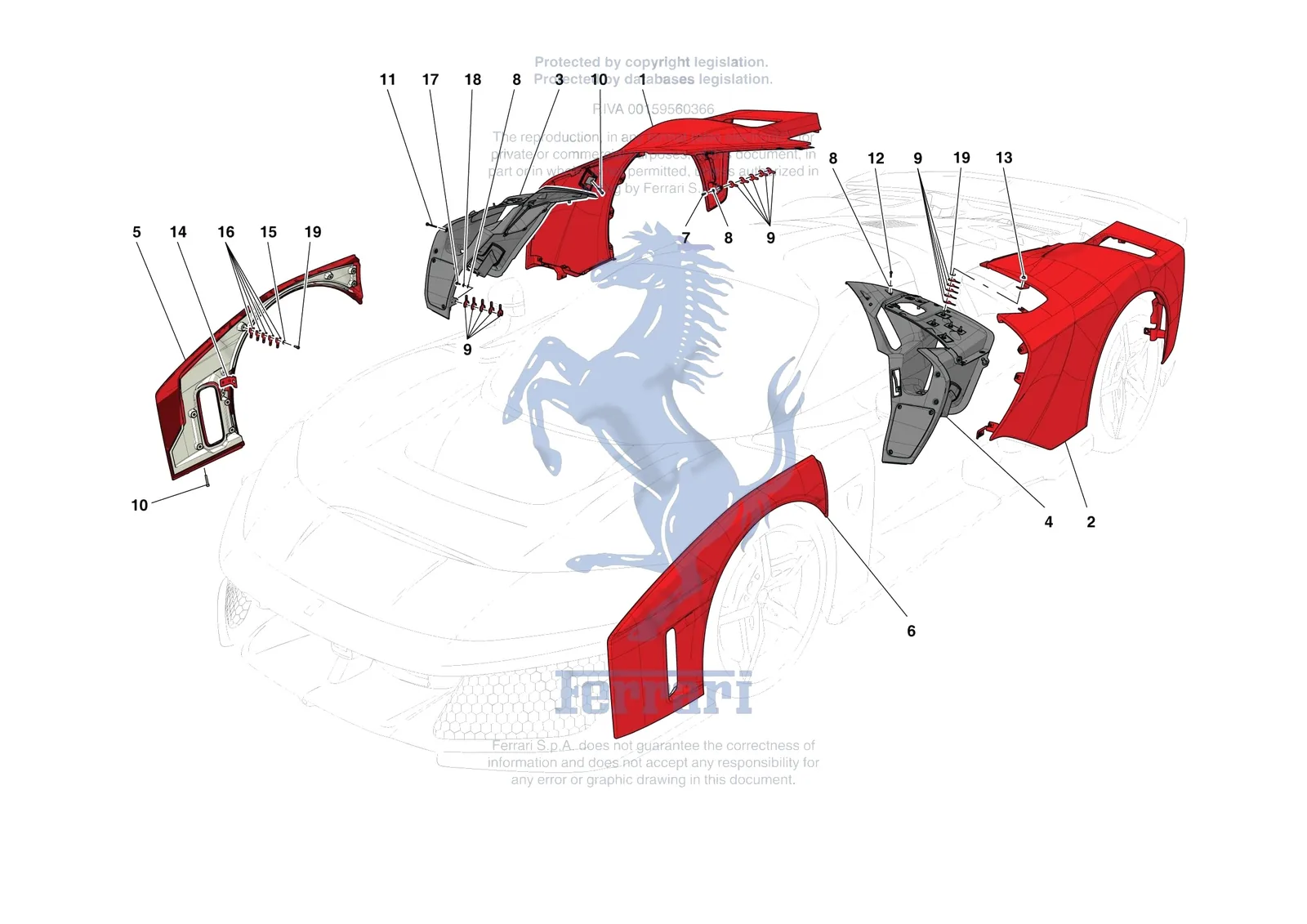

Exploded view of the [vehicle trim] - e.2 - lateral outer bodyshell on the Ferrari F80, with 22 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari F80 [VEHICLE TRIM] - E.2 - LATERAL OUTER BODYSHELL exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f80/0101.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 900885 | Ferrari Adjustment Shim - 900885 | Superseded | Order 87583800 instead | |
| 900889 | Ferrari Adjustment Shim - 900889 | Superseded | Order 87583700 instead | |
| 86149600 | Ferrari Screw - 86149600 | Superseded | Order 14305326 instead | |
| 921747 | Ferrari Spess.Curvo Di Regolaz.A For - 921747 | Superseded | Order 87583800 instead | |
| 921748 | Ferrari Spess.Curvo Di Regolaz.A For - 921748 | $12.29 | Special order, ships in 7-14 days | |
| 12640606 | Ferrari Washer - 12640606 | Superseded | Order 12640678 instead | |
| 12640608 | Ferrari Washer - 12640608 | Superseded | Order 12640678 instead | |
| 12640677 | Ferrari Washer - 12640677 | Superseded | Order 12640678 instead | |
| 7 | 14305326 | Ferrari Screw - 14305326 | $2.38 | Special order, ships in 7-14 days |
| 8 | 85882600 | Ferrari Washer - 85882600 | $0.17 | Available, ships in 3-6 days |
| 8 | 12644478 | Ferrari Washer D. 6.45 - 15 x 1 - 12644478 | Superseded | Order 85882600 instead |
| 9 | 88187400 | Ferrari Spessore Di Regolaz.Ant. Sp. - 88187400 | $8.82 | Special order, ships in 7-14 days |
| 10 | 14305834 | Ferrari Screw 6X40 - 14305834 | $1.36 | Available, ships in 3-6 days |
| 11 | 919906 | Ferrari Screw - 919906 | $12.67 | Special order, ships in 7-14 days |
| 12 | 16285211 | Ferrari Screw M5 x 20 - 16285211 | $0.50 | Available, ships in 3-6 days |
| 13 | 13046114 | Ferrari Flanged Nut - 13046114 | $0.31 | Available, ships in 3-6 days |
| 14 | 838245 | Ferrari LH BRACKET FASTENING LID LIP TO CHASSIS - 838245 | Price on request | Contact us for price and availability |
| 16 | 87583800 | Ferrari Adjuster Shim 1.0mm - 87583800 | $3.68 | Special order, ships in 7-14 days |
| 16 | 87583700 | Ferrari Fork Adjuster Shim - 87583700 | $3.91 | Special order, ships in 7-14 days |
| 17 | 16285227 | Ferrari Screw M5 x 20 - 16285227 | $0.59 | Available, ships in 3-6 days |
| 18 | 14447078 | Ferrari Washer D. 5.5 - 15 x 1 - 14447078 | $0.54 | Special order, ships in 7-14 days |
| 19 | 12640678 | Ferrari Washer 6.15x25x2 - 12640678 | $3.47 | Available, ships in 3-6 days |
