Ferrari F80 — [VEHICLE TRIM] - E.5 - FRONT SUBSTRUCTURE (diagram 0104)

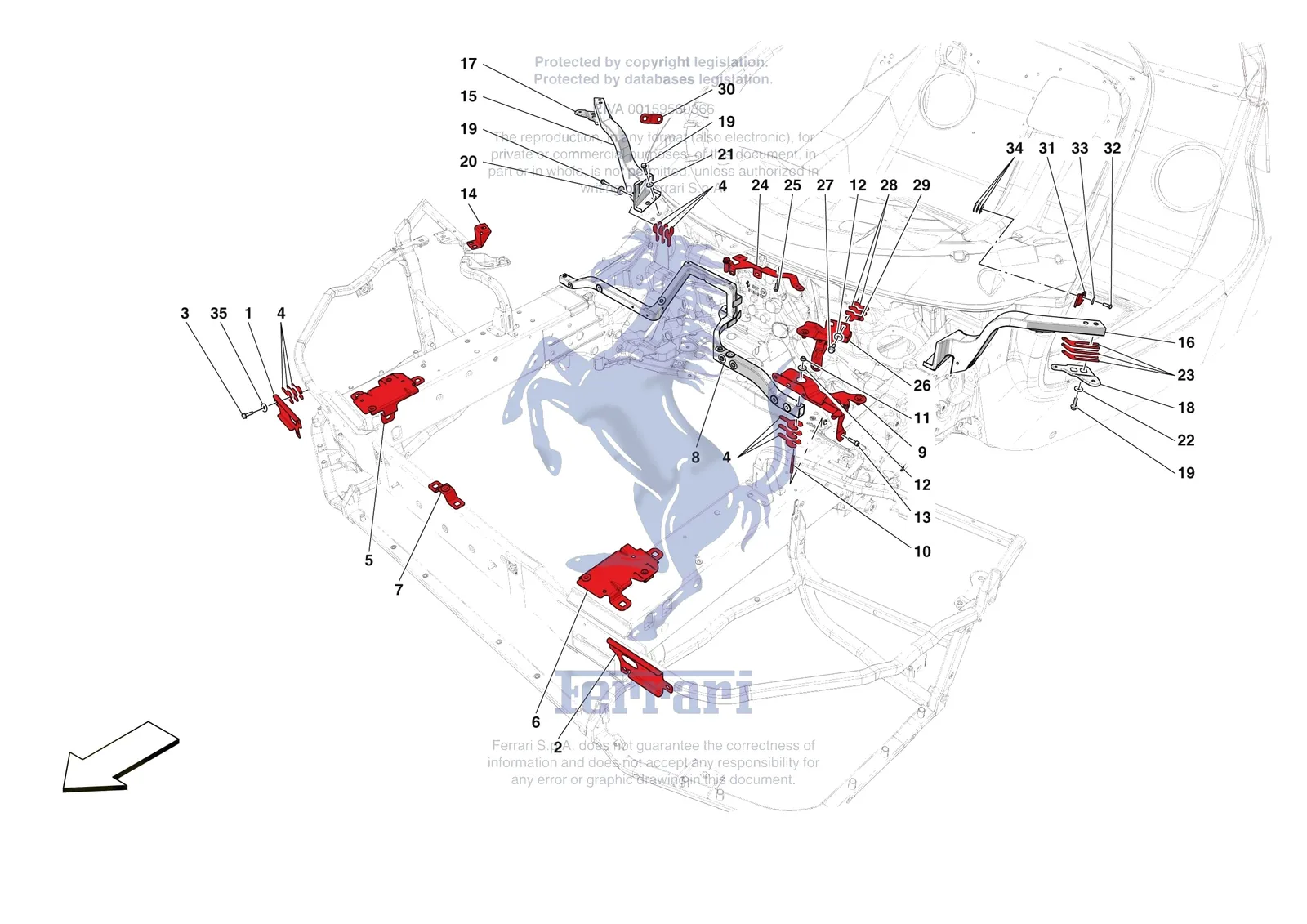

Exploded view of the [vehicle trim] - e.5 - front substructure on the Ferrari F80, with 41 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari F80 [VEHICLE TRIM] - E.5 - FRONT SUBSTRUCTURE exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f80/0104.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 900885 | Ferrari Adjustment Shim - 900885 | Superseded | Order 87583800 instead | |
| 900889 | Ferrari Adjustment Shim - 900889 | Superseded | Order 87583700 instead | |
| 86149600 | Ferrari Screw - 86149600 | Superseded | Order 14305326 instead | |
| 921747 | Ferrari Spess.Curvo Di Regolaz.A For - 921747 | Superseded | Order 87583800 instead | |
| 921748 | Ferrari Spess.Curvo Di Regolaz.A For - 921748 | $12.29 | Special order, ships in 7-14 days | |
| 12643711 | Ferrari Washer - 12643711 | Superseded | Order 12643724 instead | |
| 12643721 | Ferrari Washer - 12643721 | Superseded | Order 12643724 instead | |
| 14499301 | Ferrari Washer - 14499301 | Superseded | Order 12643724 instead | |
| 86062700 | Ferrari Washer - 86062700 | Price on request | Contact us for price and availability | |
| 1 | 748841 | Ferrari RH BRACKET - 748841 | Price on request | Contact us for price and availability |
| 2 | 748792 | Ferrari LH BRACKET - 748792 | Price on request | Contact us for price and availability |
| 3 | 16286121 | Ferrari Screw M6 x 20 - 16286121 | $1.23 | Available, ships in 3-6 days |
| 4 | 88187400 | Ferrari Spessore Di Regolaz.Ant. Sp. - 88187400 | $8.82 | Special order, ships in 7-14 days |
| 5 | 994187 | Ferrari RH FRONT LID BRACKET - 994187 | Price on request | Contact us for price and availability |
| 6 | 994185 | Ferrari LH FRONT LID BRACKET - 994185 | Price on request | Contact us for price and availability |
| 7 | 55019933 | Ferrari COMPL. CENTRE BRACKET OF FRONT LID - 55019933 | Price on request | Contact us for price and availability |
| 9 | 55000962 | Ferrari COMPL. BRACKET ON WIPER TRELLIS - 55000962 | Price on request | Contact us for price and availability |
| 10 | 55016850 | Ferrari Threaded Rod - 55016850 | $45.94 | Special order, ships in 7-14 days |
| 11 | 13046011 | Ferrari Flanged Nut - 13046011 | $0.73 | Available, ships in 3-6 days |
| 11 | 13046012 | Ferrari Nut - 13046012 | Superseded | Order 13046011 instead |
| 12 | 12643727 | Ferrari Shim - 12643727 | $0.38 | Available, ships in 3-6 days |
| 13 | 14305326 | Ferrari Screw - 14305326 | $2.38 | Special order, ships in 7-14 days |
| 14 | 999423 | Ferrari REAR BRACKET OF FRONT LID - 999423 | Price on request | Contact us for price and availability |
| 17 | 55009280 | Ferrari REAR BRACKET OF RH LID SUBSTRUCTURE - 55009280 | Price on request | Contact us for price and availability |
| 18 | 55008919 | Ferrari REAR BRACKET OF LH LID SUBSTRUCTURE - 55008919 | Price on request | Contact us for price and availability |
| 19 | 16286224 | Ferrari Screw M6x25 - 16286224 | $4.77 | Special order, ships in 7-14 days |
| 20 | 86297600 | Ferrari Washer - 86297600 | Price on request | Contact us for price and availability |
| 21 | 302843 | Ferrari Washer - 302843 | $5.04 | Special order, ships in 7-14 days |
| 22 | 12643724 | Ferrari/Maserati Washer - 12643724 | $0.20 | In stock |
| 23 | 852947 | Ferrari Spessore 1Mm - 852947 | $5.44 | Special order, ships in 7-14 days |
| 24 | 993523 | Ferrari COMPL. SUSPENSION CABLE BRACKET - 993523 | Price on request | Contact us for price and availability |
| 25 | 16281824 | Ferrari Screw - 16281824 | $0.82 | Available, ships in 3-6 days |
| 26 | 55003965 | Ferrari COMPL. WIPER MOUNTING BRACKET - 55003965 | Price on request | Contact us for price and availability |
| 27 | 16286127 | Ferrari Screw 6x20 - 16286127 | $0.82 | Available, ships in 3-6 days |
| 28 | 87583800 | Ferrari Adjuster Shim 1.0mm - 87583800 | $3.68 | Special order, ships in 7-14 days |
| 29 | 87583700 | Ferrari Fork Adjuster Shim - 87583700 | $3.91 | Special order, ships in 7-14 days |
| 30 | 750440 | Ferrari RH REAR LID BRACKET - 750440 | Price on request | Contact us for price and availability |
| 31 | 750439 | Ferrari LH REAR LID BRACKET - 750439 | Price on request | Contact us for price and availability |
| 32 | 86001300 | Ferrari Screw - 86001300 | $4.14 | Special order, ships in 7-14 days |
| 33 | 12647678 | Ferrari Washer D1 6.15- - 12647678 | $0.84 | Special order, ships in 7-14 days |
| 34 | 298365 | Ferrari Split Washer - 298365 | $14.62 | Special order, ships in 7-14 days |
