Ferrari F80 — [VEHICLE TRIM] - E.08.01 - FRONT DOOR SUBSTRUCTURE (diagram 0107)

Exploded view of the [vehicle trim] - e.08.01 - front door substructure on the Ferrari F80, with 28 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

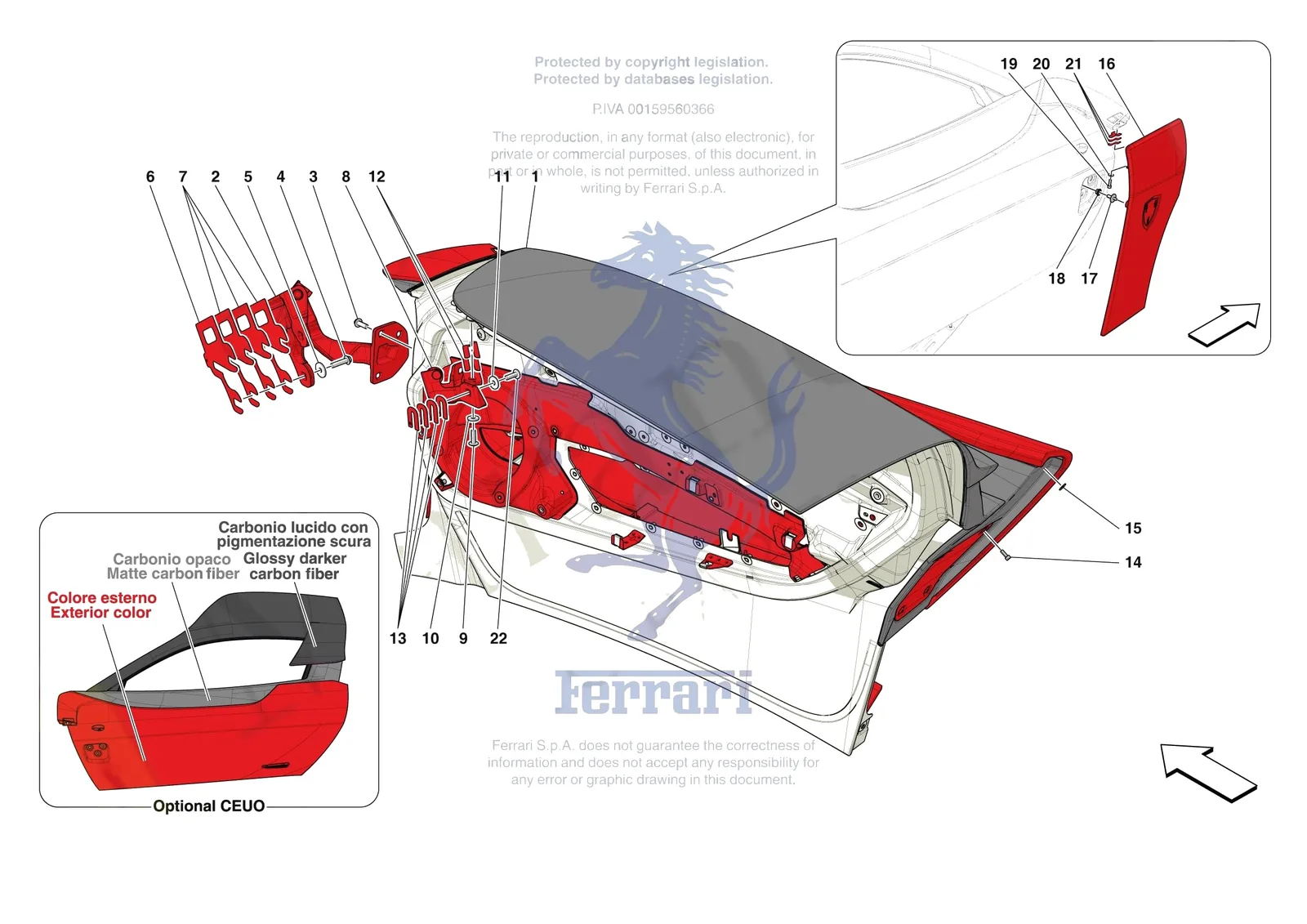

Ferrari F80 [VEHICLE TRIM] - E.08.01 - FRONT DOOR SUBSTRUCTURE exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
900885Ferrari Adjustment Shim - 900885SupersededOrder 87583800 instead
86149600Ferrari Screw - 86149600SupersededOrder 14305326 instead
921747Ferrari Spess.Curvo Di Regolaz.A For - 921747SupersededOrder 87583800 instead
12638108Ferrari Washer - 12638108SupersededOrder 12638178 instead
12638177Ferrari Washer - 12638177SupersededOrder 12638178 instead
12644301Ferrari Washer - 12644301$1.36Available, ships in 3-6 days
61276300Ferrari Washer - 61276300SupersededOrder 12638178 instead
2996353Ferrari COMPL. LOWER LH DOOR HINGE - 996353$3,266.58Special order, ships in 7-14 days
2996369Ferrari COMPL. LOWER RH DOOR HINGE - 996369$3,266.58Special order, ships in 7-14 days
3298805Ferrari Titanium Screw - 298805$125.54Special order, ships in 7-14 days
4298806Ferrari Titanium Screw - 298806$98.46Special order, ships in 7-14 days
512644364Ferrari Washer D.10.20-35x - 12644364$1.53Available, ships in 3-6 days
655003398Ferrari SHIM - 55003398Price on requestContact us for price and availability
755003396Ferrari SHIM - 55003396Price on requestContact us for price and availability
855003426Ferrari COMPLETE UPPER LH DOOR HINGE - 55003426$1,280.35Special order, ships in 7-14 days
855003472Ferrari COMPLETE UPPER RH DOOR HINGE - 55003472$1,280.35Special order, ships in 7-14 days
985629300Ferrari Screw M6 x 20 - 85629300$1.17Available, ships in 3-6 days
10808847Ferrari Washer - 808847$6.32Special order, ships in 7-14 days
1112643727Ferrari Shim - 12643727$0.38Available, ships in 3-6 days
12810621Ferrari SHIM - 810621Price on requestContact us for price and availability
1355036357Ferrari SHIM - 55036357Price on requestContact us for price and availability
1512638178Ferrari Washer 5.45-14x1 - 12638178$0.13Available, ships in 3-6 days
1755005213Ferrari SCREW - 55005213Price on requestContact us for price and availability
1813046229Ferrari NUT - 13046229Price on requestContact us for price and availability
1914305326Ferrari Screw - 14305326$2.38Special order, ships in 7-14 days
2012644478Ferrari Washer D. 6.45 - 15 x 1 - 12644478SupersededOrder 85882600 instead
2187583800Ferrari Adjuster Shim 1.0mm - 87583800$3.68Special order, ships in 7-14 days
22242280Ferrari SCREW - 242280Price on requestContact us for price and availability
