Ferrari F80 — [VEHICLE TRIM] - E.9 - FRONT LID SUBSTRUCTURE (diagram 0109)

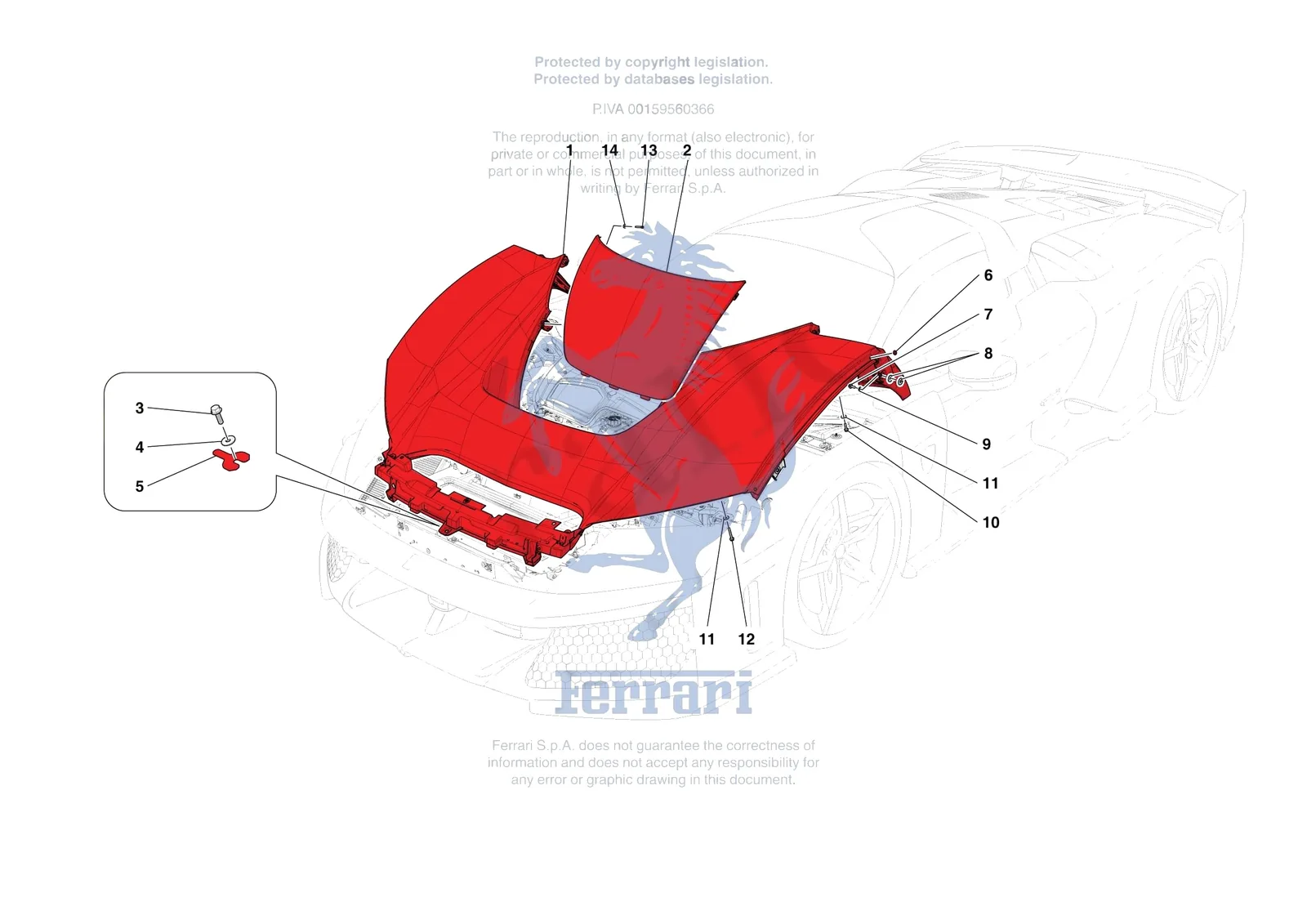

Exploded view of the [vehicle trim] - e.9 - front lid substructure on the Ferrari F80, with 19 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari F80 [VEHICLE TRIM] - E.9 - FRONT LID SUBSTRUCTURE exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f80/0109.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 86149600 | Ferrari Screw - 86149600 | Superseded | Order 14305326 instead | |
| 12638108 | Ferrari Washer - 12638108 | Superseded | Order 12638178 instead | |
| 12638177 | Ferrari Washer - 12638177 | Superseded | Order 12638178 instead | |
| 12643711 | Ferrari Washer - 12643711 | Superseded | Order 12643724 instead | |
| 12643721 | Ferrari Washer - 12643721 | Superseded | Order 12643724 instead | |
| 14499301 | Ferrari Washer - 14499301 | Superseded | Order 12643724 instead | |
| 61276300 | Ferrari Washer - 61276300 | Superseded | Order 12638178 instead | |
| 3 | 16286121 | Ferrari Screw M6 x 20 - 16286121 | $1.23 | Available, ships in 3-6 days |
| 4 | 12643724 | Ferrari/Maserati Washer - 12643724 | $0.20 | In stock |
| 5 | 88187400 | Ferrari Spessore Di Regolaz.Ant. Sp. - 88187400 | $8.82 | Special order, ships in 7-14 days |
| 6 | 14621887 | Ferrari Cover - 14621887 | $3.26 | Special order, ships in 7-14 days |
| 7 | 14305326 | Ferrari Screw - 14305326 | $2.38 | Special order, ships in 7-14 days |
| 8 | 298365 | Ferrari Split Washer - 298365 | $14.62 | Special order, ships in 7-14 days |
| 9 | 12644478 | Ferrari Washer D. 6.45 - 15 x 1 - 12644478 | Superseded | Order 85882600 instead |
| 10 | 16286224 | Ferrari Screw M6x25 - 16286224 | $4.77 | Special order, ships in 7-14 days |
| 11 | 12643701 | Ferrari Flat Washer - 12643701 | $0.12 | Available, ships in 3-6 days |
| 12 | 791263 | Ferrari Flanged Screw M6 x 45 - 791263 | $0.82 | Special order, ships in 7-14 days |
| 13 | 301785 | Ferrari Screw 6x20 - 301785 | $1.36 | Available, ships in 3-6 days |
| 14 | 12638178 | Ferrari Washer 5.45-14x1 - 12638178 | $0.13 | Available, ships in 3-6 days |
