Ferrari F80 — [VEHICLE TRIM] - E.18 - REAR WHEELHOUSE (diagram 0121)

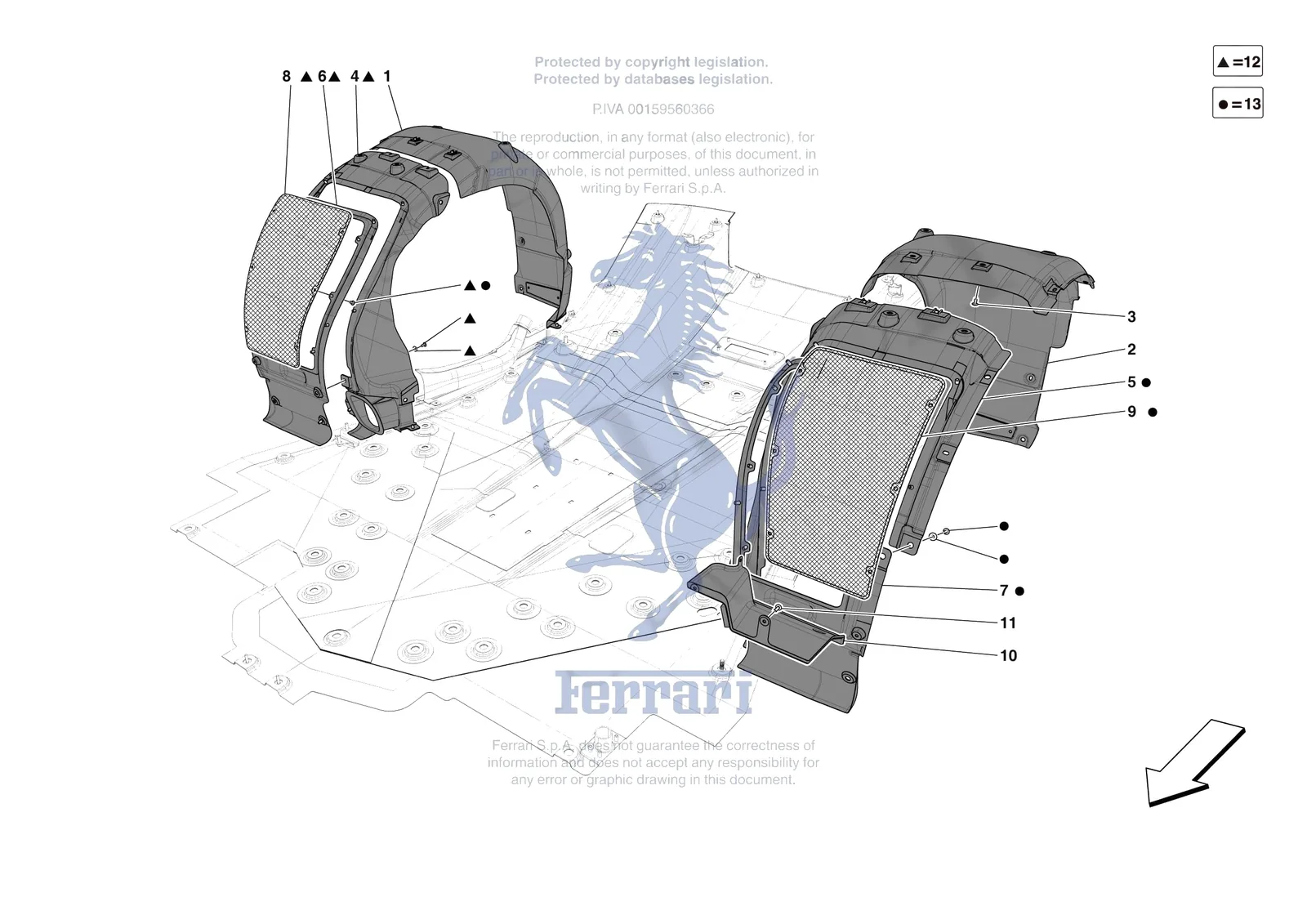

Exploded view of the [vehicle trim] - e.18 - rear wheelhouse on the Ferrari F80, with 9 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari F80 [VEHICLE TRIM] - E.18 - REAR WHEELHOUSE exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f80/0121.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 81911200 | Ferrari Screw - 81911200 | Superseded | Order 85692200 instead | |
| 68176300 | Ferrari Screw 5x12 - 68176300 | Superseded | Order 85692200 instead | |
| 1 | 55004959 | Ferrari Compl. Shield For Rear Part - 55004959 | $10,097.77 | Contact us to order |
| 2 | 55004955 | Ferrari Compl. Shield For Rear Part - 55004955 | $10,097.77 | Contact us to order |
| 3 | 85692200 | Ferrari SCREW M5 x 12 - 85692200 | $0.65 | Available, ships in 3-6 days |
| 10 | 55001302 | Ferrari LH REAR WHEELHOUSE WINGLET - 55001302 | $1,718.85 | Special order, ships in 7-14 days |
| 11 | 85833900 | Ferrari Screw M5 x 16 TBFTX - 85833900 | $0.65 | Available, ships in 3-6 days |
| 12 | 55004941 | Ferrari SHIELD FOR FRONT PART OF RH REAR WHEEL BAY - 55004941 | Price on request | Special order, ships in 7-14 days |
| 13 | 55004935 | Ferrari SHIELD FOR FRONT PART OF LH REAR WHEEL BAY - 55004935 | Price on request | Special order, ships in 7-14 days |
