Ferrari F80 — [VEHICLE TRIM] - E.22 - FRONT AIR INTAKES (diagram 0125)

Exploded view of the [vehicle trim] - e.22 - front air intakes on the Ferrari F80, with 16 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

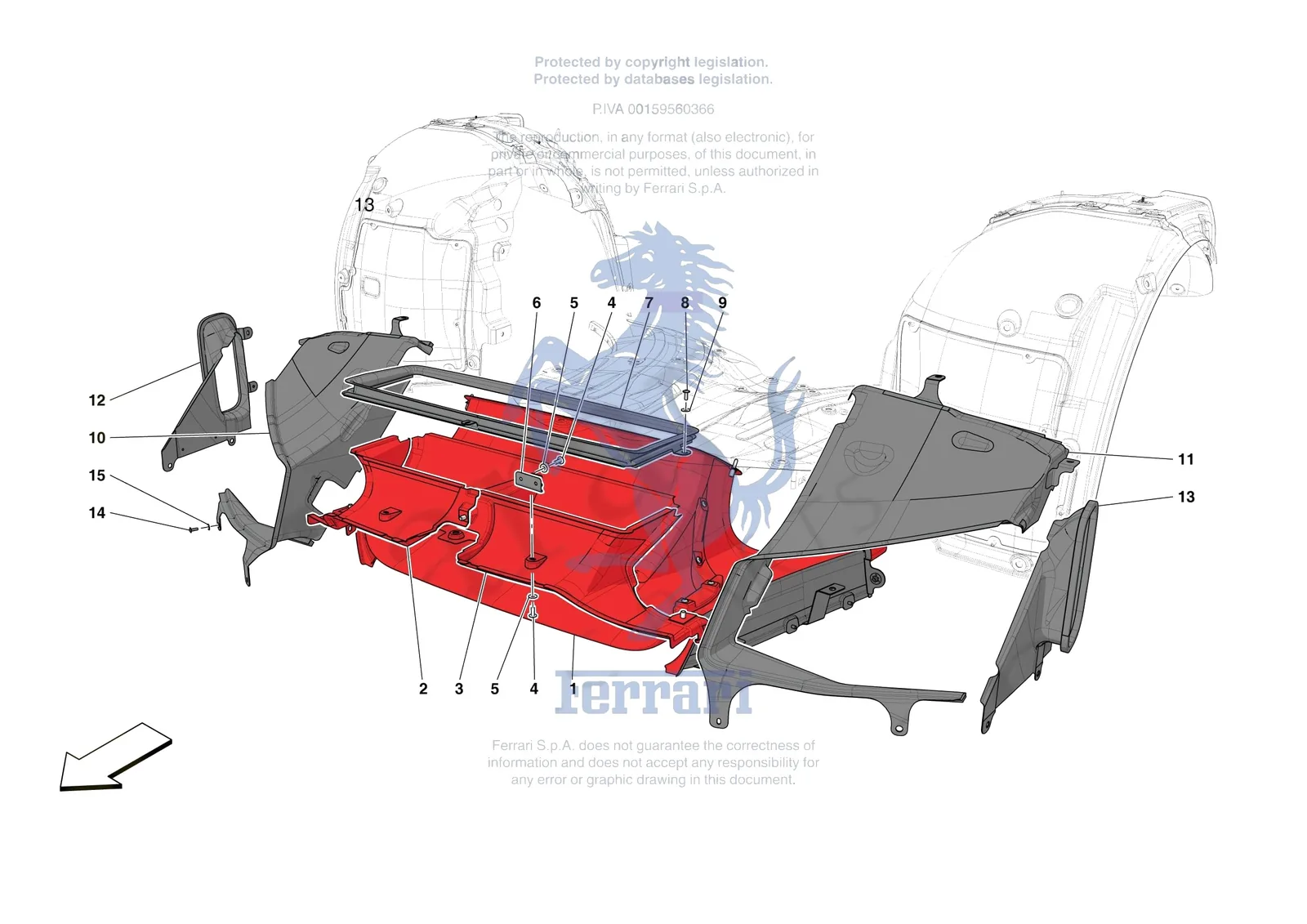

Ferrari F80 [VEHICLE TRIM] - E.22 - FRONT AIR INTAKES exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
11566224Ferrari Screw 5x14 - 11566224$0.77Available, ships in 3-6 days
12638108Ferrari Washer - 12638108SupersededOrder 12638178 instead
12638177Ferrari Washer - 12638177SupersededOrder 12638178 instead
61276300Ferrari Washer - 61276300SupersededOrder 12638178 instead
4996106Ferrari Screw - 996106$1.30Special order, ships in 7-14 days
512644478Ferrari Washer D. 6.45 - 15 x 1 - 12644478SupersededOrder 85882600 instead
655005861Ferrari COMPL. DUCT FASTENER BRACKET - 55005861Price on requestSpecial order, ships in 7-14 days
7968075Ferrari Centre Grille Duct - 968075$2,986.26Special order, ships in 7-14 days
885833700Ferrari SCREW - 85833700$0.65Available, ships in 3-6 days
914447078Ferrari Washer D. 5.5 - 15 x 1 - 14447078$0.54Special order, ships in 7-14 days
1055031930Ferrari COMPL. RH FRONT DUCT - 55031930Price on requestSpecial order, ships in 7-14 days
1155031929Ferrari Compl. LH Front Duct - 55031929$7,856.16Special order, ships in 7-14 days
1255031904Ferrari COMPL. RH LATERAL AIR DUCT - 55031904Price on requestSpecial order, ships in 7-14 days
1355031902Ferrari COMPL. LH LATERAL AIR DUCT - 55031902Price on requestSpecial order, ships in 7-14 days
1485833900Ferrari Screw M5 x 16 TBFTX - 85833900$0.65Available, ships in 3-6 days
1512638178Ferrari Washer 5.45-14x1 - 12638178$0.13Available, ships in 3-6 days
