Ferrari F80 — [VEHICLE TRIM] - E.29.03 - FRONT DOORS - OPENING MECHANISMS AND HINGES (diagram 0134)
Exploded view of the [vehicle trim] - e.29.03 - front doors - opening mechanisms and hinges on the Ferrari F80, with 40 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

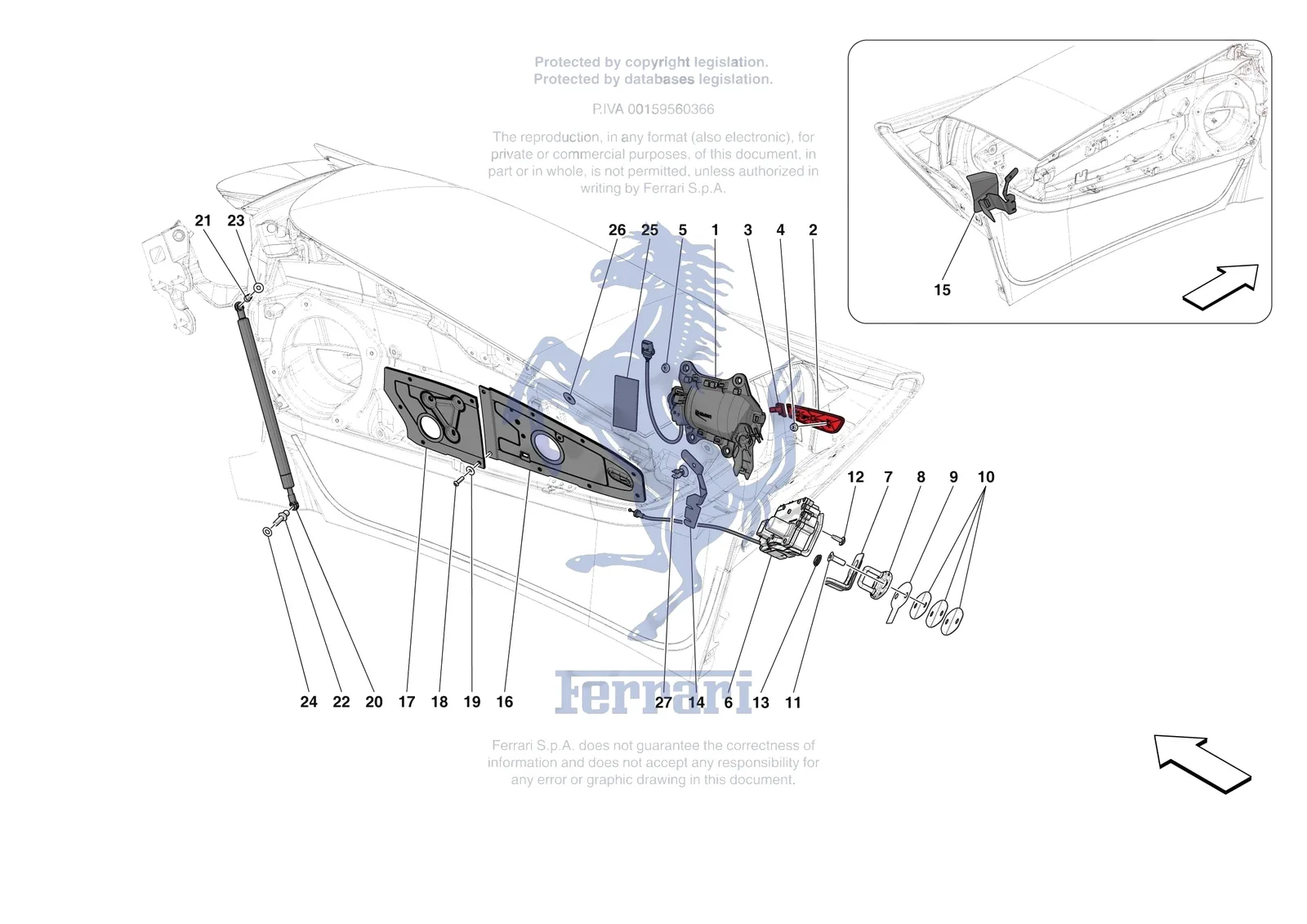

![Ferrari F80 [VEHICLE TRIM] - E.29.03 - FRONT DOORS - OPENING MECHANISMS AND HINGES exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f80/0134.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 848279 | Ferrari Door Striker Plate Shim - 848279 | Superseded | Order 802693 instead | |
| 55080330 | Ferrari Pin - 55080330 | $30.43 | Special order, ships in 7-14 days | |
| 878164 | Ferrari RH Outer Door Handle Module - 878164 | Superseded | Order 868970 instead | |
| 12643707 | Ferrari Washer - 12643707 | Superseded | Order 12643778 instead | |
| 12643777 | Ferrari Washer - 12643777 | Superseded | Order 12643778 instead | |
| 156093 | Ferrari Washer - 156093 | Superseded | Order 12646778 instead | |
| 1 | 55060726 | Ferrari LH OUTER DOOR HANDLE MODULE - 55060726 | Price on request | Contact us for price and availability |
| 1 | 868970 | Ferrari RH Outer Door Handle Module - 868970 | $516.33 | Special order, ships in 7-14 days |
| 2 | 878178 | Ferrari LH Handle Two/Component Paddle - 878178 | $110.61 | Special order, ships in 7-14 days |
| 2 | 878117 | Ferrari RH Handle Two/Component Padd - 878117 | $110.61 | Special order, ships in 7-14 days |
| 3 | 878116 | Ferrari LH Handle Button - 878116 | $21.85 | Special order, ships in 7-14 days |
| 3 | 878120 | Ferrari RH Handle Button - 878120 | $21.85 | Special order, ships in 7-14 days |
| 4 | 12578011 | Ferrari Flanged Nyloc Nut - 12578011 | $0.31 | Available, ships in 3-6 days |
| 5 | 13046111 | Ferrari Nut 6x6 - 13046111 | $0.73 | Special order, ships in 7-14 days |
| 6 | 55058981 | Ferrari COMPL. LH DOOR LOCK UNIT - 55058981 | Price on request | Contact us for price and availability |
| 6 | 55059007 | Ferrari COMPL. RH DOOR LOCK UNIT - 55059007 | Price on request | Contact us for price and availability |
| 7 | 878020 | Ferrari Plate - 878020 | $26.24 | Special order, ships in 7-14 days |
| 7 | 995397 | Ferrari Plate - 995397 | $26.20 | Special order, ships in 7-14 days |
| 8 | 808736 | Ferrari Door Lock Striker Plate - 808736 | $29.48 | Special order, ships in 7-14 days |
| 9 | 924578 | Ferrari Pellicola Per Scontrino Port - 924578 | $14.39 | Special order, ships in 7-14 days |
| 10 | 802693 | Ferrari Door Striker Plate Shim - 802693 | $15.05 | Special order, ships in 7-14 days |
| 11 | 331282 | Ferrari Screw - 331282 | $15.05 | Special order, ships in 7-14 days |
| 12 | 889675 | Ferrari Screw - 889675 | $9.37 | Special order, ships in 7-14 days |
| 13 | 896003 | Ferrari Cap - 896003 | $46.69 | Special order, ships in 7-14 days |
| 14 | 55058039 | Ferrari RH DOOR BRACKET - 55058039 | Price on request | Contact us for price and availability |
| 15 | 55058011 | Ferrari LH DOOR BRACKET - 55058011 | Price on request | Contact us for price and availability |
| 16 | 55013925 | Ferrari Compl. LH Rear Door Panel - 55013925 | $3,679.31 | Special order, ships in 7-14 days |
| 16 | 55013932 | Ferrari Compl. RH Rear Door Panel - 55013932 | $3,679.31 | Special order, ships in 7-14 days |
| 17 | 55013935 | Ferrari Compl. RH Front Door Panel - 55013935 | $2,771.77 | Special order, ships in 7-14 days |
| 17 | 55013937 | Ferrari Compl. RH Front Door Panel - 55013937 | $2,771.77 | Special order, ships in 7-14 days |
| 18 | 86276300 | Ferrari SCREW - 86276300 | $7.84 | Special order, ships in 7-14 days |
| 19 | 12643778 | Ferrari Washer 6-18 x 1.5 - 12643778 | $0.54 | Available, ships in 3-6 days |
| 20 | 55003898 | Ferrari COMPL. OPENER SPRING - 55003898 | $328.27 | Special order, ships in 7-14 days |
| 21 | 903280 | Ferrari Pin - 903280 | Superseded | Order 55080330 instead |
| 22 | 978421 | Ferrari PIN - 978421 | $71.38 | Special order, ships in 7-14 days |
| 23 | 12646778 | Ferrari Washer - 12646778 | $0.89 | In stock |
| 24 | 877744 | Ferrari Washer - 877744 | $15.06 | Special order, ships in 7-14 days |
| 25 | 179309 | Ferrari ADHESIVE FOAM - 179309 | $8.28 | Available, ships in 3-6 days |
| 26 | 12648978 | Ferrari Washer - 12648978 | $1.04 | Available, ships in 3-6 days |
| 27 | 55059816 | Ferrari CLIP - 55059816 | Price on request | Contact us for price and availability |
