Ferrari F80 — [VEHICLE TRIM] - E.32 - DOOR SEALS (diagram 0140)

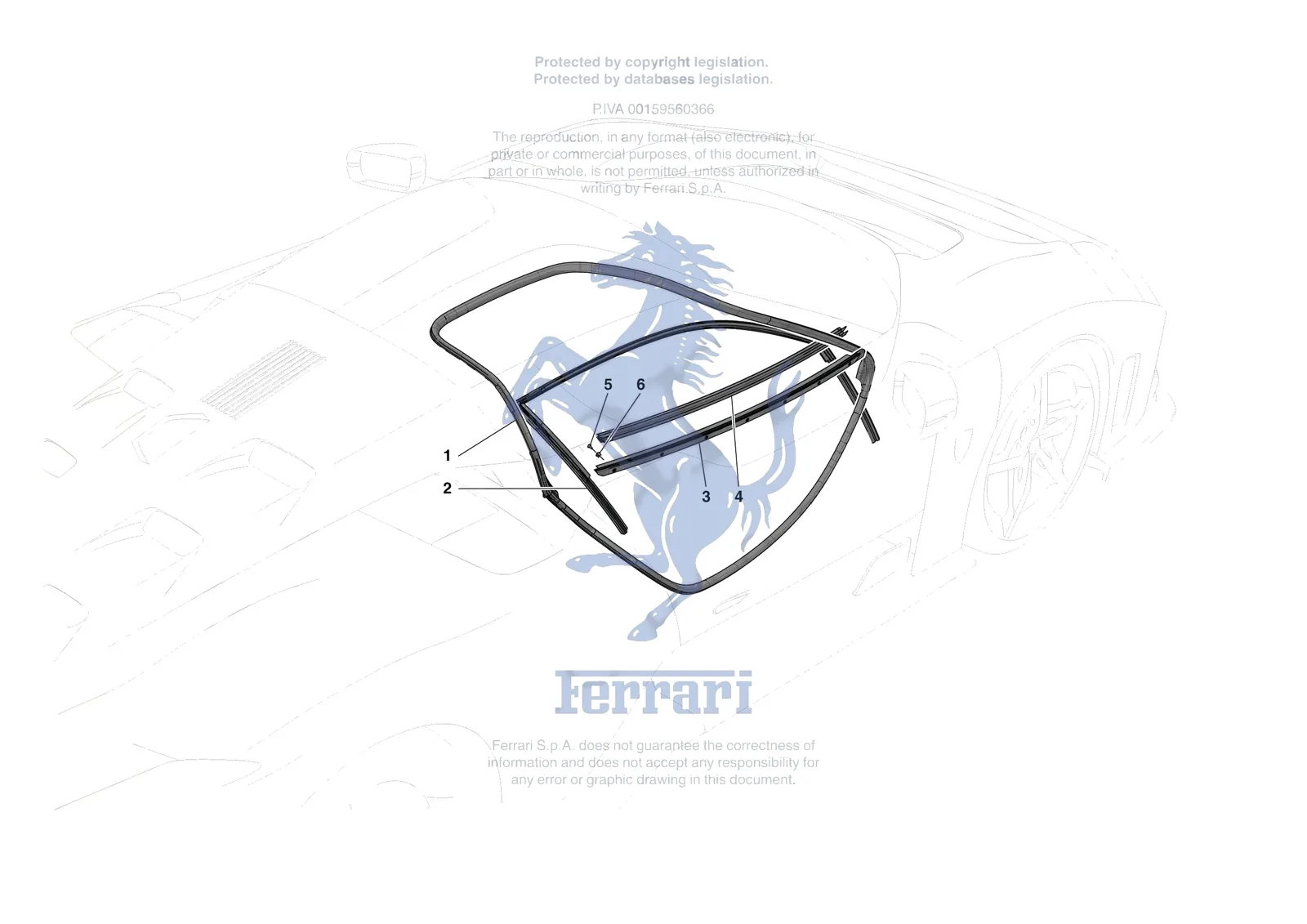

Exploded view of the [vehicle trim] - e.32 - door seals on the Ferrari F80, with 10 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari F80 [VEHICLE TRIM] - E.32 - DOOR SEALS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f80/0140.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 55034151 | Ferrari Compl. LH Point Seal - 55034151 | $1,697.09 | Special order, ships in 7-14 days |
| 1 | 55034153 | Ferrari Compl. RH Point Seal - 55034153 | $1,707.14 | Special order, ships in 7-14 days |
| 2 | 55034154 | Ferrari Compl. LH Window Guide Seal - 55034154 | $1,174.90 | Special order, ships in 7-14 days |
| 2 | 55034156 | Ferrari Compl. RH Window Guide Seal - 55034156 | $1,174.90 | Special order, ships in 7-14 days |
| 3 | 55014630 | Ferrari LH External Window Scraper S - 55014630 | $1,414.25 | Special order, ships in 7-14 days |
| 3 | 55014631 | Ferrari RH External Window Scraper S - 55014631 | $1,414.25 | Special order, ships in 7-14 days |
| 4 | 55014647 | Ferrari Compl. LH Internal Window Sc - 55014647 | $848.53 | Special order, ships in 7-14 days |
| 4 | 55014651 | Ferrari Compl. RH Internal Window Sc - 55014651 | $848.53 | Special order, ships in 7-14 days |
| 5 | 15689607 | Ferrari Screw - 15689607 | $0.17 | Special order, ships in 7-14 days |
| 6 | 14115885 | Ferrari Fixing Block - 14115885 | $0.31 | Available, ships in 3-6 days |
