Ferrari F80 — [VEHICLE TRIM] - E.42.02 - REAR ACTIVE AERO (diagram 0151)

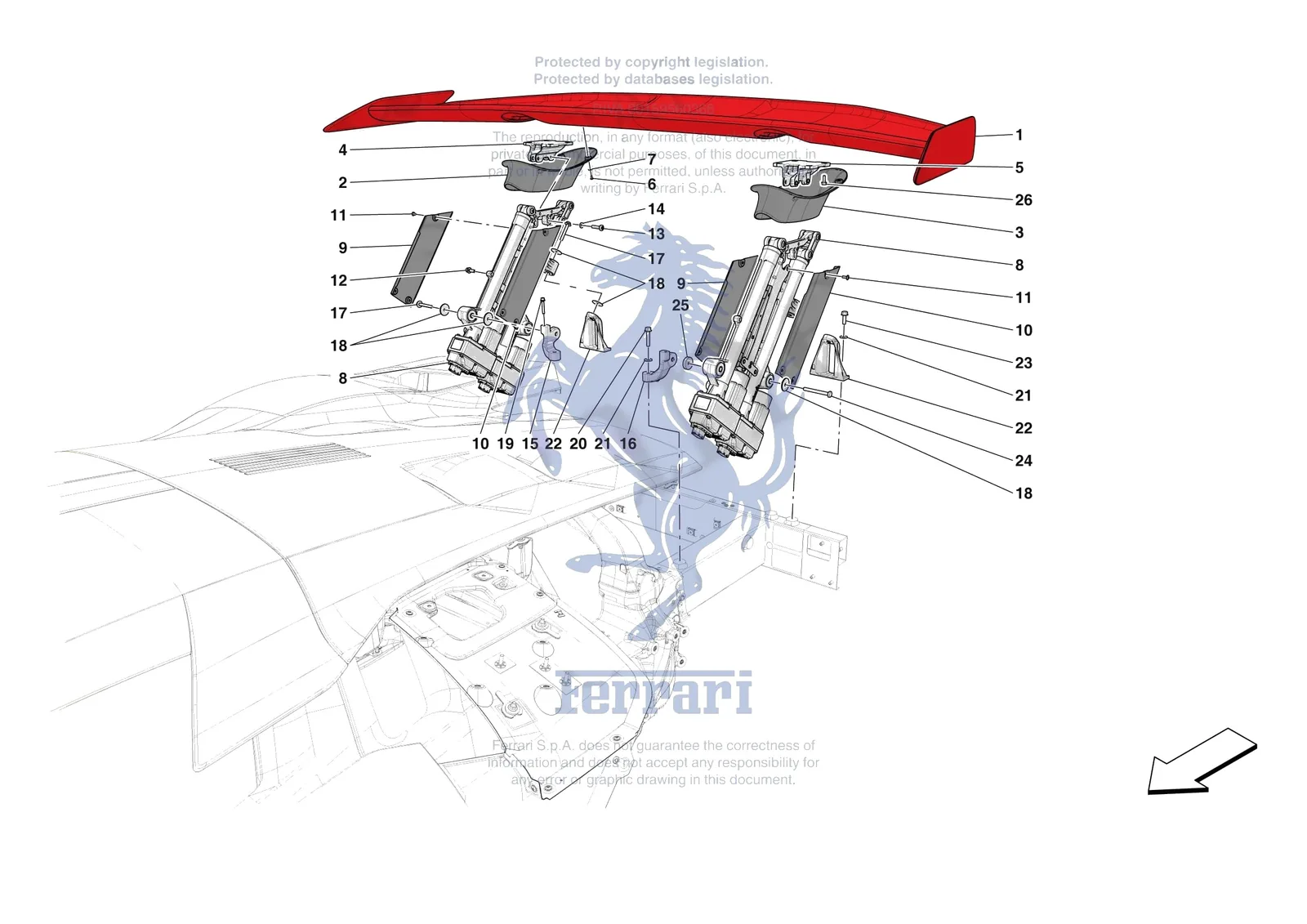

Exploded view of the [vehicle trim] - e.42.02 - rear active aero on the Ferrari F80, with 36 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari F80 [VEHICLE TRIM] - E.42.02 - REAR ACTIVE AERO exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f80/0151.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 11617624 | Ferrari Screw - 11617624 | Superseded | Order 16287224 instead | |
| 80415900 | Ferrari Screw - 80415900 | $32.60 | Available, ships in 3-6 days | |
| 834367 | Ferrari Screw 8x25 - 834367 | Superseded | Order 231628 instead | |
| 2 | 55015278 | Ferrari COMPL. RH VARIABLE GEOM. WING PYLON TOP FAIRING - 55015278 | Price on request | Contact us for price and availability |
| 2 | 55015286 | Ferrari COMPL. RH VARIABLE GEOM. WING PYLON TOP FAIRING - 55015286 | Price on request | Contact us for price and availability |
| 2 | 55015551 | Ferrari COMPL. RH VARIABLE GEOM. WING PYLON TOP FAIRING - 55015551 | Price on request | Contact us for price and availability |
| 3 | 55015277 | Ferrari COMPL. LH VARIABLE GEOM. WING PYLON TOP FAIRING - 55015277 | Price on request | Contact us for price and availability |
| 3 | 55015285 | Ferrari COMPL. LH VARIABLE GEOM. WING PYLON TOP FAIRING - 55015285 | Price on request | Contact us for price and availability |
| 3 | 55015550 | Ferrari COMPL. LH VARIABLE GEOM. WING PYLON TOP FAIRING - 55015550 | Price on request | Contact us for price and availability |
| 4 | 777531 | Ferrari RH Wing Mechanism Connector - 777531 | $1,551.20 | Special order, ships in 7-14 days |
| 5 | 777533 | Ferrari LH Wing Mechanism Connector - 777533 | $1,551.20 | Special order, ships in 7-14 days |
| 6 | 935243 | Ferrari Screw TBFTX T20 M4 x 10 Nerinox - 935243 | $0.96 | Special order, ships in 7-14 days |
| 7 | 12642878 | Ferrari Washer - 12642878 | $0.19 | Available, ships in 3-6 days |
| 8 | 774614 | Ferrari REAR WING MECHANISM - 774614 | Price on request | Contact us for price and availability |
| 9 | 55015119 | Ferrari Compl. RH Variable Geom. Win - 55015119 | $3,416.67 | Special order, ships in 7-14 days |
| 9 | 55015125 | Ferrari COMPL. RH VARIABLE GEOM. WING PYLON FAIRING - 55015125 | Price on request | Contact us for price and availability |
| 9 | 55015549 | Ferrari COMPL. RH VARIABLE GEOM. WING PYLON FAIRING - 55015549 | Price on request | Contact us for price and availability |
| 10 | 55015118 | Ferrari Compl. LH Variable Geom. Win - 55015118 | $3,416.67 | Special order, ships in 7-14 days |
| 10 | 55015124 | Ferrari COMPL. LH VARIABLE GEOM. WING PYLON FAIRING - 55015124 | Price on request | Contact us for price and availability |
| 10 | 55015548 | Ferrari COMPL. LH VARIABLE GEOM. WING PYLON FAIRING - 55015548 | Price on request | Contact us for price and availability |
| 11 | 907300 | Ferrari Screw M5 x 14 TBFTX Nerinox - 907300 | $0.98 | Special order, ships in 7-14 days |
| 12 | 231628 | Ferrari Screw 8x25 - 231628 | $1.15 | Special order, ships in 7-14 days |
| 13 | 247857 | Ferrari Screw 8x35 - 247857 | $4.12 | Available, ships in 3-6 days |
| 14 | 283982 | Ferrari Washer - 283982 | $0.79 | Special order, ships in 7-14 days |
| 15 | 776005 | Ferrari RH Front Wing Mechanism Moun - 776005 | $960.25 | Special order, ships in 7-14 days |
| 16 | 776002 | Ferrari LH Front Wing Mechanism Moun - 776002 | $960.25 | Special order, ships in 7-14 days |
| 17 | 872471 | Ferrari Hex Head Screw M8X60 + R. Imp.D8X2 - 872471 | $8.30 | Special order, ships in 7-14 days |
| 18 | 226858 | Ferrari WASHER - 226858 | Price on request | Contact us for price and availability |
| 19 | 231623 | Ferrari Screw M6 x 40 TCEI - 231623 | $1.02 | Available, ships in 3-6 days |
| 20 | 16287524 | Ferrari Flanged Bolt M8 x 40 - 16287524 | $2.59 | Available, ships in 3-6 days |
| 21 | 12646727 | Ferrari Washer D. 8.45 X 20 X 2 - 12646727 | $0.40 | Available, ships in 3-6 days |
| 22 | 776003 | Ferrari Rear Wing Mechanism Mount - 776003 | $1,280.35 | Special order, ships in 7-14 days |
| 23 | 16287224 | Ferrari Screw M8x25 - 16287224 | $0.82 | Available, ships in 3-6 days |
| 24 | 16044634 | Ferrari Screw - 16044634 | $4.56 | Special order, ships in 7-14 days |
| 25 | 776004 | Ferrari Wing Mechanism Connector Bus - 776004 | $103.38 | Special order, ships in 7-14 days |
| 26 | 55051081 | Ferrari SCREW - 55051081 | Price on request | Contact us for price and availability |
