Ferrari F80 — [VEHICLE TRIM] - E.47.05 - DASHBOARD - DUCTS -Not for RHD- (diagram 0160)

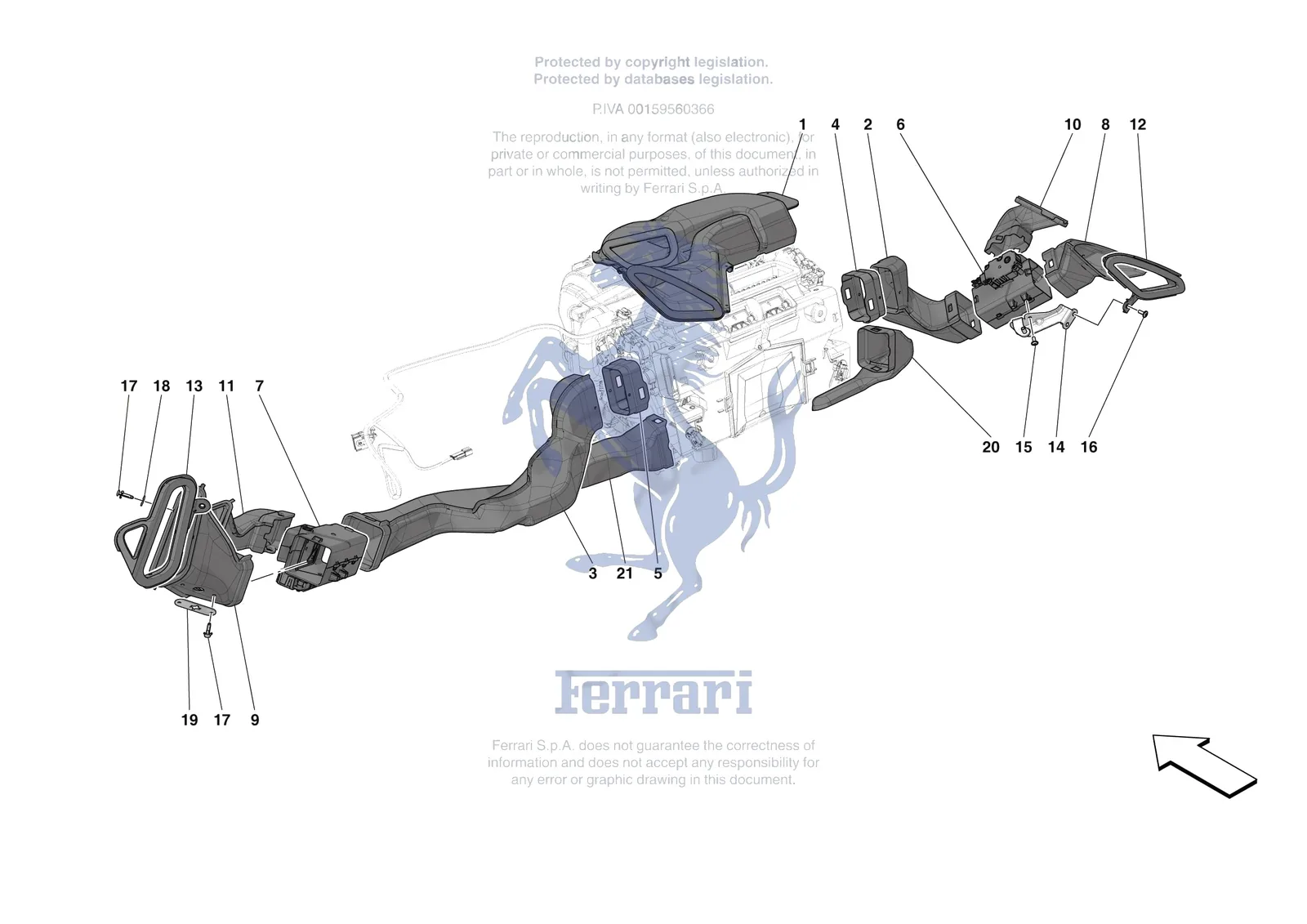

Exploded view of the [vehicle trim] - e.47.05 - dashboard - ducts -not for rhd- on the Ferrari F80, with 24 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari F80 [VEHICLE TRIM] - E.47.05 - DASHBOARD - DUCTS -Not for RHD- exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f80/0160.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 81911200 | Ferrari Screw - 81911200 | Superseded | Order 85692200 instead | |
| 68176300 | Ferrari Screw 5x12 - 68176300 | Superseded | Order 85692200 instead | |
| 1 | 844179 | Ferrari Compl. Centre Ducts - 844179 | $320.06 | Special order, ships in 7-14 days |
| 2 | 817692 | Ferrari RH Centre Ventilation Duct - 817692 | $270.83 | Special order, ships in 7-14 days |
| 3 | 971523 | Ferrari LH Centre Ventilation Duct - 971523 | $270.83 | Special order, ships in 7-14 days |
| 4 | 808171 | Ferrari RH Ventilation Duct Connecto - 808171 | $11.54 | Special order, ships in 7-14 days |
| 5 | 808085 | Ferrari Driver Side LH Ventilation D - 808085 | $10.83 | Special order, ships in 7-14 days |
| 6 | 969569 | Ferrari Compl. RH Air Distributor - 969569 | $1,083.38 | Special order, ships in 7-14 days |
| 7 | 969568 | Ferrari Compl. LH Air Distributor - 969568 | $1,083.38 | Special order, ships in 7-14 days |
| 8 | 744999 | Ferrari RH Ventilation Duct - 744999 | $219.11 | Special order, ships in 7-14 days |
| 9 | 817579 | Ferrari LH Ventilation Duct - 817579 | $231.42 | Special order, ships in 7-14 days |
| 10 | 817717 | Ferrari RH Demister Duct - 817717 | $238.82 | Special order, ships in 7-14 days |
| 11 | 971524 | Ferrari LH Demister Duct - 971524 | $236.34 | Special order, ships in 7-14 days |
| 12 | 779160 | Ferrari Compl. RH Ventilation Duct C - 779160 | $132.94 | Special order, ships in 7-14 days |
| 13 | 778983 | Ferrari Compl. LH Ventilation Duct C - 778983 | $147.72 | Special order, ships in 7-14 days |
| 14 | 914972 | Ferrari FASTENER BRACKET - 914972 | Price on request | Contact us for price and availability |
| 15 | 85692200 | Ferrari SCREW M5 x 12 - 85692200 | $0.65 | Available, ships in 3-6 days |
| 16 | 907300 | Ferrari Screw M5 x 14 TBFTX Nerinox - 907300 | $0.98 | Special order, ships in 7-14 days |
| 17 | 14415690 | Ferrari Rivet - 14415690 | $1.80 | Available, ships in 3-6 days |
| 18 | 12638124 | Ferrari Washer - 12638124 | $0.08 | Available, ships in 3-6 days |
| 18 | 12638101 | Ferrari Washer White - 12638101 | Superseded | Order 12638124 instead |
| 19 | 815344 | Ferrari SENSOR FASTENER PLATE - 815344 | Price on request | Contact us for price and availability |
| 20 | 971518 | Ferrari RH Ventilation Duct - 971518 | $295.43 | Special order, ships in 7-14 days |
| 21 | 960966 | Ferrari LH Ventilation Duct - 960966 | $344.69 | Special order, ships in 7-14 days |
