Ferrari F80 — [VEHICLE TRIM] - E.48 - CENTRE TUNNEL AND CONSOLE (diagram 0165)

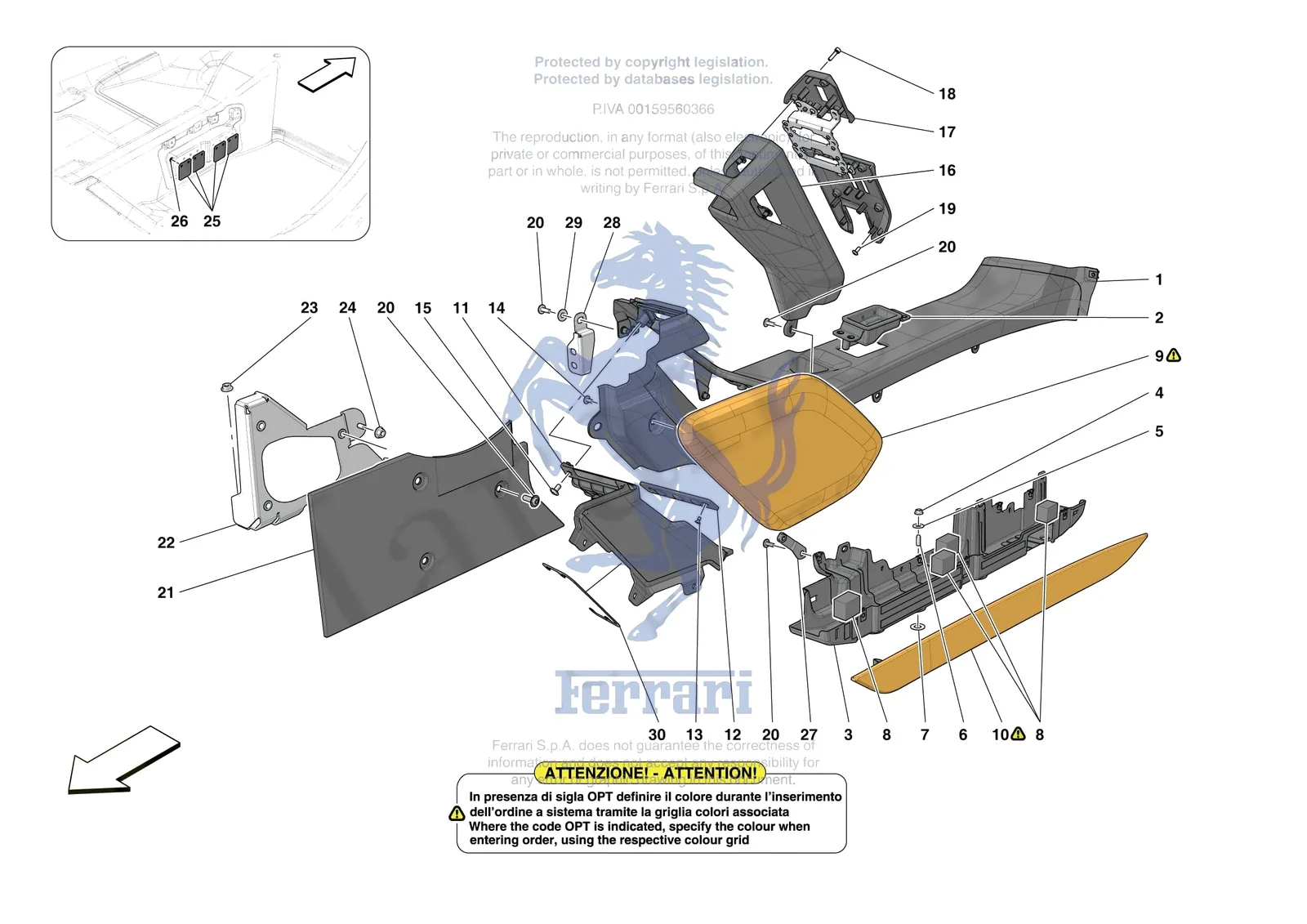

Exploded view of the [vehicle trim] - e.48 - centre tunnel and console on the Ferrari F80, with 38 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari F80 [VEHICLE TRIM] - E.48 - CENTRE TUNNEL AND CONSOLE exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f80/0165.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 13046011 | Ferrari Flanged Nut - 13046011 | $0.73 | Available, ships in 3-6 days | |
| 14039614 | Ferrari NUT - 14039614 | $0.40 | Available, ships in 3-6 days | |
| 290589 | Ferrari Screw 4x8 - 290589 | Superseded | Order 309629 instead | |
| 1 | 55027321 | Ferrari Compl. Centre Tunnel Console - 55027321 | $12,705.25 | Contact us to order |
| 2 | 967232 | Ferrari Compl. Key Bezel - 967232 | $221.59 | Special order, ships in 7-14 days |
| 3 | 55026410 | Ferrari Tunnel Carrier. - 55026410 | $344.69 | Special order, ships in 7-14 days |
| 4 | 14059111 | Ferrari Flanged Nut M5 - 14059111 | $0.08 | Available, ships in 3-6 days |
| 4 | 14039511 | Ferrari Nut - 14039511 | $0.54 | Available, ships in 3-6 days |
| 5 | 12644404 | Ferrari Washer - 12644404 | Superseded | Order 12644424 instead |
| 5 | 12644424 | Ferrari Washer 6.15-15 x 1 - 12644424 | $0.12 | Available, ships in 3-6 days |
| 6 | 55012476 | Ferrari Threaded Rubber Cap - 55012476 | $14.26 | Special order, ships in 7-14 days |
| 7 | 12642424 | Ferrari Flat Washer D.10.20 - 20 SP - 12642424 | $1.48 | Special order, ships in 7-14 days |
| 8 | 888065 | Ferrari SHIM - 888065 | Price on request | Contact us for price and availability |
| 9 | 902170 | Ferrari COMPL. FRONT TUNNEL CONSOLE UNIT KNEE CUSHION - 902170 | Price on request | Contact us for price and availability |
| 10 | 905517 | Ferrari COMPL. LH LATERAL UNDER-CHIN ELEMENT - 905517 | Price on request | Contact us for price and availability |
| 11 | 764557 | Ferrari Wireless Charger Substructur - 764557 | $320.06 | Special order, ships in 7-14 days |
| 12 | 914497 | Ferrari Rubber Phone Retainer Mat - 914497 | $44.29 | Special order, ships in 7-14 days |
| 13 | 934927 | Ferrari Allen Head Bolt Countersunk M4X8 - 934927 | $1.74 | Special order, ships in 7-14 days |
| 14 | 309629 | Ferrari Screw 4x8 - 309629 | $4.77 | Special order, ships in 7-14 days |
| 15 | 85692000 | Ferrari SCREW - 85692000 | $0.65 | Available, ships in 3-6 days |
| 16 | 985193 | Ferrari PLANCETTA COMANDI TUNNEL CARB CPL - 985193 | $6,312.75 | Special order, ships in 7-14 days |
| 17 | 835668 | Ferrari COMPL. CONTROL PANEL BEZEL - 835668 | $14,421.80 | Contact us to order |
| 17 | 995110 | Ferrari COMPL. CONTROL PANEL BEZEL - 995110 | $14,302.22 | Contact us to order |
| 17 | 995113 | Ferrari COMPL. CONTROL PANEL BEZEL - 995113 | $14,302.22 | Contact us to order |
| 17 | 995114 | Ferrari COMPL. CONTROL PANEL BEZEL - 995114 | $14,302.22 | Contact us to order |
| 18 | 226854 | Ferrari SCREW - 226854 | Price on request | Contact us for price and availability |
| 19 | 88822200 | Ferrari Screw 4 x 10 - 88822200 | $1.30 | Special order, ships in 7-14 days |
| 20 | 907300 | Ferrari Screw M5 x 14 TBFTX Nerinox - 907300 | $0.98 | Special order, ships in 7-14 days |
| 21 | 967116 | Ferrari Accelerator Pedal Treadplate - 967116 | $3,845.80 | Special order, ships in 7-14 days |
| 22 | 55014433 | Ferrari FRONT TUNNEL FASTENER BRACKET - 55014433 | Price on request | Contact us for price and availability |
| 23 | 14059190 | Ferrari Nut - 14059190 | $0.54 | Special order, ships in 7-14 days |
| 24 | 14040514 | Ferrari Flanged Nut - 14040514 | Superseded | Order 13046011 instead |
| 25 | 85533700 | Ferrari Front Firewall Ventilation Flap - 85533700 | $4.35 | Special order, ships in 7-14 days |
| 26 | 786772 | Ferrari Washer - 786772 | $1.17 | Special order, ships in 7-14 days |
| 27 | 55051647 | Ferrari MESH REINFORCEMENT BRACKET - 55051647 | Price on request | Contact us for price and availability |
| 28 | 55009611 | Ferrari TUNNEL FASTENER BRACKET - 55009611 | Price on request | Contact us for price and availability |
| 29 | 12644478 | Ferrari Washer D. 6.45 - 15 x 1 - 12644478 | Superseded | Order 85882600 instead |
| 30 | 55065965 | Ferrari WIRELESS CHARGER SUBSTRUCTURE REINFORCEMENT BRACKET - 55065965 | Price on request | Contact us for price and availability |
