Ferrari F80 — [VEHICLE TRIM] - E.49 - INNER TRIM (ABOVE BELTLINE) (diagram 0166)

Exploded view of the [vehicle trim] - e.49 - inner trim (above beltline) on the Ferrari F80, with 57 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

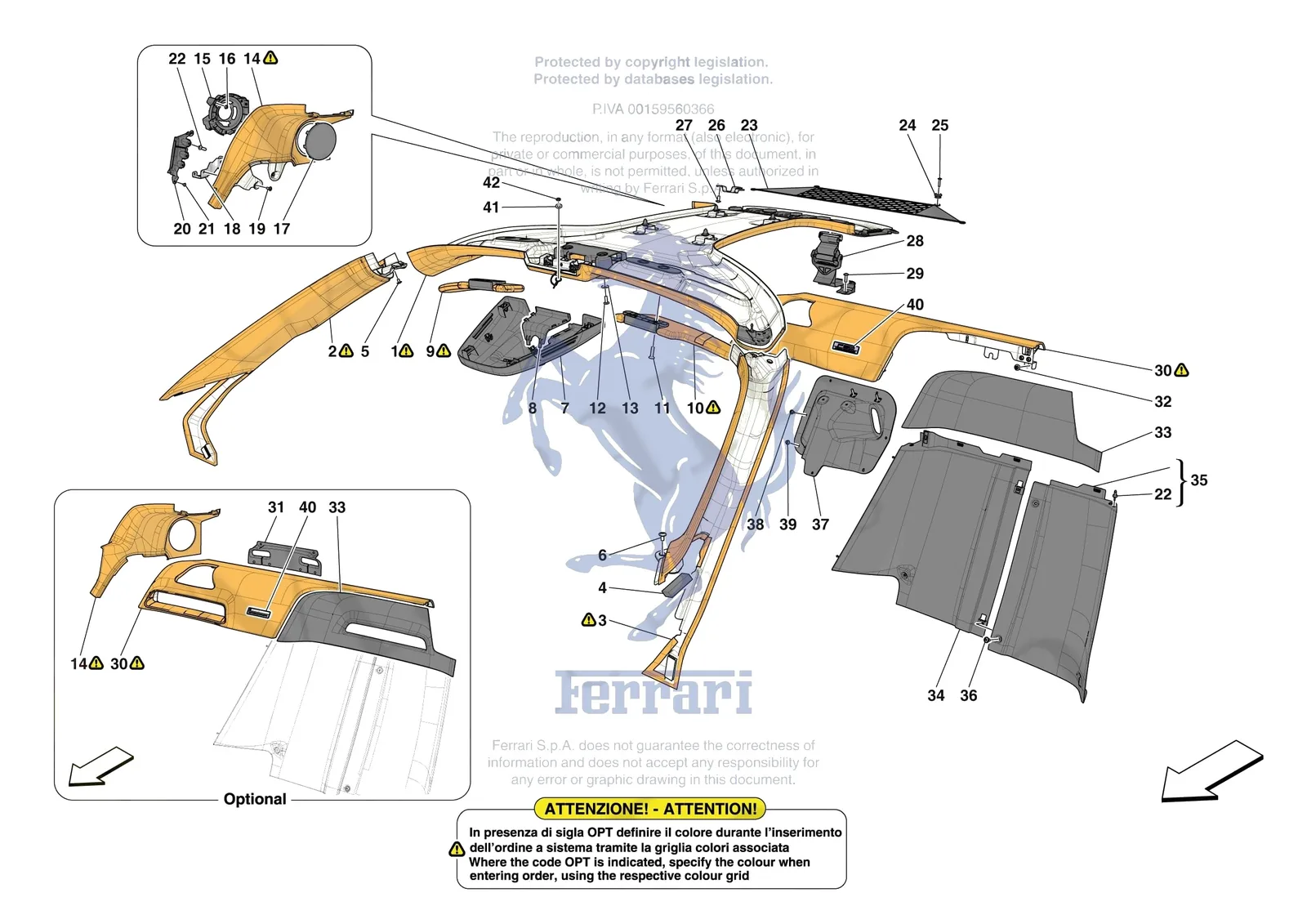

Ferrari F80 [VEHICLE TRIM] - E.49 - INNER TRIM (ABOVE BELTLINE) exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
13046011Ferrari Flanged Nut - 13046011$0.73Available, ships in 3-6 days
81911200Ferrari Screw - 81911200SupersededOrder 85692200 instead
290589Ferrari Screw 4x8 - 290589SupersededOrder 309629 instead
68176300Ferrari Screw 5x12 - 68176300SupersededOrder 85692200 instead
86211600Ferrari Washer - 86211600SupersededOrder 65545900 instead
155002622Ferrari HEADLINER TRIM - 55002622$7,705.69Special order, ships in 7-14 days
2963524Ferrari COMPL. RH A-PILLAR TRIM - 963524Price on requestContact us for price and availability
3963523Ferrari COMPL. LH A-PILLAR TRIM - 963523Price on requestContact us for price and availability
585691900Ferrari Screw M5 x 8 TBFTX - 85691900$0.65Available, ships in 3-6 days
685692000Ferrari SCREW - 85692000$0.65Available, ships in 3-6 days
7957073Ferrari Compl. Mirror Cover - 957073$295.43Special order, ships in 7-14 days
8969525Ferrari Mirror Cover Blanking Cap - 969525$128.01Special order, ships in 7-14 days
955023956Ferrari RH SUN VISOR - 55023956Price on requestContact us for price and availability
9999593Ferrari RH SUN VISOR - 999593Price on requestContact us for price and availability
10999586Ferrari LH SUN VISOR - 999586Price on requestContact us for price and availability
1168927900Ferrari Screw M6 x 25 TSEI - 68927900$0.40Available, ships in 3-6 days
1285833900Ferrari Screw M5 x 16 TBFTX - 85833900$0.65Available, ships in 3-6 days
1312644401Ferrari Washer - 12644401$0.08Available, ships in 3-6 days
1455014793Ferrari COMPL. LH B-PILLAR TRIM - 55014793Price on requestContact us for price and availability
14893481Ferrari COMPL. LH B-PILLAR TRIM - 893481Price on requestContact us for price and availability
1455014795Ferrari COMPL. RH B-PILLAR TRIM - 55014795Price on requestContact us for price and availability
14893185Ferrari COMPL. RH B-PILLAR TRIM - 893185Price on requestContact us for price and availability
15975843Ferrari LH REAR MIDRANGE SPEAKER CARRIER - 975843$102.85Special order, ships in 7-14 days
15975842Ferrari RH REAR MIDRANGE SPEAKER CARRIER - 975842$102.85Special order, ships in 7-14 days
1614059121Ferrari Nut M5 - 14059121$0.31Available, ships in 3-6 days
18909041Ferrari LH B-PILLAR TRIM MOUNTING BRACKET - 909041Price on requestContact us for price and availability
18909043Ferrari RH B-PILLAR TRIM MOUNTING BRACKET - 909043Price on requestContact us for price and availability
19907300Ferrari Screw M5 x 14 TBFTX Nerinox - 907300$0.98Special order, ships in 7-14 days
2055014817Ferrari Plate - 55014817$3,944.28Special order, ships in 7-14 days
20903355Ferrari Plate - 903355$2,133.94Special order, ships in 7-14 days
21309629Ferrari Screw 4x8 - 309629$4.77Special order, ships in 7-14 days
22939698Ferrari Pin - 939698$34.44Special order, ships in 7-14 days
2355011255Ferrari PARCEL SHELF MESH - 55011255$911.01Special order, ships in 7-14 days
2455025581Ferrari Mesh Retainer - 55025581$13.76Special order, ships in 7-14 days
2585834000Ferrari Screw M5 x 25 - 85834000$0.71Special order, ships in 7-14 days
2655009059Ferrari BRACKET - 55009059Price on requestContact us for price and availability
26995610Ferrari BRACKET - 995610Price on requestContact us for price and availability
27986768Ferrari Screw - 986768$3.26Special order, ships in 7-14 days
2855010540Ferrari Compl. Luggage Retainer Stra - 55010540$2,436.45Special order, ships in 7-14 days
2955039613Ferrari SCREW - 55039613Price on requestContact us for price and availability
30975944Ferrari BELT RETRACTOR TRIM - 975944Price on requestContact us for price and availability
30975953Ferrari BELT RETRACTOR TRIM - 975953Price on requestContact us for price and availability
31988911Ferrari LH Belt Loop Surround - 988911$4,741.60Special order, ships in 7-14 days
31872275Ferrari RH Belt Loop Surround - 872275$4,570.41Special order, ships in 7-14 days
3214039511Ferrari Nut - 14039511$0.54Available, ships in 3-6 days
33749830Ferrari Driver Side Trim Panel - 749830$6,225.99Special order, ships in 7-14 days
33856340Ferrari Driver Side Trim Panel - 856340$6,680.92Special order, ships in 7-14 days
34744001Ferrari RH Driver Side Seat Back Pan - 744001$5,735.87Special order, ships in 7-14 days
3555064191Ferrari COMPL. LH DRIVER SIDE SEAT BACK PANEL TRIM - 55064191Price on requestContact us for price and availability
36936344Ferrari Vite Tbftx T25 M5X12 Nerinox - 936344$0.82Special order, ships in 7-14 days
37763156Ferrari Hatch Cover Assembly - 763156$5,503.72Special order, ships in 7-14 days
3885692200Ferrari SCREW M5 x 12 - 85692200$0.65Available, ships in 3-6 days
3914040514Ferrari Flanged Nut - 14040514SupersededOrder 13046011 instead
40976295Ferrari 1/799 LIMITED EDITION PLAQUE - 976295Price on requestContact us for price and availability
4055031482Ferrari DEDICATION PLAQUE - 55031482Price on requestContact us for price and availability
4165545900Ferrari Black Plastic Washer - 65545900$6.32Special order, ships in 7-14 days
4255036225Ferrari TYPE C PLATE - 55036225Price on requestContact us for price and availability
