Ferrari F80 — [VEHICLE TRIM] - E.56 - FUEL FILLER SEAT (diagram 0175)

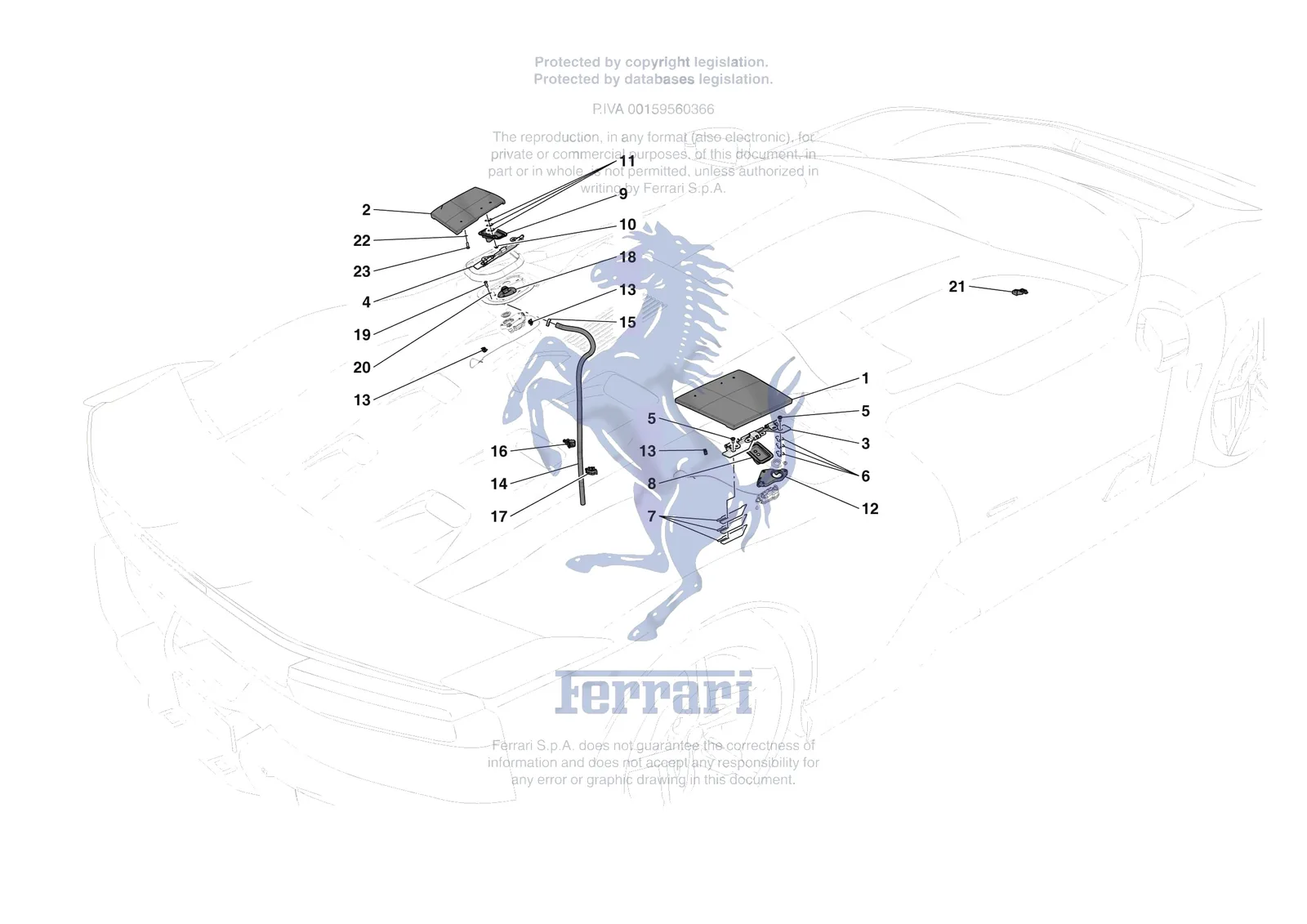

Exploded view of the [vehicle trim] - e.56 - fuel filler seat on the Ferrari F80, with 30 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari F80 [VEHICLE TRIM] - E.56 - FUEL FILLER SEAT exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f80/0175.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 248061 | Ferrari Clip - 248061 | $4.12 | Available, ships in 3-6 days | |
| 81911200 | Ferrari Screw - 81911200 | Superseded | Order 85692200 instead | |
| 68176300 | Ferrari Screw 5x12 - 68176300 | Superseded | Order 85692200 instead | |
| 12638108 | Ferrari Washer - 12638108 | Superseded | Order 12638178 instead | |
| 12638177 | Ferrari Washer - 12638177 | Superseded | Order 12638178 instead | |
| 61276300 | Ferrari Washer - 61276300 | Superseded | Order 12638178 instead | |
| 1 | 55032936 | Ferrari COMPL. ENGINE OIL TANK HATCH - 55032936 | Price on request | Contact us for price and availability |
| 2 | 55032932 | Ferrari COMPL. FUEL FILLER FLAP - 55032932 | Price on request | Contact us for price and availability |
| 3 | 55057390 | Ferrari COMPL. ENGINE OIL TANK HATCH HINGE - 55057390 | Price on request | Contact us for price and availability |
| 4 | 55057297 | Ferrari COMPL. FUEL FILLER FLAP HINGE - 55057297 | Price on request | Contact us for price and availability |
| 5 | 907300 | Ferrari Screw M5 x 14 TBFTX Nerinox - 907300 | $0.98 | Special order, ships in 7-14 days |
| 6 | 959633 | Ferrari SELF-LOCKING SHIM - 959633 | Price on request | Contact us for price and availability |
| 7 | 55067622 | Ferrari ADJUSTMENT SHIM - 55067622 | Price on request | Contact us for price and availability |
| 8 | 55051986 | Ferrari OIL FILLER FLAP SHIM COVER - 55051986 | Price on request | Contact us for price and availability |
| 9 | 55051985 | Ferrari FUEL FILLER FLAP SHIM COVER - 55051985 | Price on request | Contact us for price and availability |
| 10 | 13046011 | Ferrari Flanged Nut - 13046011 | $0.73 | Available, ships in 3-6 days |
| 10 | 13046012 | Ferrari Nut - 13046012 | Superseded | Order 13046011 instead |
| 11 | 55067688 | Ferrari SHIM PLATE - 55067688 | Price on request | Contact us for price and availability |
| 12 | 55013198 | Ferrari FUEL FILLER ACTUATOR MOUNT - 55013198 | Price on request | Contact us for price and availability |
| 13 | 14569480 | Ferrari Clip 10x3.8 Black - 14569480 | $0.54 | Available, ships in 3-6 days |
| 14 | 871793 | Ferrari Fuel Drain Pipe - 871793 | $100.93 | Special order, ships in 7-14 days |
| 15 | 13432270 | Ferrari Clip - 13432270 | $1.88 | Available, ships in 3-6 days |
| 16 | 239094 | Ferrari Clip - 239094 | $2.59 | Special order, ships in 7-14 days |
| 17 | 247440 | Ferrari Clip - 247440 | $1.30 | Available, ships in 3-6 days |
| 18 | 89290600 | Ferrari FUEL FILLER FLAP RUBBER BLOCK - 89290600 | $29.48 | Special order, ships in 7-14 days |
| 19 | 86001300 | Ferrari Screw - 86001300 | $4.14 | Special order, ships in 7-14 days |
| 20 | 12648277 | Ferrari Washer - 12648277 | $1.05 | Special order, ships in 7-14 days |
| 21 | 822491 | Ferrari Striker For Actuator - 822491 | $31.99 | Special order, ships in 7-14 days |
| 22 | 12638178 | Ferrari Washer 5.45-14x1 - 12638178 | $0.13 | Available, ships in 3-6 days |
| 23 | 85692200 | Ferrari SCREW M5 x 12 - 85692200 | $0.65 | Available, ships in 3-6 days |
