Ferrari F80 — [ELECTRICAL SYSTEM] - F.6 - ELECTRICAL SYSTEM CONTROL UNITS (diagram 0189)

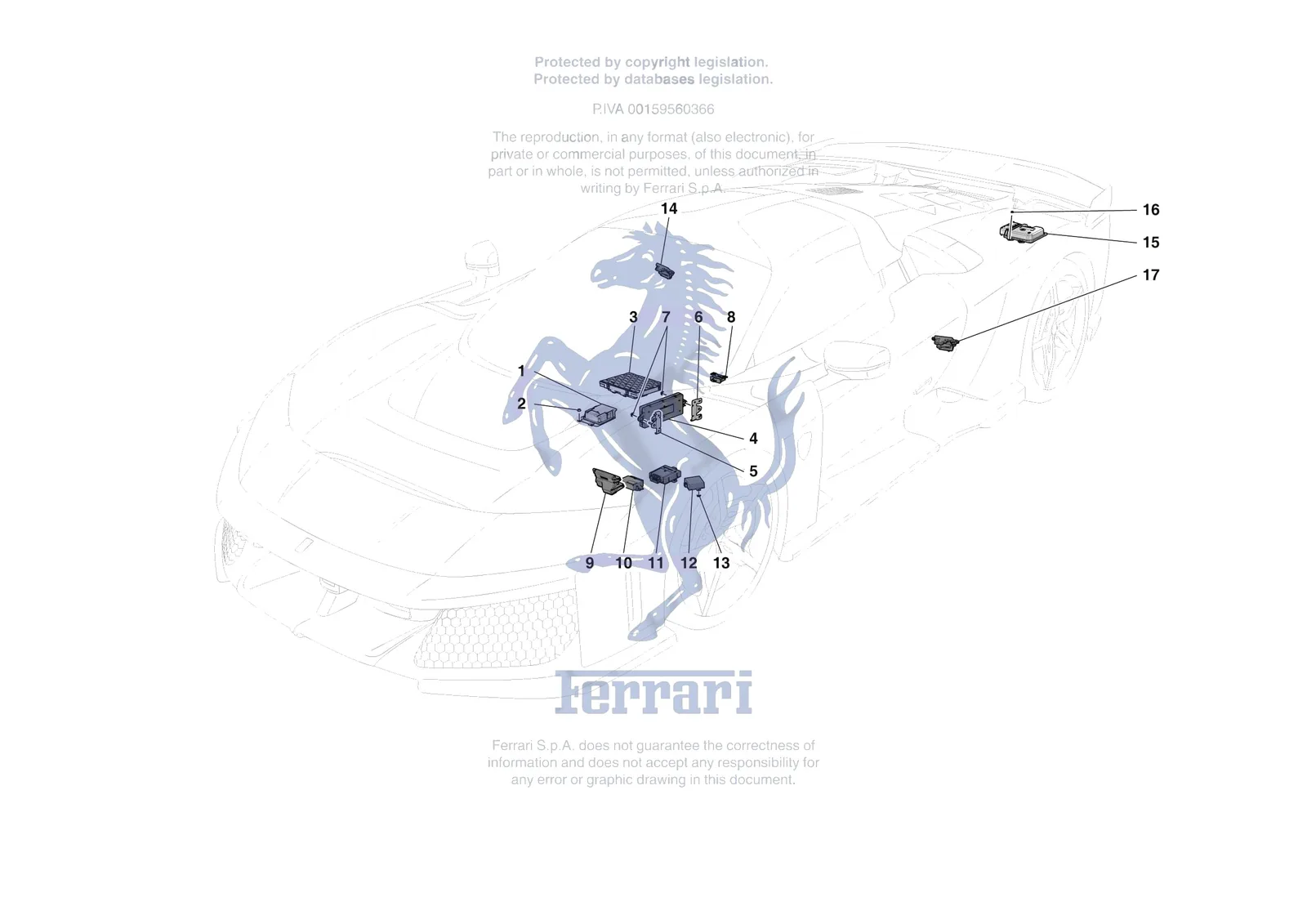

Exploded view of the [electrical system] - f.6 - electrical system control units on the Ferrari F80, with 19 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari F80 [ELECTRICAL SYSTEM] - F.6 - ELECTRICAL SYSTEM CONTROL UNITS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f80/0189.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 900782 | Ferrari Ac Ecu - 900782 | Superseded | Order 886549 instead | |
| 14039614 | Ferrari NUT - 14039614 | $0.40 | Available, ships in 3-6 days | |
| 1 | 973382 | Ferrari Airbag Ecu - 973382 | $1,083.38 | Special order, ships in 7-14 days |
| 2 | 14059211 | Ferrari Flanged Nut - 14059211 | $0.13 | Available, ships in 3-6 days |
| 3 | 985508 | Ferrari Bosch Bcm Production - 985508 | $2,433.03 | Special order, ships in 7-14 days |
| 4 | 886549 | Ferrari Ac Ecu - 886549 | $1,844.08 | Special order, ships in 7-14 days |
| 5 | 55011615 | Ferrari COMPL. FRONT AC SYSTEM ECU BRACKET - 55011615 | Price on request | Contact us for price and availability |
| 6 | 55011616 | Ferrari COMPL. REAR AC SYSTEM ECU BRACKET - 55011616 | Price on request | Contact us for price and availability |
| 7 | 14039511 | Ferrari Nut - 14039511 | $0.54 | Available, ships in 3-6 days |
| 8 | 939577 | Ferrari TPMS ECU/Antenna - 939577 | $762.20 | Special order, ships in 7-14 days |
| 9 | 995428 | Ferrari WINDSCREEN ECU - 995428 | Price on request | Contact us for price and availability |
| 10 | 868380 | Ferrari Parking Sensor Ecu - 868380 | $1,329.59 | Special order, ships in 7-14 days |
| 11 | 898251 | Ferrari Active Aerodynamic Ecu - 898251 | $837.14 | Special order, ships in 7-14 days |
| 12 | 973692 | Ferrari Matrix Headlamp Ecu - 973692 | $492.43 | Special order, ships in 7-14 days |
| 13 | 12648101 | Ferrari WASHER - 12648101 | $5.23 | Special order, ships in 7-14 days |
| 14 | 773444 | Ferrari Master Epc Unit For Fuel Pumps - 773444 | $614.67 | Special order, ships in 7-14 days |
| 15 | 786494 | Ferrari Ptu Ecu - 786494 | $3,006.28 | Special order, ships in 7-14 days |
| 16 | 14059111 | Ferrari Flanged Nut M5 - 14059111 | $0.08 | Available, ships in 3-6 days |
| 17 | 773445 | Ferrari Slave Epc Unit For Fuel Pumps - 773445 | $614.67 | Special order, ships in 7-14 days |
