Ferrari F80 — [ELECTRICAL SYSTEM] - F.10 - AUDIO UNIT (diagram 0193)

Exploded view of the [electrical system] - f.10 - audio unit on the Ferrari F80, with 25 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

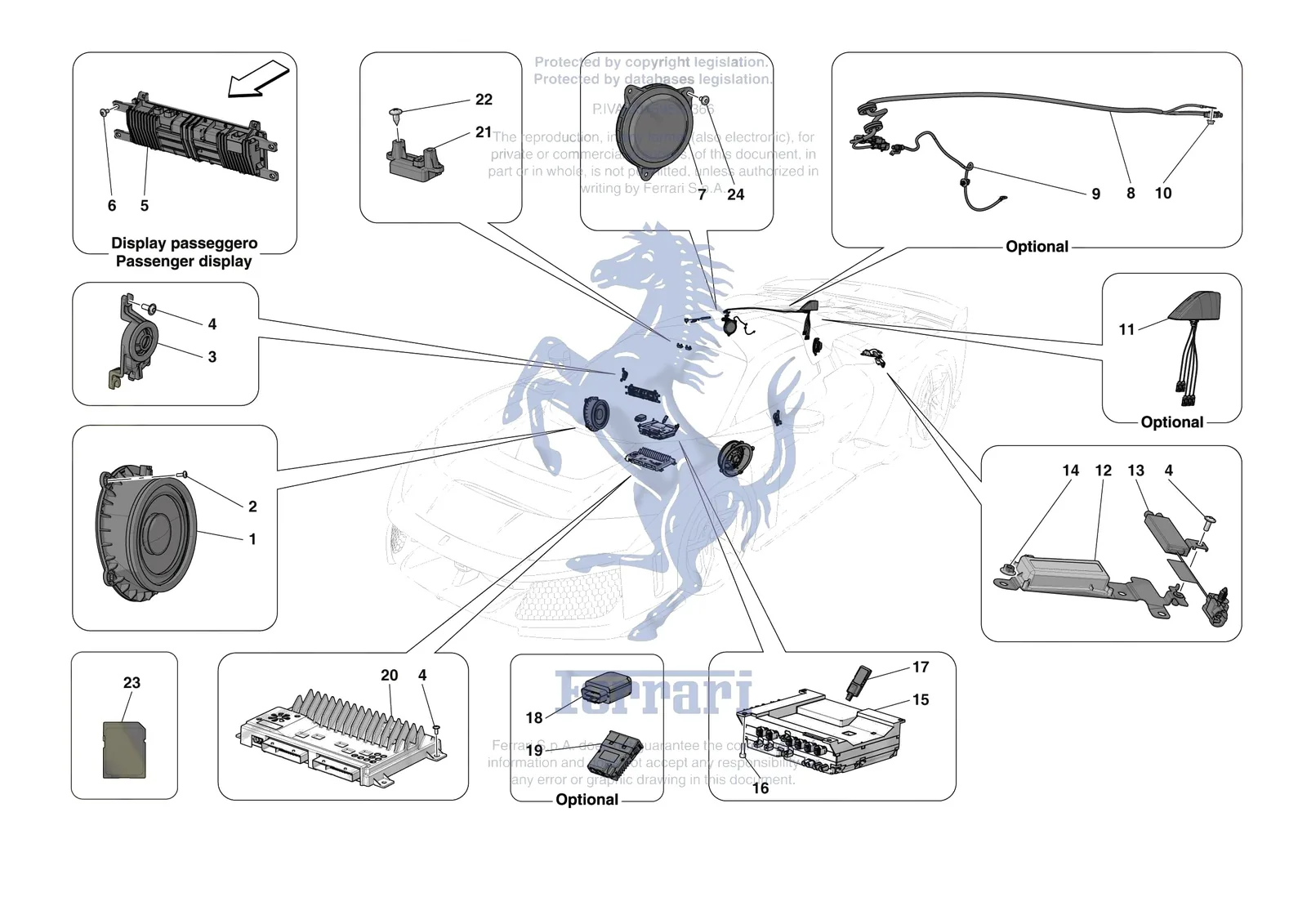

Ferrari F80 [ELECTRICAL SYSTEM] - F.10 - AUDIO UNIT exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
951166Ferrari Dongle - 951166SupersededOrder 951168 instead
81911200Ferrari Screw - 81911200SupersededOrder 85692200 instead
68176300Ferrari Screw 5x12 - 68176300SupersededOrder 85692200 instead
1772396Ferrari Front Woofer - 772396Price on requestContact us for price and availability
285833900Ferrari Screw M5 x 16 TBFTX - 85833900$0.65Available, ships in 3-6 days
3772404Ferrari Tweeter - 772404Price on requestContact us for price and availability
485692200Ferrari SCREW M5 x 12 - 85692200$0.65Available, ships in 3-6 days
5866235Ferrari Ndp Display Passeggero Spec. - 866235$4,114.39Special order, ships in 7-14 days
685692000Ferrari SCREW - 85692000$0.65Available, ships in 3-6 days
7772414Ferrari Midrange Speaker - 772414$177.00Special order, ships in 7-14 days
855042842Ferrari LID ANTENNA WIRING HARNESS - 55042842Price on requestContact us for price and availability
1014059290Ferrari Flanged Nut M6 - 14059290$2.82Available, ships in 3-6 days
11866624Ferrari Fin Antenna - 866624$656.57Special order, ships in 7-14 days
1255026424Ferrari Gnss Antenna - 55026424$284.51Special order, ships in 7-14 days
13969756Ferrari Am/Fm/Dab Amplifier - 969756$714.03Special order, ships in 7-14 days
1413046114Ferrari Flanged Nut - 13046114$0.31Available, ships in 3-6 days
15833714Ferrari NIT - 833714Price on requestContact us for price and availability
15973855Ferrari NIT - 973855Price on requestContact us for price and availability
1614304220Ferrari Screw 5x16 - 14304220$0.17Available, ships in 3-6 days
17969204Ferrari Antenna Bt-Wifi Dual Band - 969204$96.14Special order, ships in 7-14 days
18951168Ferrari MYFERRARI CONNECT ECU - 951168$1,920.19Special order, ships in 7-14 days
19893865Ferrari Smart Usb Port - 893865$590.08Special order, ships in 7-14 days
20975482Ferrari Adc Amplifier - 975482$4,218.66Special order, ships in 7-14 days
21905662Ferrari Microphone - 905662$224.04Special order, ships in 7-14 days
2216083401Ferrari Screw - 16083401$1.17Available, ships in 3-6 days
