Ferrari F80 — [ELECTRICAL SYSTEM] - F.11 - ANTI-THEFT SYSTEM (diagram 0194)
Exploded view of the [electrical system] - f.11 - anti-theft system on the Ferrari F80, with 27 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

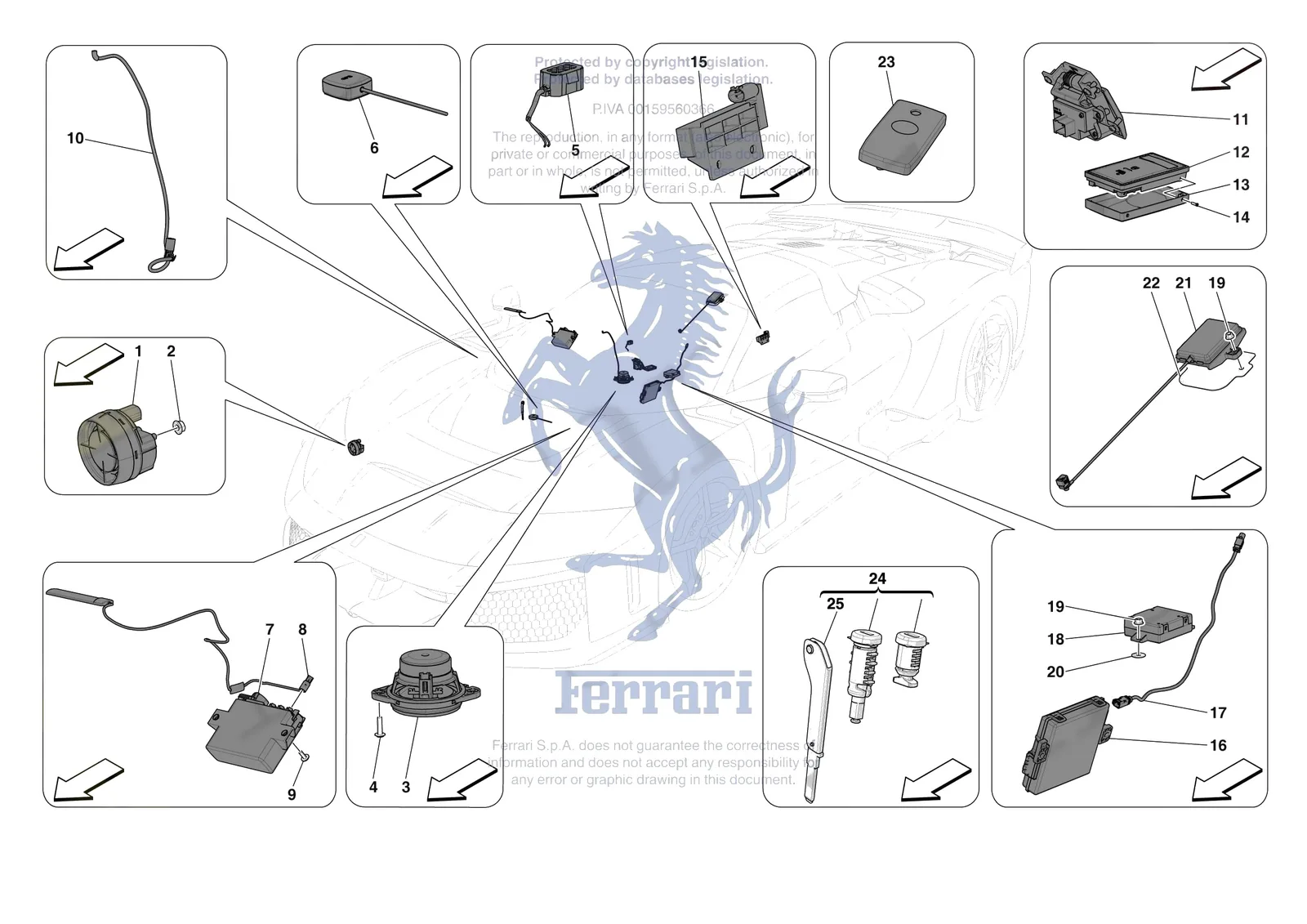

![Ferrari F80 [ELECTRICAL SYSTEM] - F.11 - ANTI-THEFT SYSTEM exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f80/0194.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 11566224 | Ferrari Screw 5x14 - 11566224 | $0.77 | Available, ships in 3-6 days | |
| 1 | 802505 | Ferrari Anti-Theft System Siren - 802505 | $218.84 | Special order, ships in 7-14 days |
| 2 | 14059290 | Ferrari Flanged Nut M6 - 14059290 | $2.82 | Available, ships in 3-6 days |
| 3 | 332825 | Ferrari Glonass Speaker - 332825 | $78.66 | Special order, ships in 7-14 days |
| 4 | 958067 | Ferrari Screw - 958067 | $5.65 | Special order, ships in 7-14 days |
| 5 | 333337 | Ferrari Gsm Microphone - 333337 | $319.62 | Special order, ships in 7-14 days |
| 6 | 336506 | Ferrari Glonass Gps Antenna - 336506 | $102.69 | Special order, ships in 7-14 days |
| 7 | 749014 | Ferrari Ecall F167 Europa - 749014 | $3,650.72 | Special order, ships in 7-14 days |
| 7 | 860390 | Ferrari TCU ECALL / SVR - 860390 | Price on request | Contact us for price and availability |
| 8 | 336507 | Ferrari Glonass Gsm Antenna - 336507 | $102.69 | Special order, ships in 7-14 days |
| 9 | 85833700 | Ferrari SCREW - 85833700 | $0.65 | Available, ships in 3-6 days |
| 10 | 824398 | Ferrari RF Antenna For Svr - 824398 | $72.10 | Special order, ships in 7-14 days |
| 13 | 55080828 | Ferrari Key Fob - 55080828 | $565.49 | Available, ships in 3-6 days |
| 13 | 865295 | Ferrari Key Fob - 865295 | Superseded | Order 55080828 instead |
| 13 | 865703 | Ferrari Key Fob - 865703 | $1,475.26 | Special order, ships in 7-14 days |
| 13 | 923359 | Ferrari Key Fob - 923359 | $516.33 | Special order, ships in 7-14 days |
| 14 | 865301 | Ferrari Screw - Torx M 1.4 x 5 - 865301 | $1.44 | Available, ships in 3-6 days |
| 15 | 310778 | Ferrari Passive Start Antenna - 310778 | $26.20 | Available, ships in 3-6 days |
| 16 | 748856 | Ferrari Door Ecu - 748856 | $639.27 | Special order, ships in 7-14 days |
| 17 | 773705 | Ferrari Rf Antenna Wiring Harness - 773705 | $118.16 | Special order, ships in 7-14 days |
| 18 | 293416 | Ferrari Master Dipole Anti-Lift Sensor - 293416 | $721.22 | Special order, ships in 7-14 days |
| 19 | 14040511 | Ferrari Nut - Self Locking - 14040511 | $1.11 | Special order, ships in 7-14 days |
| 20 | 789073 | Ferrari Washer - 789073 | $0.59 | Special order, ships in 7-14 days |
| 21 | 925991 | Ferrari Passive Start Antenna RF Gen - 925991 | $126.73 | Available, ships in 3-6 days |
| 22 | 55028848 | Ferrari Metal Plate - 55028848 | $46.75 | Special order, ships in 7-14 days |
| 23 | 824397 | Ferrari Driver Card For Svr - 824397 | $491.74 | Special order, ships in 7-14 days |
| 24 | 811665 | Ferrari Key And Block Kit - 811665 | $1,450.67 | Special order, ships in 7-14 days |
