Ferrari F80 — [ELECTRICAL SYSTEM] - F.12 - DCT GEARBOX SYSTEM (diagram 0195)
Exploded view of the [electrical system] - f.12 - dct gearbox system on the Ferrari F80, with 3 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

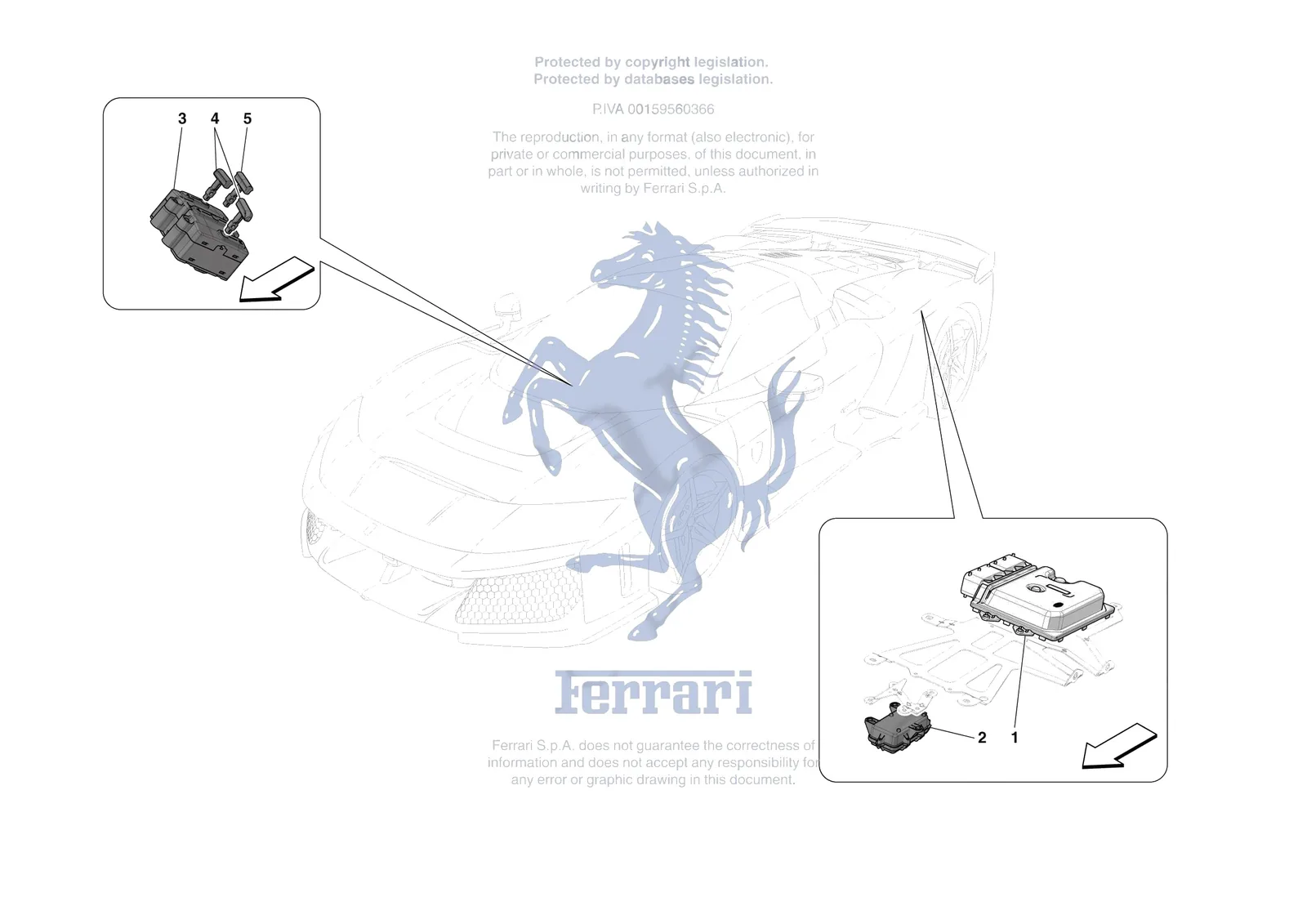

![Ferrari F80 [ELECTRICAL SYSTEM] - F.12 - DCT GEARBOX SYSTEM exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/f80/0195.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 834197 | Ferrari Buffer Battery - 834197 | $678.46 | Special order, ships in 7-14 days | |
| 1 | 855811 | Ferrari DCT Gearbox ECU - Marelli - 855811 | $2,817.08 | Special order, ships in 7-14 days |
| 2 | 863817 | Ferrari Buffer Battery - 863817 | $677.50 | Special order, ships in 7-14 days |
