Ferrari FF — Transmission Pipe (diagram 022)

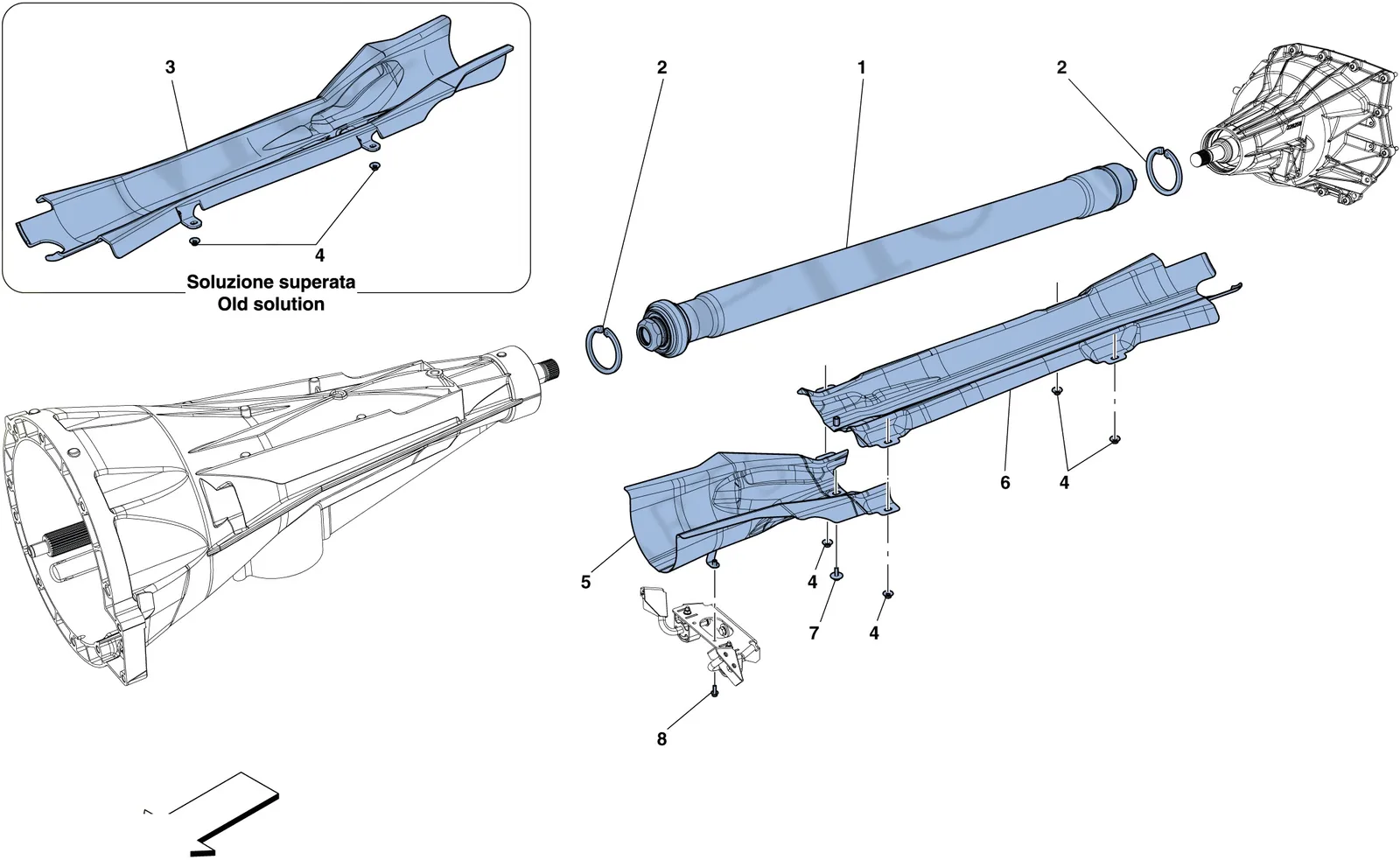

Exploded view of the transmission pipe on the Ferrari FF, with 13 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 263817 | Ferrari Transmission Shaft - 263817 | Superseded | Order 949441 instead |
| 1 | 316145 | Ferrari Transmission Shaft - 316145 | Superseded | Order 949441 instead |
| 1 | 340748 | Ferrari Transmission Shaft - 340748 | Superseded | Order 949441 instead |
| 2 | 13398476 | Ferrari Snap Ring - 13398476 | $0.71 | Special order, ships in 7-14 days |
| 3 | 272446 | Ferrari Transmission Shaft Heat Shield - 272446 | $881.17 | Special order, ships in 7-14 days |
| 4 | 14065921 | Ferrari Flanged Nut - 14065921 | $0.50 | Available, ships in 3-6 days |
| 4 | 14039614 | Ferrari NUT - 14039614 | $0.40 | Available, ships in 3-6 days |
| 5 | 293630 | Ferrari Short Heat Shield - 293630 | $237.40 | Special order, ships in 7-14 days |
| 6 | 293628 | Ferrari Long Heat Shield - 293628 | $134.61 | Special order, ships in 7-14 days |
| 7 | 81290900 | Ferrari Screw With Double Washer - 81290900 | $1.42 | In stock |
| 8 | 256323 | Ferrari Screw 5x16 - 256323 | $0.98 | Available, ships in 3-6 days |
| 15896214 | Ferrari Nut M6 x 5 - 15896214 | Superseded | Order 14039614 instead | |
| 949441 | Ferrari Transmission Shaft - 949441 | $8,105.61 | Special order, ships in 7-14 days |
