Ferrari FF — Front Brake Callipers (diagram 030)

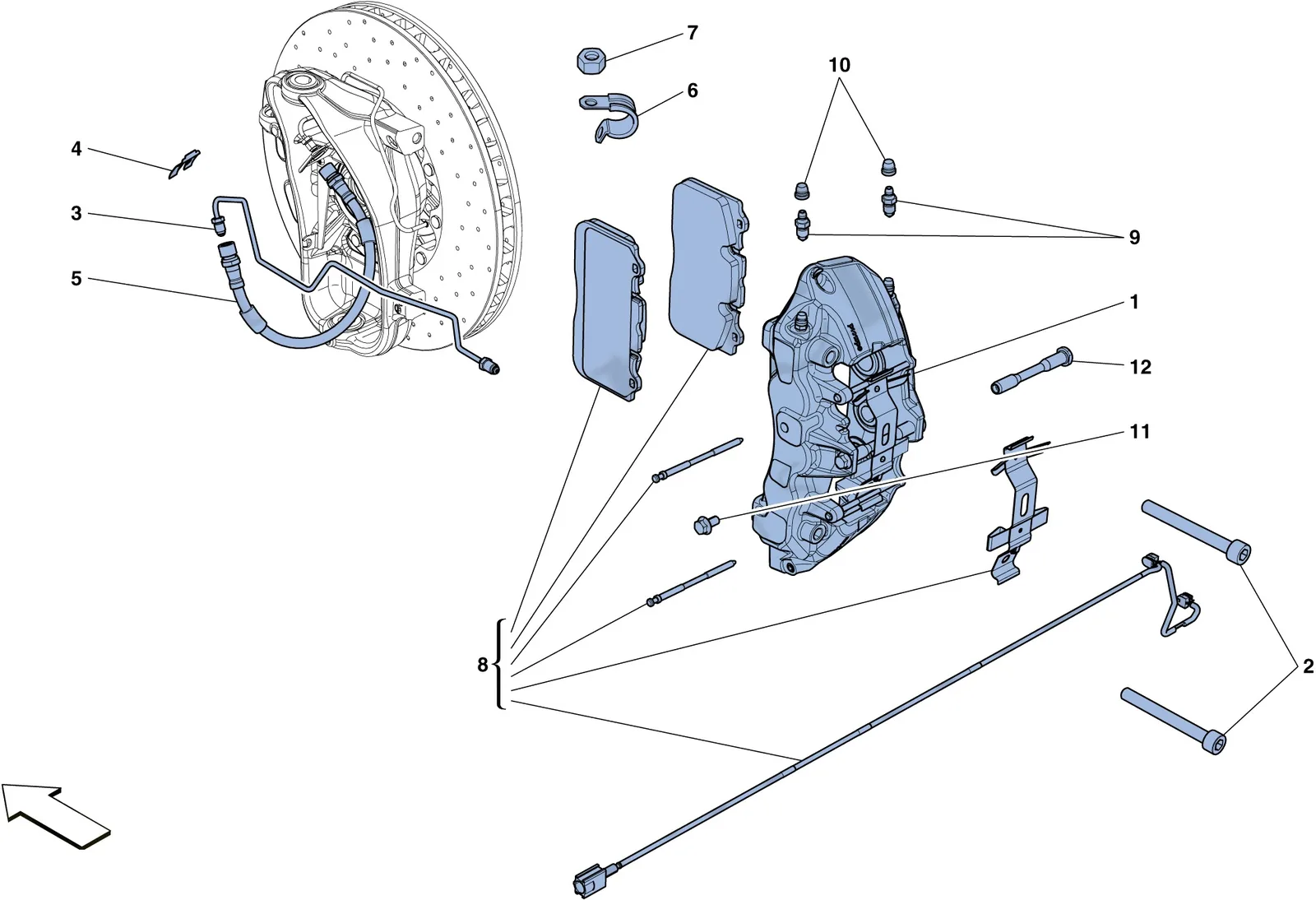

Exploded view of the front brake callipers on the Ferrari FF, with 34 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 274254 | Ferrari RH Front Caliper With Pads Black - 274254 | $5,719.22 | Special order, ships in 7-14 days |
| 1 | 275348 | Ferrari RH Front Caliper With Pads Anodised Black - 275348 | $5,308.93 | Special order, ships in 7-14 days |
| 1 | 276775 | Ferrari RH Front Caliper With Pads Dark Grey - 276775 | $6,297.36 | Special order, ships in 7-14 days |
| 1 | 267319 | Ferrari RH Front Caliper With Pads Silver - 267319 | $5,719.22 | Special order, ships in 7-14 days |
| 1 | 267318 | Ferrari RH Front Caliper With Pads Yellow - 267318 | $5,719.22 | Special order, ships in 7-14 days |
| 1 | 267317 | Ferrari RH Front Caliper With Pads Scuderia Red - 267317 | $5,719.22 | Special order, ships in 7-14 days |
| 1 | 267316 | Ferrari RH Front Caliper With Pads Red - 267316 | $5,719.22 | Special order, ships in 7-14 days |
| 1 | 286430 | Ferrari RH Front Caliper With Pads Gold - 286430 | Price on request | Contact us for price and availability |
| 1 | 286432 | Ferrari RH Front Caliper With Pads Blue - 286432 | $5,719.22 | Special order, ships in 7-14 days |
| 1 | 274252 | Ferrari LH Front Caliper With Pads Black - 274252 | $5,719.22 | Special order, ships in 7-14 days |
| 1 | 275347 | Ferrari LH Front Caliper With Pads Anodised Black - 275347 | $5,308.93 | Special order, ships in 7-14 days |
| 1 | 276770 | Ferrari LH Front Caliper With Pads Dark Grey - 276770 | $6,297.36 | Special order, ships in 7-14 days |
| 1 | 267315 | Ferrari LH Front Caliper With Pads Silver - 267315 | $5,719.22 | Special order, ships in 7-14 days |
| 1 | 267314 | Ferrari LH Front Caliper With Pads Yellow - 267314 | $5,719.22 | Special order, ships in 7-14 days |
| 1 | 267313 | Ferrari LH Front Caliper With Pads Scuderia Red - 267313 | $5,719.22 | Special order, ships in 7-14 days |
| 1 | 267312 | Ferrari LH Front Caliper With Pads Red - 267312 | $5,719.22 | Special order, ships in 7-14 days |
| 1 | 286431 | Ferrari LH Front Caliper With Pads Gold - 286431 | Price on request | Contact us for price and availability |
| 1 | 286433 | Ferrari LH Front Caliper With Pads Blue - 286433 | $5,719.22 | Special order, ships in 7-14 days |
| 2 | 195167 | Ferrari Screw TCEI M12 x 1.5 x 95 - 195167 | $34.94 | Available, ships in 3-6 days |
| 3 | 254603 | Ferrari Brake Pipe From Caliper To RH Hose - 254603 | $70.95 | Available, ships in 3-6 days |
| 3 | 254601 | Ferrari Brake Pipe From Caliper To LH Hose - 254601 | $68.50 | Special order, ships in 7-14 days |
| 4 | 116374 | Ferrari/Maserati Clip - 116374 | $3.20 | In stock |
| 5 | 254241 | Ferrari Brake Rubber Pipe - 254241 | Superseded | Order 977800 instead |
| 5 | 977800 | Ferrari Brake Hose L.376 - 977800 | $93.40 | Available, ships in 3-6 days |
| 6 | 10440890 | Ferrari P Clip Bracket With Sheath - 10440890 | $1.04 | Available, ships in 3-6 days |
| 7 | 14058411 | Ferrari Flanged Nut M6 x 6mm - 14058411 | $0.38 | Available, ships in 3-6 days |
| 8 | 70002035 | Ferrari Front Brake Pad Set With Spring - 70002035 | $2,042.38 | Available, ships in 3-6 days |
| 9 | 215665 | Ferrari Bleed Nipple Valve - 215665 | $78.66 | Available, ships in 3-6 days |
| 10 | 215666 | Ferrari Cap For Bleed Nipple - 215666 | $51.62 | Available, ships in 3-6 days |
| 11 | 198014 | Ferrari Screw - 198014 | $19.99 | Special order, ships in 7-14 days |
| 12 | 263210 | Ferrari Tie Rod - 263210 | $75.86 | Special order, ships in 7-14 days |
| 14048115 | Ferrari Nut - 14048115 | Superseded | Order 14058411 instead | |
| 14048611 | Ferrari Nut - 14048611 | Superseded | Order 14058411 instead | |
| 14048615 | Ferrari Nut - 14048615 | Superseded | Order 14058411 instead |
