Ferrari GTC4 Lusso T — Gearbox Oil Lubrication And Cooling System (diagram 031)

Exploded view of the gearbox oil lubrication and cooling system on the Ferrari GTC4 Lusso T, with 65 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

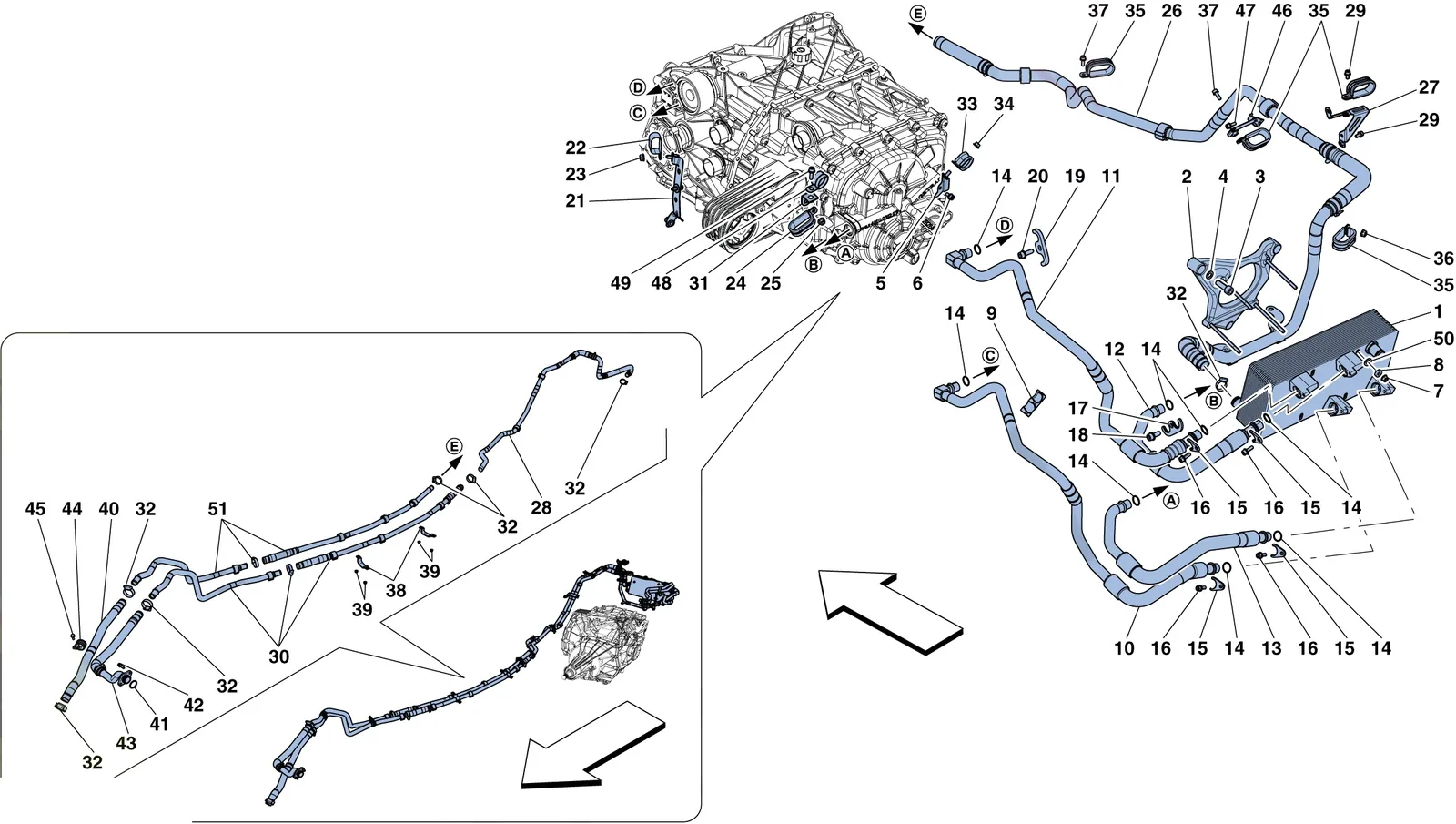

Ferrari GTC4 Lusso T Gearbox Oil Lubrication And Cooling System exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1326420Ferrari Oil Heat Exchanger - 326420$2,566.51Special order, ships in 7-14 days
2318265Ferrari Oil Heat Exchanger Mounting Frame - 318265$181.93Special order, ships in 7-14 days
314307534Ferrari Screw M10 x 1.25 x 30 TCEI - 14307534$5.65Available, ships in 3-6 days
412648321Ferrari Washer - 12648321$1.49Special order, ships in 7-14 days
5313795Ferrari Bracket - 313795$34.25Special order, ships in 7-14 days
6233600Ferrari/Maserati Screw - 233600$1.98In stock
714058421Ferrari Nut M6 x 6 - 14058421$2.38Available, ships in 3-6 days
813604015Ferrari Shim - 13604015$1.67Special order, ships in 7-14 days
9264810Ferrari Shim - 264810$8.59Special order, ships in 7-14 days
10334873Ferrari Atf Fluid Delivery Pipe - 334873$688.45Special order, ships in 7-14 days
11262813Ferrari ATF Fluid Return Pipe - 262813$737.61Special order, ships in 7-14 days
12334874Ferrari Gl Oil Return Pipe - 334874$393.38Special order, ships in 7-14 days
13334875Ferrari Gl Oil Delivery Pipe - 334875$417.97Special order, ships in 7-14 days
14254644Ferrari O-Ring Gasket - 254644$0.77Available, ships in 3-6 days
15262827Ferrari Fork - 262827$31.93Special order, ships in 7-14 days
16231617Ferrari Screw M6 x 18 TCEI - 231617SupersededOrder 14433124 instead
17261824Ferrari Fork - 261824$49.14Special order, ships in 7-14 days
18248471Ferrari Screw 8x20 - 248471$2.07Available, ships in 3-6 days
19236479Ferrari Fork - 236479$41.76Special order, ships in 7-14 days
20231628Ferrari Screw 8x25 - 231628$1.15Special order, ships in 7-14 days
21313202Ferrari Left Side Bracket - 313202$56.27Special order, ships in 7-14 days
22265771Ferrari Bracket - 265771$4.35Special order, ships in 7-14 days
2314040611Ferrari Nut M6 - 14040611$0.57Available, ships in 3-6 days
2461712500Ferrari P Clip Bracket - 61712500$2.29In stock
26313182Ferrari Rear Water Delivery Pipe - 313182$1,297.30Special order, ships in 7-14 days
27322932Ferrari Bracket - Cooling Pipe - 322932$61.16Special order, ships in 7-14 days
28313181Ferrari Rear Water Return Pipe - 313181$881.17Special order, ships in 7-14 days
30281462Ferrari Water Return Pipe Complete - 281462$587.44Available, ships in 3-6 days
31142060Ferrari Bracket - 142060$12.88Available, ships in 3-6 days
32262111Ferrari Screw Collar - 262111$3.03Special order, ships in 7-14 days
3310442090Ferrari P Clip Bracket With Sheath D26 - 10442090$1.42Available, ships in 3-6 days
35248454Ferrari Bracket With Sheath - 248454$15.49Special order, ships in 7-14 days
38266783Ferrari Bracket - 266783$24.07Special order, ships in 7-14 days
40336732Ferrari Engine Compartment Water Del - 336732$685.34Special order, ships in 7-14 days
41264447Ferrari Toroid Ring - 264447$0.59Special order, ships in 7-14 days
42231619Ferrari Screw M6 x 22 - 231619$0.54Available, ships in 3-6 days
43327733Ferrari Front Water Return Hose - 327733$212.92Special order, ships in 7-14 days
4410442290Ferrari P Clip Bracket With Sheath - 10442290$1.42Special order, ships in 7-14 days
4516286024Ferrari SCREW - 16286024$0.38Available, ships in 3-6 days
46273830Ferrari Bracket - 273830$66.07Special order, ships in 7-14 days
4810442190Ferrari P Clip Bracket With Sheath - 10442190$1.42Available, ships in 3-6 days
5012647624Ferrari Washer D 6.45-16x2 - 12647624$0.19Available, ships in 3-6 days
51281461Ferrari Water Delivery Pipe Complete - 281461$465.04Available, ships in 3-6 days
262812Ferrari ATF Fluid Delivery Pipe - 262812$783.26Special order, ships in 7-14 days
271669Ferrari Central Water Delivery Pipe - 271669SupersededOrder 281461 instead
271668Ferrari Central Water Return Pipe - 271668SupersededOrder 281462 instead
311280Ferrari Clip - 311280SupersededOrder 248454 instead
262112Ferrari Collar - 262112SupersededOrder 262111 instead
291949Ferrari Collar - 291949SupersededOrder 248454 instead
275894Ferrari Front Water Delivery Pipe Complete - 275894SupersededOrder 281461 instead
262815Ferrari GL Oil Delivery Pipe - 262815$562.96Special order, ships in 7-14 days
262814Ferrari GL Oil Return Pipe - 262814$465.04Special order, ships in 7-14 days
262811Ferrari Oil Heat Exchanger - 262811SupersededOrder 326420 instead
266826Ferrari Oil Heat Exchanger - 266826SupersededOrder 326420 instead
291225Ferrari P clip Bracket With Sheath - 291225$7.86Special order, ships in 7-14 days
14432221Ferrari Screw - 14432221SupersededOrder 231619 instead
14433121Ferrari Screw - 14433121SupersededOrder 231617 instead
834367Ferrari Screw 8x25 - 834367SupersededOrder 231628 instead
10860370Ferrari Screw Collar - 10860370$3.26Special order, ships in 7-14 days
13127770Ferrari Screw Collar - 13127770$2.82Special order, ships in 7-14 days
268210Ferrari Screw Collar - 268210$6.32Special order, ships in 7-14 days
14432224Ferrari Screw M6 x 22 - 14432224SupersededOrder 231619 instead
276790Ferrari Water Delivery Pipe Complete - 276790SupersededOrder 281461 instead
275895Ferrari Water Return Pipe Complete - 275895SupersededOrder 281462 instead
276792Ferrari Water Return Pipe Complete - 276792SupersededOrder 281462 instead

All GTC4 Lusso T diagrams
