Ferrari GTC4 Lusso — Bodyshell - External Trim (diagram 100)

Exploded view of the bodyshell - external trim on the Ferrari GTC4 Lusso, with 17 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

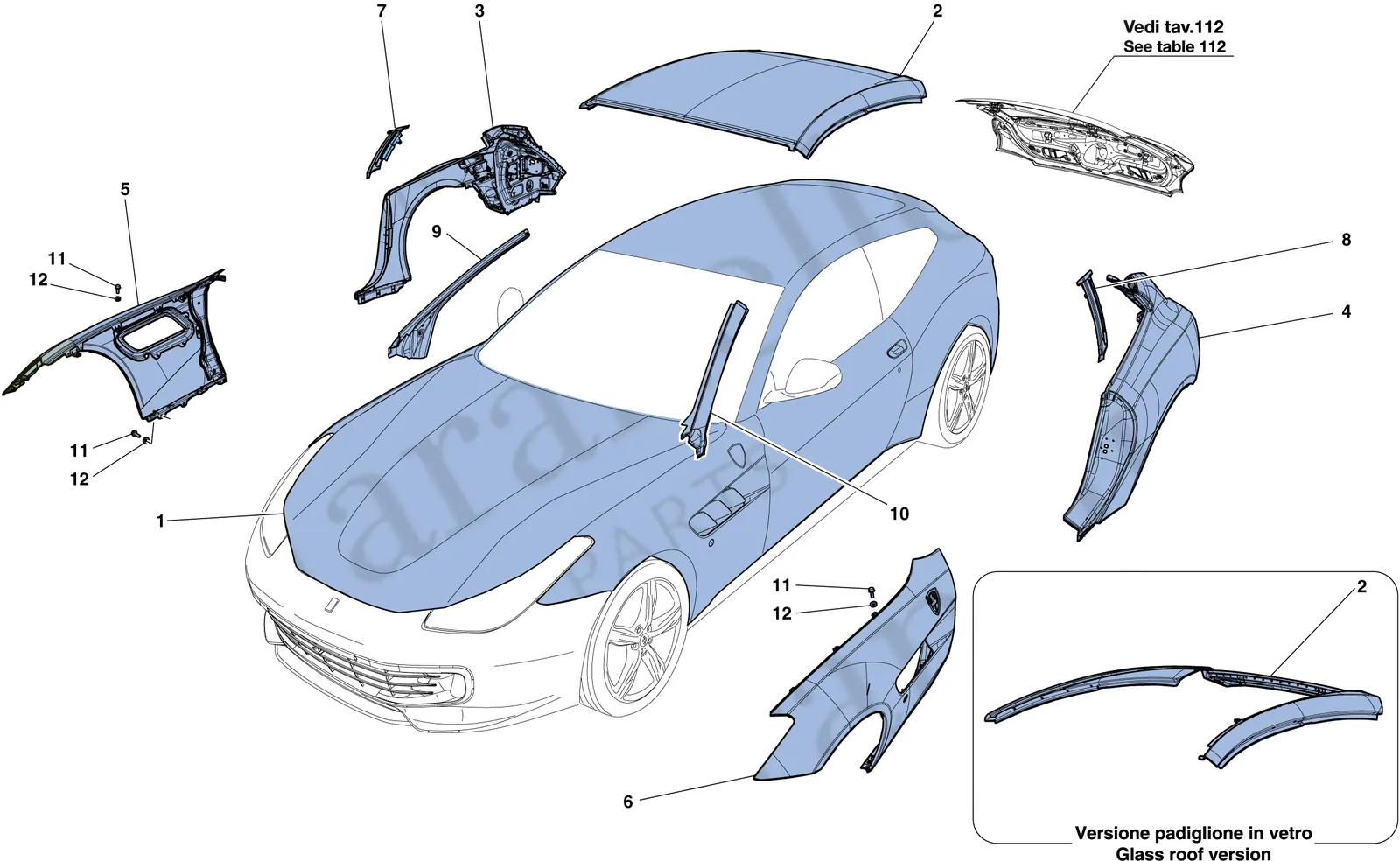

Ferrari GTC4 Lusso Bodyshell - External Trim exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
286545711Ferrari Outer Roof Skin - 86545711$7,126.50Special order, ships in 7-14 days
286778711Ferrari Outer Roof Skin - 86778711$7,937.76Special order, ships in 7-14 days
387783111Ferrari Complete RH Rear Flank Panel - 87783111$10,590.68Special order, ships in 7-14 days
487782711Ferrari Complete LH Rear Flank - 87782711$13,800.77Contact us to order
586625211Ferrari COMPL. RH FRONT FENDER - 86625211$7,296.17Contact us to order
586519911Ferrari COMPL. RH FRONT FENDER - 86519911$8,257.66Contact us to order
686502511Ferrari COMPL. LH FRONT FENDER - 86502511$7,296.17Contact us to order
686520111Ferrari COMPL. LH FRONT FENDER - 86520111$8,257.66Contact us to order
787939011Ferrari RH Upper External Pillar Tri - 87939011$367.14Special order, ships in 7-14 days
887938911Ferrari LH Upper External Pillar Tri - 87938911$367.14Special order, ships in 7-14 days
983639111Ferrari RH External Pillar Trim - 83639111$3,732.24Special order, ships in 7-14 days
1083639211Ferrari LH External Pillar Trim - 83639211$3,732.24Special order, ships in 7-14 days
1116286121Ferrari Screw M6 x 20 - 16286121$1.23Available, ships in 3-6 days
1212643724Ferrari/Maserati Washer - 12643724$0.20In stock
12643711Ferrari Washer - 12643711SupersededOrder 12643724 instead
12643721Ferrari Washer - 12643721SupersededOrder 12643724 instead
14499301Ferrari Washer - 14499301SupersededOrder 12643724 instead

All GTC4 Lusso diagrams
