Ferrari GTC4 Lusso — Doors - Power Window And Rear View Mirror (diagram 116)

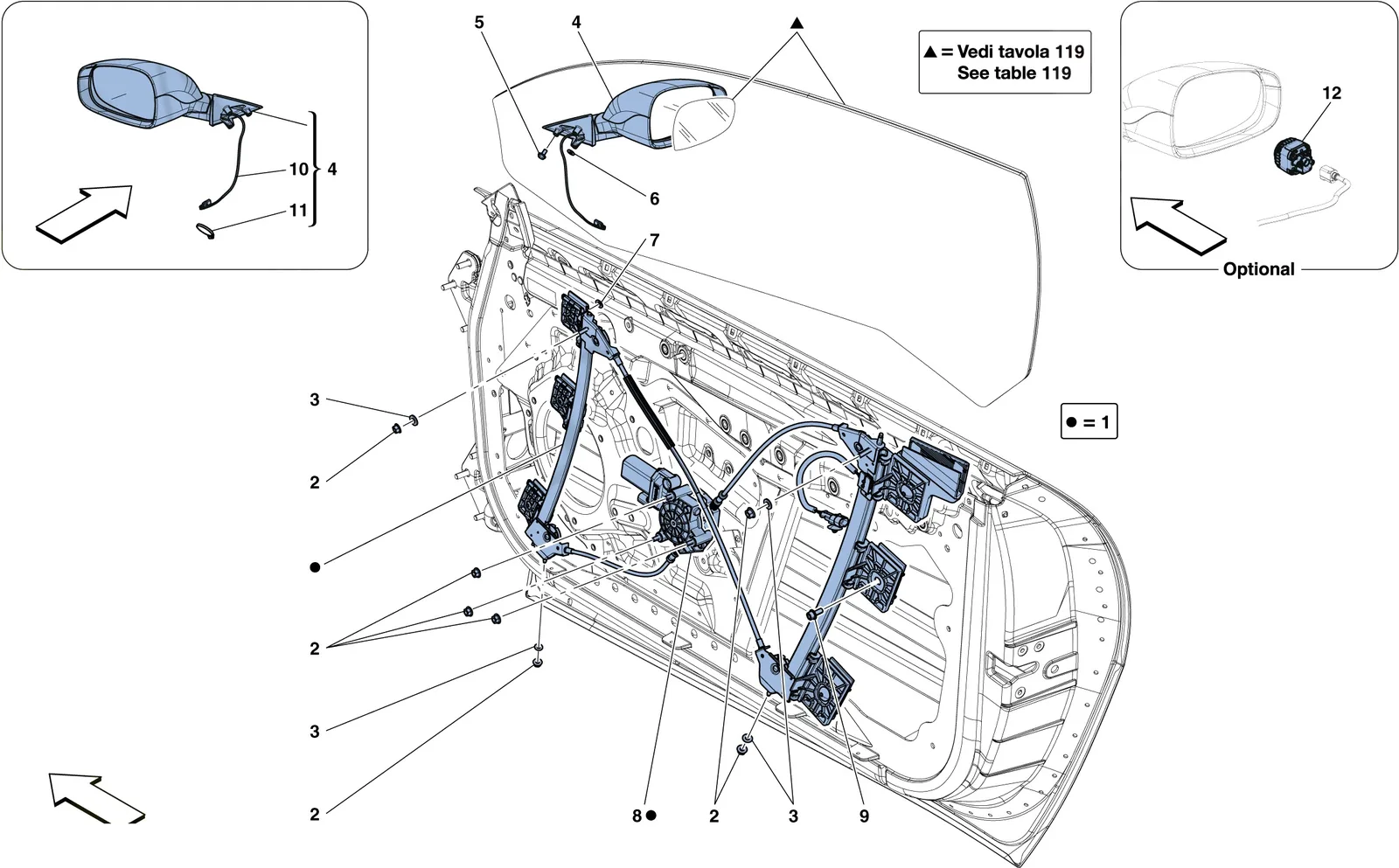

Exploded view of the doors - power window and rear view mirror on the Ferrari GTC4 Lusso, with 22 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 82127500 | Ferrari RH Door Glass Mechanism - 82127500 | $957.32 | Available, ships in 3-6 days |
| 1 | 82127600 | Ferrari LH Door Glass Mechanism - 82127600 | $957.32 | Special order, ships in 7-14 days |
| 2 | 14059214 | Ferrari Flanged Nut M6 - 14059214 | $0.38 | Available, ships in 3-6 days |
| 3 | 14498801 | Ferrari Washer - 14498801 | $0.19 | Available, ships in 3-6 days |
| 4 | 87217910 | Ferrari RH External Rear View Mirror - 87217910 | $2,072.17 | Special order, ships in 7-14 days |
| 4 | 87218010 | Ferrari LH External Rear View Mirror - 87218010 | $2,109.47 | Special order, ships in 7-14 days |
| 5 | 66294400 | Ferrari Screw M6 x 12 TBFEI - 66294400 | $2.82 | Special order, ships in 7-14 days |
| 6 | 10519424 | Ferrari Washer 1.6mm 6.40x11.95x1.6 - 10519424 | $0.06 | Available, ships in 3-6 days |
| 7 | 13579224 | Ferrari Washer - 13579224 | $0.65 | Available, ships in 3-6 days |
| 8 | 86775600 | Ferrari RH Window Lift Engine - 86775600 | $435.14 | Special order, ships in 7-14 days |
| 8 | 86775500 | Ferrari LH Window Lift Engine - 86775500 | $435.14 | Special order, ships in 7-14 days |
| 9 | 88770800 | Ferrari Screw - 88770800 | $7.63 | Special order, ships in 7-14 days |
| 10 | 864413 | Ferrari LH External Mirror Temperature Sensor - 864413 | $391.61 | Special order, ships in 7-14 days |
| 11 | 145854 | Ferrari Cable tie 200mm - 145854 | $0.57 | Available, ships in 3-6 days |
| 86141300 | Ferrari Screw - 86141300 | Superseded | Order 66294400 instead | |
| 14496406 | Ferrari Spring Washer - 14496406 | Superseded | Order 10519424 instead | |
| 10519401 | Ferrari Washer - 10519401 | Superseded | Order 10519424 instead | |
| 125516 | Ferrari Washer - 125516 | Superseded | Order 10519424 instead | |
| 13550201 | Ferrari Washer - 13550201 | Superseded | Order 10519424 instead | |
| 14496405 | Ferrari Washer - 14496405 | Superseded | Order 10519424 instead | |
| 14496421 | Ferrari Washer - 14496421 | Superseded | Order 10519424 instead | |
| 14496424 | Ferrari Washer - 14496424 | Superseded | Order 10519424 instead |
