Ferrari GTC4 Lusso — VEHICLE ECUs (diagram 135)

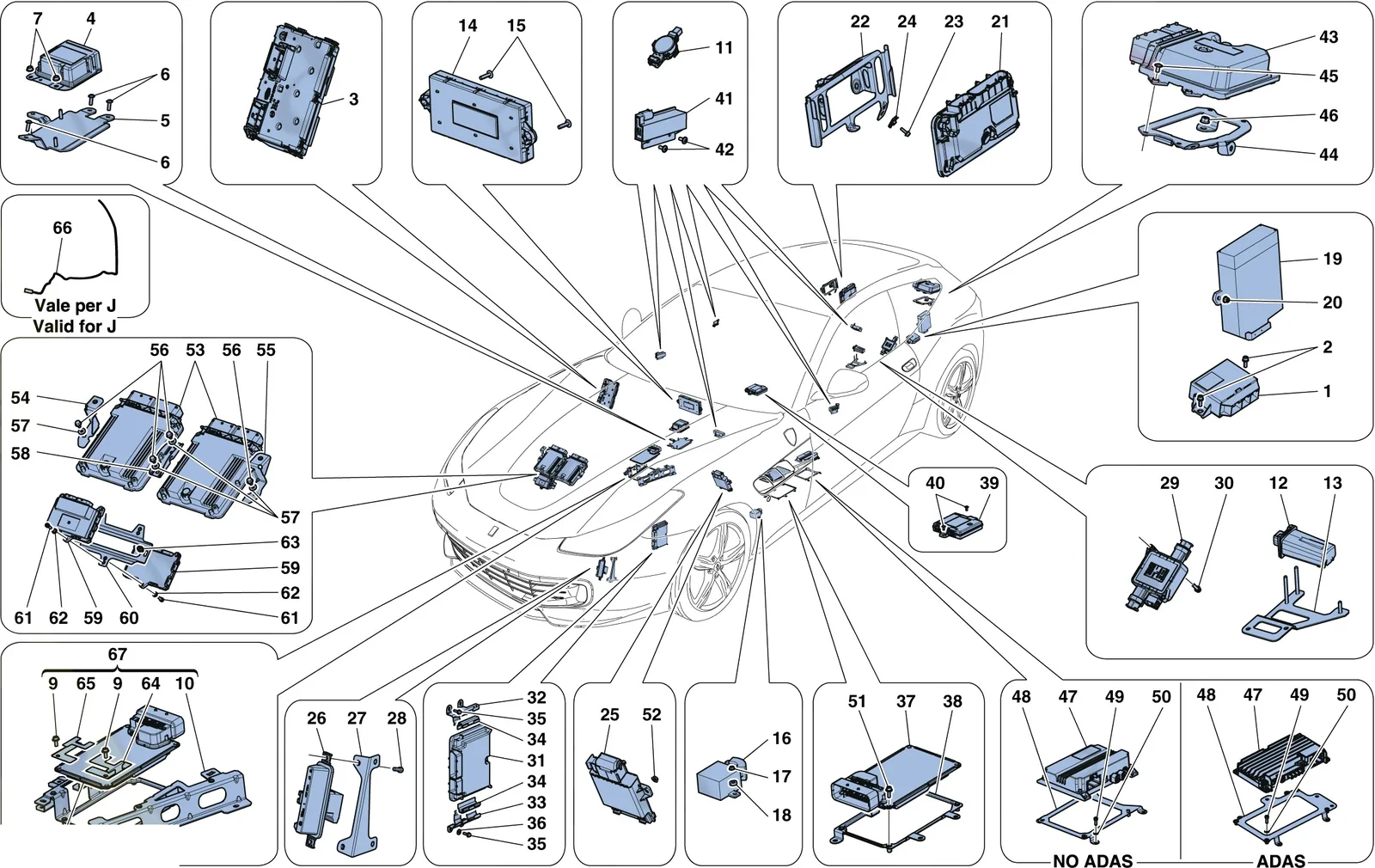

Exploded view of the vehicle ecus on the Ferrari GTC4 Lusso, with 89 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari GTC4 Lusso VEHICLE ECUs exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1315391Ferrari Parking Sensor Node ECU - 315391$391.61Special order, ships in 7-14 days
2231617Ferrari Screw M6 x 18 TCEI - 231617SupersededOrder 14433124 instead
3315383Ferrari Dashboard Node - 315383SupersededOrder 863237 instead
3342062Ferrari Dashboard Node - 342062SupersededOrder 863237 instead
3863237Ferrari Dashboard Node - 863237$2,447.75Special order, ships in 7-14 days
4315396Ferrari Centralina Airbag - 315396SupersededOrder 843150 instead
4340216Ferrari Airbag Ecu - 340216SupersededOrder 843150 instead
4843150Ferrari Airbag Ecu - 843150$954.60Special order, ships in 7-14 days
5325990Ferrari Airbag ECU Bracket - 325990$88.09Special order, ships in 7-14 days
665377400Ferrari Screw M6 x 1 x 18 - 65377400$3.91Available, ships in 3-6 days
714059211Ferrari Flanged Nut - 14059211$0.13Available, ships in 3-6 days
8312262Ferrari Magneride Suspension Ecu - 312262$1,860.28Special order, ships in 7-14 days
914303474Ferrari Screw - 14303474$0.59Available, ships in 3-6 days
10326348Ferrari Magneride ECU Bracket - 326348SupersededOrder 342888 instead
11320089Ferrari Rain And Twilight Sensor - 320089$393.93Special order, ships in 7-14 days
12314815Ferrari Tpms ECU Antenna - 314815$983.50Special order, ships in 7-14 days
12314817Ferrari Tpms ECU Antenna - 314817$983.50Special order, ships in 7-14 days
13322469Ferrari TPMS ECU Bracket - 322469$73.41Special order, ships in 7-14 days
14317230Ferrari A/C Controls Black Box - 317230SupersededOrder 343009 instead
14343009Ferrari A/C Controls Black Box - 343009$1,591.03Special order, ships in 7-14 days
1585692300Ferrari Screw M5 x 20 TBFTX - 85692300$0.65Available, ships in 3-6 days
16272121Ferrari Power Steering Control Ecu - 272121$660.87Special order, ships in 7-14 days
1714059111Ferrari Flanged Nut M5 - 14059111$0.08Available, ships in 3-6 days
1714039511Ferrari Nut - 14039511$0.54Available, ships in 3-6 days
1865708600Ferrari Bush - 65708600$11.54Special order, ships in 7-14 days
19315395Ferrari Centralina Power Liftgate - 315395$1,639.98Special order, ships in 7-14 days
20228265Ferrari Nut 6x1x9 - 228265$0.40Available, ships in 3-6 days
21315392Ferrari Nsv Centralina Sollevat - 315392$1,542.07Special order, ships in 7-14 days
22270164Ferrari Bracket - 270164$178.65Available, ships in 3-6 days
2316285127Ferrari Screw M5 x 16 - 16285127$1.05Special order, ships in 7-14 days
2466927700Ferrari Bracket with Collar - 66927700$1.99Available, ships in 3-6 days
25264097Ferrari Voltage Stabilizer - 264097$969.98In stock
26315386Ferrari Adaptive Headlight Node Ecu - 315386$491.74Special order, ships in 7-14 days
27277468Ferrari Node Fixing Bracket - 277468$46.75Available, ships in 3-6 days
2814304220Ferrari Screw 5x16 - 14304220$0.17Available, ships in 3-6 days
29294559Ferrari PWM Command Signal For Fuel - 294559SupersededOrder 849386 instead
30231619Ferrari Screw M6 x 22 - 231619$0.54Available, ships in 3-6 days
31315385Ferrari 4Wd Ecu - 315385SupersededOrder 766005 instead
31766005Ferrari 4Wd ECU - 766005$1,884.75Special order, ships in 7-14 days
32275483Ferrari Upper Bracket - 275483$22.71Available, ships in 3-6 days
33275484Ferrari Lower Bracket - 275484$22.71Available, ships in 3-6 days
34191531Ferrari Plug - 191531$5.40Special order, ships in 7-14 days
3612638124Ferrari Washer - 12638124$0.08Available, ships in 3-6 days
37312311Ferrari Centralina Side Slipangle Co - 312311$1,958.19Special order, ships in 7-14 days
38326349Ferrari Cntr Susp. Control ECU Brack - 326349$93.00Special order, ships in 7-14 days
39328097Ferrari Passive Start ECU - 328097$614.67Special order, ships in 7-14 days
39328098Ferrari Passive Start ECU - 328098$614.67Special order, ships in 7-14 days
4085692200Ferrari SCREW M5 x 12 - 85692200$0.65Available, ships in 3-6 days
41310778Ferrari Passive Start Antenna - 310778$26.20Available, ships in 3-6 days
43330778Ferrari DCT Gearbox ECU - 330778$2,341.71Special order, ships in 7-14 days
43304001Ferrari DCT Gearbox ECU - 304001$2,839.39Special order, ships in 7-14 days
44313218Ferrari Dct ECU Mounting Bracket - 313218$63.61Special order, ships in 7-14 days
4585692000Ferrari SCREW - 85692000$0.65Available, ships in 3-6 days
4614040611Ferrari Nut M6 - 14040611$0.57Available, ships in 3-6 days
47336274Ferrari Parking Camera Ecu - 336274$3,252.02Special order, ships in 7-14 days
47818616Ferrari Surround View Ecu - 818616$5,000.44Special order, ships in 7-14 days
48311387Ferrari Bracket - 311387$83.20Special order, ships in 7-14 days
48823834Ferrari Compl. Surround View ECU Mou - 823834$80.75Special order, ships in 7-14 days
4914303024Ferrari Allen Screw M4 x 12 TCEI - 14303024$1.63Available, ships in 3-6 days
5012601074Ferrari Washer - 12601074$0.06Available, ships in 3-6 days
51256323Ferrari Screw 5x16 - 256323$0.98Available, ships in 3-6 days
5212578111Ferrari Flanged Nyloc Nut - 12578111$0.50Available, ships in 3-6 days
53337737Ferrari Ignition ECU - 337737$2,442.40Special order, ships in 7-14 days
53291539Ferrari Ignition ECU - 291539$2,788.11Special order, ships in 7-14 days
54328983Ferrari RH Bracket Motronic ECU - 328983$56.27Special order, ships in 7-14 days
55328984Ferrari LH Bracket Motronic ECU - 328984$56.27Special order, ships in 7-14 days
5616296924Ferrari Screw M6 x 14 TE - 16296924$0.54Available, ships in 3-6 days
5712647624Ferrari Washer D 6.45-16x2 - 12647624$0.19Available, ships in 3-6 days
58257695Ferrari Centre Bracket - 257695$36.69Special order, ships in 7-14 days
59313125Ferrari Ignition ECU - 313125$2,084.11Special order, ships in 7-14 days
60317658Ferrari Central Fixing Bracket - 317658$163.97Special order, ships in 7-14 days
6114304224Ferrari Screw M5 x 16 - 14304224$0.27Available, ships in 3-6 days
6212637824Ferrari Washer - 12637824$0.13Available, ships in 3-6 days
63233600Ferrari/Maserati Screw - 233600$1.98In stock
64338212Ferrari Bracket - 338212SupersededOrder 342888 instead
65338213Ferrari Bracket - 338213SupersededOrder 342888 instead
66339749Ferrari Passive Start Antenna - 339749$435.14Special order, ships in 7-14 days
67342888Ferrari Bracket - 342888$244.76Special order, ships in 7-14 days
279430Ferrari DCT Gearbox ECU - 279430SupersededOrder 304001 instead
14039614Ferrari NUT - 14039614$0.40Available, ships in 3-6 days
310779Ferrari Passive Start Control Unit - 310779SupersededOrder 328097 instead
317012Ferrari Passive Start ECU - 317012SupersededOrder 328098 instead
849386Ferrari PWM Command Signal for Fuel Pumps - 849386$688.45Special order, ships in 7-14 days
14432221Ferrari Screw - 14432221SupersededOrder 231619 instead
14433121Ferrari Screw - 14433121SupersededOrder 231617 instead
81911200Ferrari Screw - 81911200SupersededOrder 85692200 instead
68176300Ferrari Screw 5x12 - 68176300SupersededOrder 85692200 instead
14432224Ferrari Screw M6 x 22 - 14432224SupersededOrder 231619 instead
12601070Ferrari Washer - 12601070$0.12Available, ships in 3-6 days
