Ferrari La Ferrari — Timing System - Drive (diagram 006)

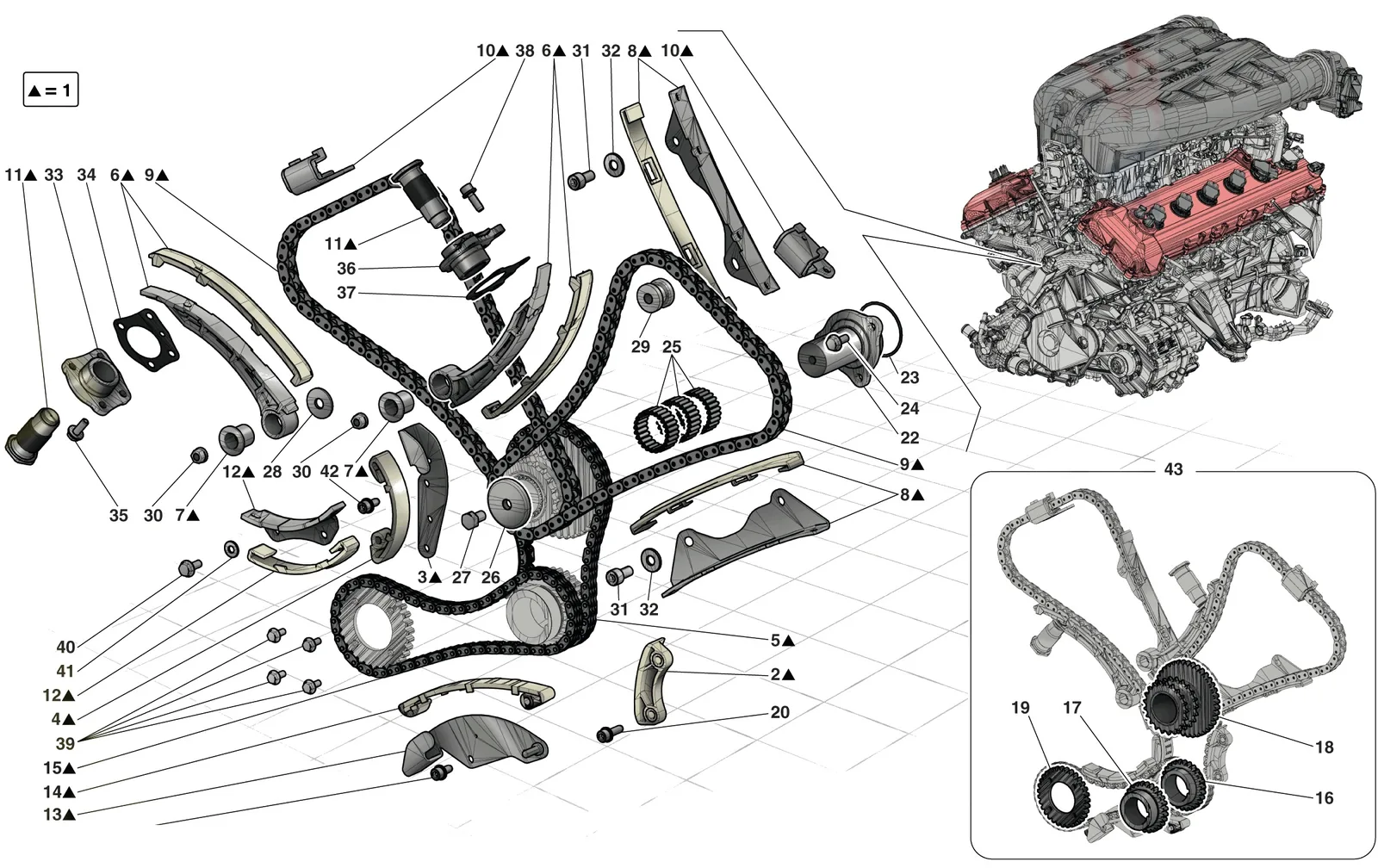

Exploded view of the timing system - drive on the Ferrari La Ferrari, with 58 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari La Ferrari Timing System - Drive exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
1299456Ferrari Valve Timing And Pump Drive System - 299456SupersededOrder 295389 instead
1315600Ferrari Valve Timing System - 315600$3,615.69Special order, ships in 7-14 days
2309750Ferrari Fixed Shoe - 309750$120.46Special order, ships in 7-14 days
2265178Ferrari Fixed Shoe - 265178$119.91Special order, ships in 7-14 days
3265180Ferrari Mounting - 265180$117.99Special order, ships in 7-14 days
4257626Ferrari Shoe - 257626$152.41Special order, ships in 7-14 days
5295397Ferrari Primary Chain - 295397$1,639.98Special order, ships in 7-14 days
6260614Ferrari Mobile Shoe - 260614$663.86Special order, ships in 7-14 days
7175303Ferrari Bush For Timing Guide - 175303$56.52Special order, ships in 7-14 days
8198034Ferrari Fixed Shoe Complete - 198034$113.08Special order, ships in 7-14 days
9254263Ferrari Chain - 254263$168.67Special order, ships in 7-14 days
10239566Ferrari Fixed Shoe - 239566$76.19Special order, ships in 7-14 days
11267099Ferrari Hydraulic Chain Tensioner - 267099$181.11Special order, ships in 7-14 days
12277283Ferrari Fixed Shoe - 277283$565.49Special order, ships in 7-14 days
13265712Ferrari Mounting - 265712$565.49Special order, ships in 7-14 days
14272014Ferrari Mobile Shoe - 272014$108.16Special order, ships in 7-14 days
15271880Ferrari Chain - 271880$213.88Special order, ships in 7-14 days
16299590Ferrari Internal Crankshaft Gear - 299590$442.56Special order, ships in 7-14 days
17301217Ferrari External Crankshaft Gear - 301217$319.62Special order, ships in 7-14 days
18299589Ferrari Drive Gear - 299589$737.61Special order, ships in 7-14 days
19288731Ferrari Pump Drive Gear - 288731Price on requestContact us for price and availability
20282395Ferrari Screw M6 x 20 - 282395$1.36Special order, ships in 7-14 days
21282392Ferrari Screw 6x14 - 282392$0.96Available, ships in 3-6 days
22289896Ferrari Mounting - 289896$319.62Special order, ships in 7-14 days
23154191Ferrari O-Ring - 154191$1.42In stock
24181336Ferrari Screw M6 X 16 - 181336$5.14Available, ships in 3-6 days
25187742Ferrari Roller Bearing - 187742$18.55Special order, ships in 7-14 days
26194262Ferrari Spacer - 194262$63.90Special order, ships in 7-14 days
2716043124Ferrari Screw M8 x 14 - 16043124$0.33Special order, ships in 7-14 days
28175306Ferrari Washer - 175306$7.84Special order, ships in 7-14 days
29183929Ferrari Bush - 183929$15.28Special order, ships in 7-14 days
30177778Ferrari Nut Locking M8 x 7 - 177778$2.82Available, ships in 3-6 days
3114306224Ferrari Screw M8 x 16 - 14306224$0.38Available, ships in 3-6 days
32163759Ferrari Washer - 163759$26.20Special order, ships in 7-14 days
33268314Ferrari Bushing - 268314$77.84Special order, ships in 7-14 days
34317023Ferrari Gasket - 317023$15.72Special order, ships in 7-14 days
34267198Ferrari Gasket - 267198$15.91Special order, ships in 7-14 days
36252512Ferrari Bushing - 252512$149.96Special order, ships in 7-14 days
37317022Ferrari Gasket - 317022$5.14Available, ships in 3-6 days
37250055Ferrari Gasket - 250055SupersededOrder 317022 instead
38231617Ferrari Screw M6 x 18 TCEI - 231617SupersededOrder 14433124 instead
39186668Ferrari Screw M5 X 12 - 186668$28.39Special order, ships in 7-14 days
41276781Ferrari Washer - 276781$0.79Special order, ships in 7-14 days
43301584Ferrari Valve Timing Gear Spockets - 301584Price on requestContact us for price and availability
16043121Ferrari Bolt 8X15 Uni 188 - 16043121SupersededOrder 16043124 instead
265105Ferrari Chain - 265105Price on requestContact us for price and availability
295376Ferrari Chain - 295376$176.22Special order, ships in 7-14 days
312629Ferrari Chain - 312629$737.61Special order, ships in 7-14 days
286228Ferrari Drive Gear - 286228$611.91Special order, ships in 7-14 days
286227Ferrari External Crankshaft Gear - 286227SupersededOrder 301217 instead
286226Ferrari Internal Crankshaft Gear - 286226$342.66Special order, ships in 7-14 days
249904Ferrari Mobile Shoe - 249904SupersededOrder 272014 instead
64342800Ferrari Nut - 64342800SupersededOrder 177778 instead
133215Ferrari Nut Locking - 133215SupersededOrder 177778 instead
14433121Ferrari Screw - 14433121SupersededOrder 231617 instead
290129Ferrari Valve Timing And Pump Drive System - 290129SupersededOrder 295389 instead
295389Ferrari Valve Timing And Pump Drive System - 295389$2,550.32Special order, ships in 7-14 days
290130Ferrari Valve Timing Gear Sprockets - 290130Price on requestContact us for price and availability

All La Ferrari diagrams
