Ferrari La Ferrari — Electric Motor (diagram 019)

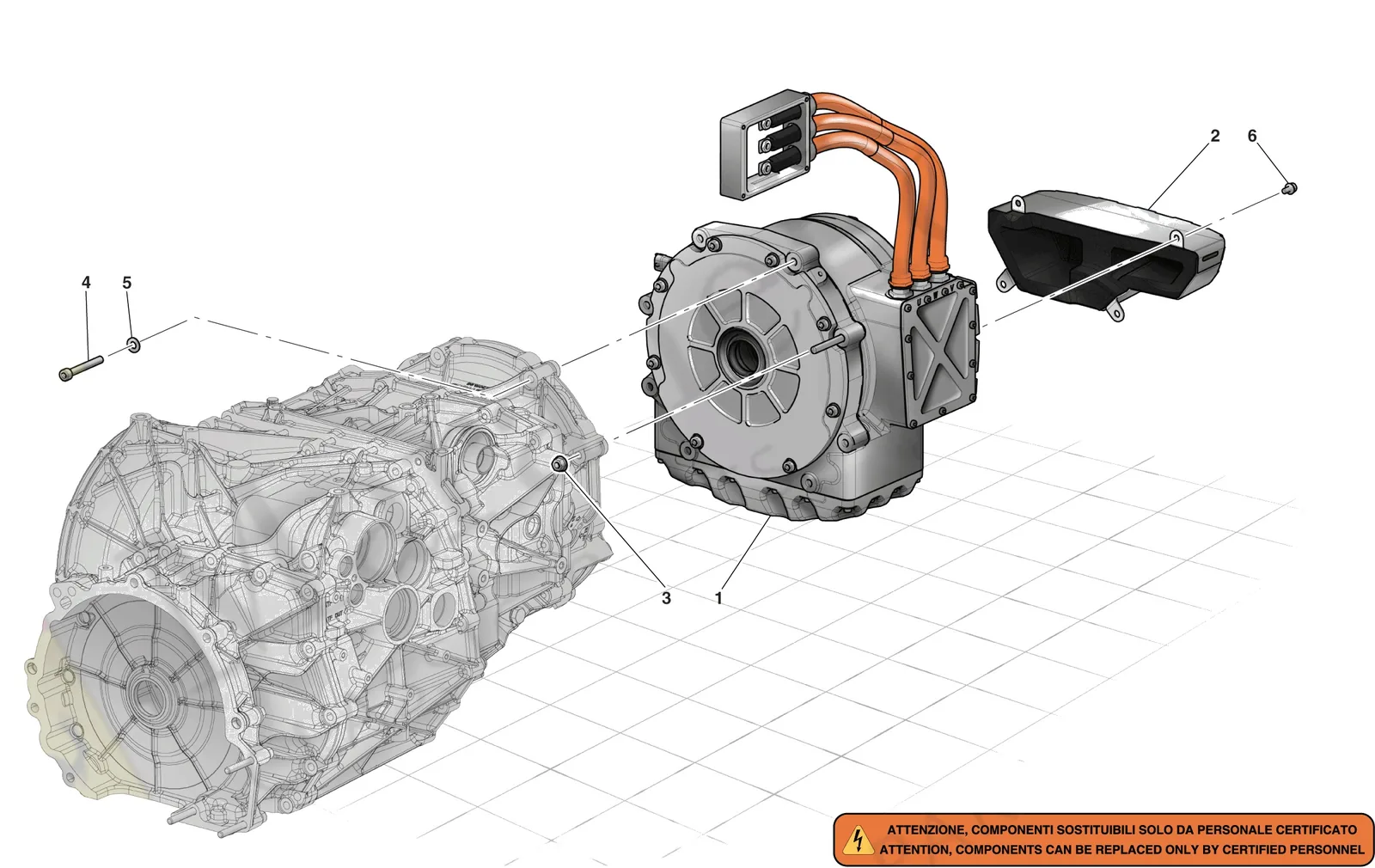

Exploded view of the electric motor on the Ferrari La Ferrari, with 6 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 297296 | Ferrari Electric Motor - 297296 | $25,736.17 | Special order, ships in 7-14 days |
| 2 | 296439 | Ferrari ME1 Crash Box Complete - 296439 | $416.09 | Special order, ships in 7-14 days |
| 3 | 14059321 | Ferrari Nut - 14059321 | $0.54 | Special order, ships in 7-14 days |
| 4 | 14308934 | Ferrari Screw - 14308934 | $1.04 | Special order, ships in 7-14 days |
| 5 | 14496524 | Ferrari Washer - 14496524 | $0.19 | Available, ships in 3-6 days |
| 6 | 233600 | Ferrari/Maserati Screw - 233600 | $1.98 | In stock |
