Ferrari La Ferrari — Evaporator Unit (diagram 042)

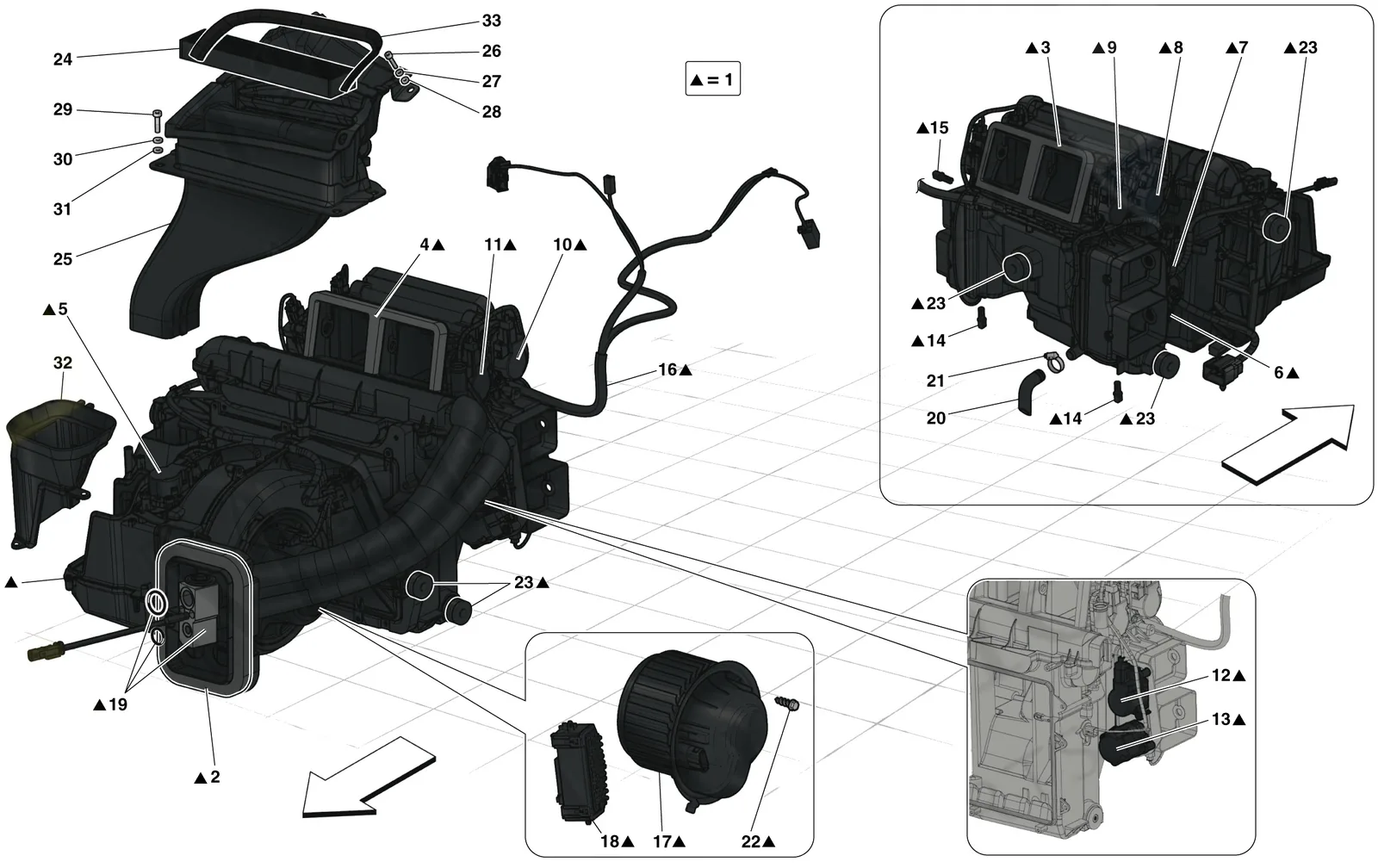

Exploded view of the evaporator unit on the Ferrari La Ferrari, with 34 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 300920 | Ferrari HVAC Unit Main Module - 300920 | $12,395.05 | Contact us to order |
| 2 | 86057000 | Ferrari Firewall Flange Gasket - 86057000 | $124.74 | Special order, ships in 7-14 days |
| 3 | 82046800 | Ferrari Front Sink - 82046800 | $344.21 | Special order, ships in 7-14 days |
| 4 | 82046600 | Ferrari Sink For Defrost Ducting - 82046600 | $344.21 | Special order, ships in 7-14 days |
| 5 | 264869 | Ferrari Lin Bus Recirculation Actuator - 264869 | $326.35 | Special order, ships in 7-14 days |
| 6 | 264870 | Ferrari RH Lin Bus Footwell Actuator - 264870 | Price on request | Contact us for price and availability |
| 7 | 264871 | Ferrari RH Lin Bus Lateral Actuator - 264871 | Price on request | Contact us for price and availability |
| 8 | 264872 | Ferrari RH Lin Bus Defroster Actuator - 264872 | Price on request | Contact us for price and availability |
| 9 | 264873 | Ferrari RH Lin Bus Fan Actuator - 264873 | Price on request | Contact us for price and availability |
| 10 | 264874 | Ferrari LH Lin Bus Fan Actuator - 264874 | Price on request | Contact us for price and availability |
| 11 | 264875 | Ferrari LH Lin Bus Defroster Actuator - 264875 | Price on request | Contact us for price and availability |
| 12 | 264876 | Ferrari LH Lin Bus Lateral Actuator - 264876 | Price on request | Contact us for price and availability |
| 13 | 264877 | Ferrari LH Lin Bus Footwell Actuator - 264877 | Price on request | Contact us for price and availability |
| 14 | 68390100 | Ferrari Air Sensor - 68390100 | $21.60 | Available, ships in 3-6 days |
| 15 | 83749200 | Ferrari Evaporator Sensor - 83749200 | $349.68 | Special order, ships in 7-14 days |
| 16 | 86057100 | Ferrari AC Wiring Harness - 86057100 | $3,405.88 | Special order, ships in 7-14 days |
| 17 | 264880 | Ferrari Fan - 264880 | $1,304.98 | Special order, ships in 7-14 days |
| 18 | 264881 | Ferrari Speed Regulator - 264881 | $664.78 | Special order, ships in 7-14 days |
| 19 | 86652000 | Ferrari Electric TXV - 86652000 | $979.09 | Special order, ships in 7-14 days |
| 20 | 293254 | Ferrari HVAC Condensation Drain Hose Connector - 293254 | $88.61 | Special order, ships in 7-14 days |
| 21 | 296778 | Ferrari Screw Collar 16- 27mm - 296778 | Superseded | Order 178052 instead |
| 21 | 178052 | Ferrari Clip - 178052 | $3.26 | Available, ships in 3-6 days |
| 22 | 68391900 | Ferrari Screw - 68391900 | Superseded | Order 62771900 instead |
| 22 | 62771900 | Ferrari Screw D. 4.2 x 16 TBIC - 62771900 | $0.54 | Available, ships in 3-6 days |
| 23 | 68389800 | Ferrari Rubber Pad - 68389800 | $12.52 | Special order, ships in 7-14 days |
| 24 | 82295100 | Ferrari 458/488/F8 Cabin Pollen Filter - 82295100 | $53.90 | In stock |
| 25 | 85800600 | Ferrari Complete Inlet Assembly - 85800600 | $6,611.30 | Special order, ships in 7-14 days |
| 25 | 89138400 | Ferrari Complete Inlet Assembly - 89138400 | $4,350.01 | Special order, ships in 7-14 days |
| 27 | 12620374 | Ferrari Washer 5.30-12x0.8 - 12620374 | $0.12 | Available, ships in 3-6 days |
| 28 | 12638124 | Ferrari Washer - 12638124 | $0.08 | Available, ships in 3-6 days |
| 28 | 12638101 | Ferrari Washer White - 12638101 | Superseded | Order 12638124 instead |
| 29 | 14304321 | Ferrari Screw M5 x 20 - 14304321 | $0.34 | Special order, ships in 7-14 days |
| 32 | 302068 | Ferrari Dynamic Intake Lower Part - 302068 | $689.41 | Special order, ships in 7-14 days |
| 33 | 86743900 | Ferrari Inlet Shield Seal - 86743900 | $45.67 | Special order, ships in 7-14 days |
