Ferrari La Ferrari — Rear Bumper (diagram 106)

Exploded view of the rear bumper on the Ferrari La Ferrari, with 114 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

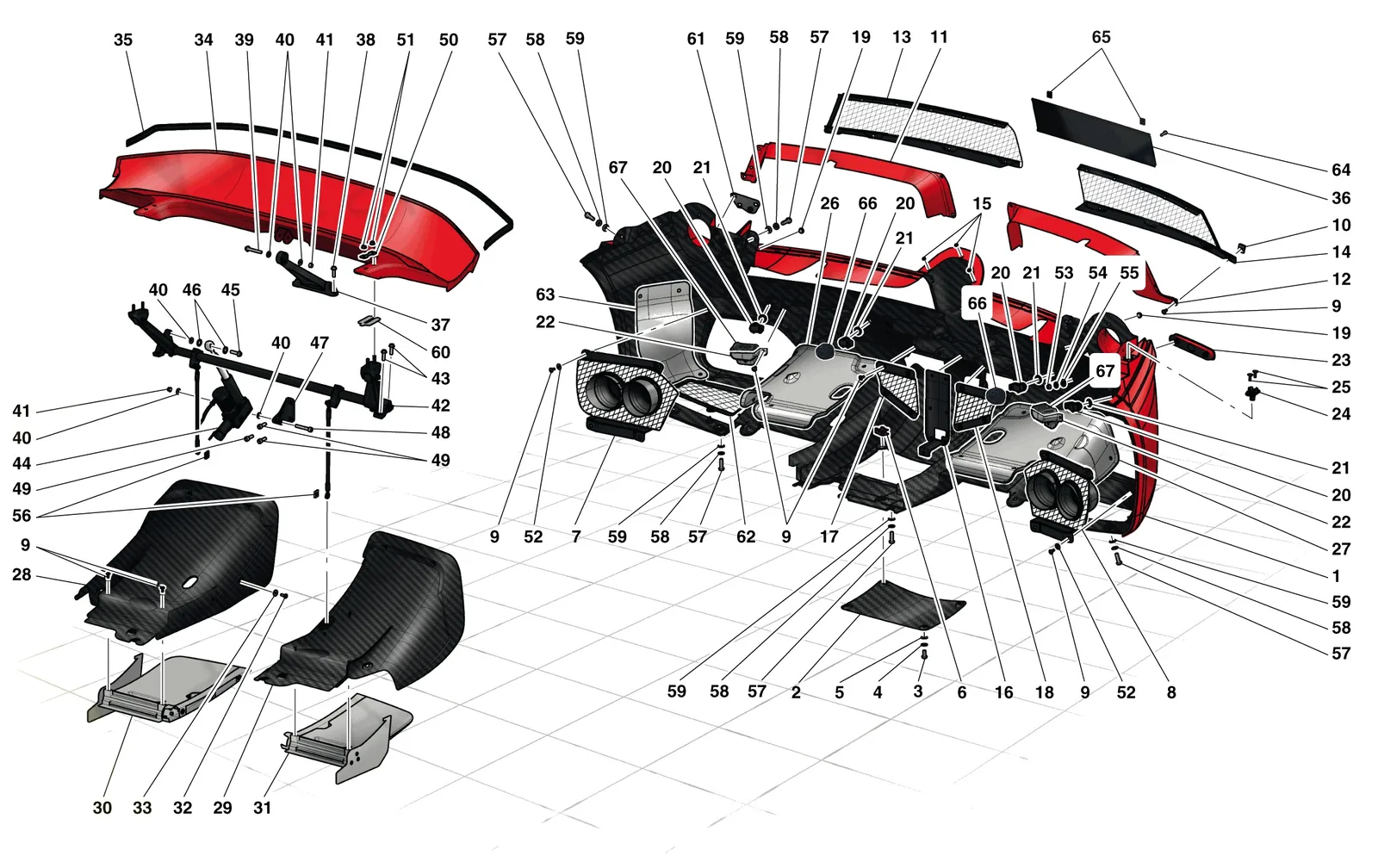

Ferrari La Ferrari Rear Bumper exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
186048710Ferrari Rear Bumper Complete - 86048710$123,773.87Contact us to order
186603310Ferrari Rear Bumper Complete - 86603310$123,773.87Contact us to order
186320810Ferrari Rear Bumper Complete - 86320810$123,773.87Contact us to order
186622410Ferrari Rear Bumper Complete - 86622410$142,343.85Contact us to order
285558600Ferrari Engine Inspection Cover - 85558600$1,542.07Special order, ships in 7-14 days
365864100Ferrari Allen Head Screw M6 x 15 TBFEI - 65864100$2.82Available, ships in 3-6 days
366294400Ferrari Screw M6 x 12 TBFEI - 66294400$2.82Special order, ships in 7-14 days
385498700Ferrari Screw 6x12 - 85498700Price on requestContact us for price and availability
412638178Ferrari Washer 5.45-14x1 - 12638178$0.13Available, ships in 3-6 days
485882500Ferrari Washer - 85882500Price on requestContact us for price and availability
513550278Ferrari Washer D.6x13x1 - 13550278$1.80Available, ships in 3-6 days
585928800Ferrari Washer - 85928800Price on requestContact us for price and availability
662766300Ferrari Spire Clip M6 - 62766300$1.36Available, ships in 3-6 days
614189071Ferrari M6 x 1Screw clip - 14189071$1.36Available, ships in 3-6 days
785997100Ferrari RH Exhaust Tailpipe Grille - 85997100$6,594.98Special order, ships in 7-14 days
785996900Ferrari RH Exhaust Tailpipe Grille - 85996900$7,343.30Special order, ships in 7-14 days
885997200Ferrari LH Exhaust Tailpipe Grille - 85997200$6,611.30Special order, ships in 7-14 days
885997000Ferrari LH Exhaust Tailpipe Grille - 85997000$7,343.30Special order, ships in 7-14 days
965366700Ferrari Screw 5x12 TBEI - 65366700$1.74Available, ships in 3-6 days
1014370774Ferrari Small Bracket - 14370774$1.59Special order, ships in 7-14 days
1186027200Ferrari RH Duct - 86027200$3,496.80Special order, ships in 7-14 days
1286027100Ferrari LH Duct - 86027100$3,496.80Special order, ships in 7-14 days
1386026900Ferrari RH Rear Bumper Grille - 86026900$630.95Special order, ships in 7-14 days
1486027000Ferrari LH Rear Bumper Grille - 86027000$630.95Special order, ships in 7-14 days
1514622387Ferrari Cap - 14622387$6.31Special order, ships in 7-14 days
1514622589Ferrari Cap - 14622589$1.49Special order, ships in 7-14 days
1685558700Ferrari Rear Fog Lamp Mount - 85558700$2,004.82Special order, ships in 7-14 days
1785558200Ferrari RH Center Grille - 85558200$244.76Special order, ships in 7-14 days
1885558300Ferrari LH Center Grille - 85558300$244.76Special order, ships in 7-14 days
20239082Ferrari/Maserati Front Bumper Parking Sensor - 239082$269.98In stock
2181544800Ferrari/Maserati Parking Sensor Ring - 81544800$11.59In stock
2285677400Ferrari Sensor Cover - 85677400Price on requestContact us for price and availability
2367091000Ferrari Rear Reflector - 67091000$39.60In stock
2485750300Ferrari Locator - 85750300$31.99Special order, ships in 7-14 days
2566207700Ferrari Allen Head Screw 5x15 - 66207700$4.56Special order, ships in 7-14 days
2510558628Ferrari Screw - 10558628SupersededOrder 66207700 instead
2686018100Ferrari RH Heat Shield - 86018100$611.91Special order, ships in 7-14 days
2786018200Ferrari LH Heat Shield - 86018200$611.91Special order, ships in 7-14 days
2886022900Ferrari RH Passive Diffuser - 86022900$17,710.20Contact us to order
2886120300Ferrari Passive RH Diffuser - 86120300$16,614.54Contact us to order
2886120400Ferrari Passive RH Diffuser - 86120400$13,863.71Contact us to order
2986023200Ferrari LH Passive Diffuser - 86023200$17,710.20Contact us to order
2986119500Ferrari Passive LH Diffuser - 86119500$15,800.95Contact us to order
2986119600Ferrari Passive LH Diffuser - 86119600$13,863.71Contact us to order
3085561500Ferrari RH Active Diffuser - 85561500$13,901.00Contact us to order
3185561600Ferrari LH Active Diffuser - 85561600$13,901.00Contact us to order
3265377400Ferrari Screw M6 x 1 x 18 - 65377400$3.91Available, ships in 3-6 days
3314498824Ferrari Washer D. 6.4 - 16.3 - 14498824$0.27Available, ships in 3-6 days
3485515000Ferrari Rear Mobile Spoiler - 85515000$27,619.52Contact us to order
3586023900Ferrari Spoiler Seal - 86023900$3,846.48Special order, ships in 7-14 days
3685189600Ferrari Rear License Plate Holder - 85189600$217.83Special order, ships in 7-14 days
3686164900Ferrari Rear License Plate Holder - 86164900$562.96Special order, ships in 7-14 days
3686468100Ferrari Rear License Plate Holder - 86468100$660.87Special order, ships in 7-14 days
3686467500Ferrari Rear License Plate Holder - 86467500$660.87Special order, ships in 7-14 days
3686466600Ferrari Rear License Plate Holder - 86466600Price on requestContact us for price and availability
3686421300Ferrari Rear License Plate Holder - 86421300$562.96Special order, ships in 7-14 days
3686467300Ferrari Rear License Plate Holder - 86467300$832.22Special order, ships in 7-14 days
37296330Ferrari Rear Linkage For Mobile Wing Complete - 296330$3,701.94Special order, ships in 7-14 days
38299688Ferrari Titanium Screw - 299688$65.63Special order, ships in 7-14 days
39299694Ferrari Titanium Screw - 299694$117.47Special order, ships in 7-14 days
4010730314Ferrari Washer - 10730314SupersededOrder 10730321 instead
4010730321Ferrari Washer - 10730321$1.50Available, ships in 3-6 days
41177778Ferrari Nut Locking M8 x 7 - 177778$2.82Available, ships in 3-6 days
42296320Ferrari Front Linkage For Mobile Wing Complete - 296320$14,406.87Contact us to order
43304521Ferrari Ergal Screw - 304521$36.69Special order, ships in 7-14 days
44304635Ferrari Rear Active Aero Actuator - 304635$12,785.39Special order, ships in 7-14 days
45299690Ferrari Titanium Screw - 299690$95.43Special order, ships in 7-14 days
46299969Ferrari Washer - 299969$3.89Special order, ships in 7-14 days
47299227Ferrari Mount For Spoiler Actuator - 299227$244.76Special order, ships in 7-14 days
4814306934Ferrari Screw - 14306934$3.03Special order, ships in 7-14 days
4914814434Ferrari Screw M8 x 25 - 14814434$0.90Available, ships in 3-6 days
50299725Ferrari Spoiler Fastener Plate - 299725$46.48Special order, ships in 7-14 days
51132877Ferrari Nut - 132877SupersededOrder 194031 instead
51194031Ferrari Flanged Nut M6 x 20 - 194031$1.21Available, ships in 3-6 days
5167190100Ferrari Nut - 67190100SupersededOrder 194031 instead
5285277500Ferrari Ceramic Washer 12x5.2x1 - 85277500$3.91Special order, ships in 7-14 days
5315896414Ferrari Nut M5 x 4 - 15896414$0.13Available, ships in 3-6 days
5312578011Ferrari Flanged Nyloc Nut - 12578011$0.31Available, ships in 3-6 days
5315896411Ferrari RH Thread Nut - 15896411SupersededOrder 15896414 instead
5513550225Ferrari Washer - 13550225$1.23Special order, ships in 7-14 days
5611063974Ferrari Safety Clip - 11063974$5.85Special order, ships in 7-14 days
5785629300Ferrari Screw M6 x 20 - 85629300$1.17Available, ships in 3-6 days
5912643778Ferrari Washer 6-18 x 1.5 - 12643778$0.54Available, ships in 3-6 days
5985895300Ferrari Washer - 85895300Price on requestContact us for price and availability
60299369Ferrari Spoiler Adjustment Plate 0.5mm - 299369$51.37Special order, ships in 7-14 days
60299370Ferrari Spoiler Adjustment Plate 1.0mm - 299370$51.37Special order, ships in 7-14 days
60299371Ferrari Spoiler Adjustment Plate 1.5mm - 299371$51.37Special order, ships in 7-14 days
60299372Ferrari Spoiler Adjustment Plate 2.0mm - 299372$51.37Special order, ships in 7-14 days
60299373Ferrari Spoiler Adjustment Plate 2.5mm - 299373$48.93Special order, ships in 7-14 days
60299374Ferrari Spoiler Adjustment Plate 3.0mm - 299374$51.37Special order, ships in 7-14 days
60299375Ferrari Spoiler Adjustment Plate 3.5mm - 299375$51.37Special order, ships in 7-14 days
60299376Ferrari Spoiler Adjustment Plate 4.0mm - 299376$51.37Special order, ships in 7-14 days
6185990900Ferrari RH Bracket - 85990900$66.07Special order, ships in 7-14 days
6185991100Ferrari LH Bracket - 85991100$66.07Special order, ships in 7-14 days
6285999900Ferrari RH Mesh On Rear Bumper - 85999900$200.69Special order, ships in 7-14 days
6285999800Ferrari LH Mesh On Rear Bumper - 85999800$212.92Special order, ships in 7-14 days
6386018400Ferrari RH Lateral Heat Shield - 86018400$440.56Special order, ships in 7-14 days
6386021600Ferrari LH Lateral Heat Shield - 86021600$465.04Special order, ships in 7-14 days
6484873500Ferrari Screw 6x12 - 84873500SupersededOrder 85478900 instead
6485494300Ferrari Screw 5x12 - 85494300$2.59Special order, ships in 7-14 days
6514201980Ferrari Fixing Block - 14201980$0.27Available, ships in 3-6 days
6685459900Ferrari Centre Heat Shield - 85459900$215.38Special order, ships in 7-14 days
6786289300Ferrari Sensor Heat Shield - 86289300$129.70Special order, ships in 7-14 days
15896401Ferrari Nut - 15896401SupersededOrder 15896414 instead
50207208Ferrari Nut - 50207208SupersededOrder 15896414 instead
64342800Ferrari Nut - 64342800SupersededOrder 177778 instead
133215Ferrari Nut Locking - 133215SupersededOrder 177778 instead
86141300Ferrari Screw - 86141300SupersededOrder 66294400 instead
12638108Ferrari Washer - 12638108SupersededOrder 12638178 instead
12638177Ferrari Washer - 12638177SupersededOrder 12638178 instead
12643707Ferrari Washer - 12643707SupersededOrder 12643778 instead
12643777Ferrari Washer - 12643777SupersededOrder 12643778 instead
14498804Ferrari Washer - 14498804SupersededOrder 14498824 instead
61276300Ferrari Washer - 61276300SupersededOrder 12638178 instead
