Ferrari La Ferrari — Luggage Compartment Mats (diagram 108)

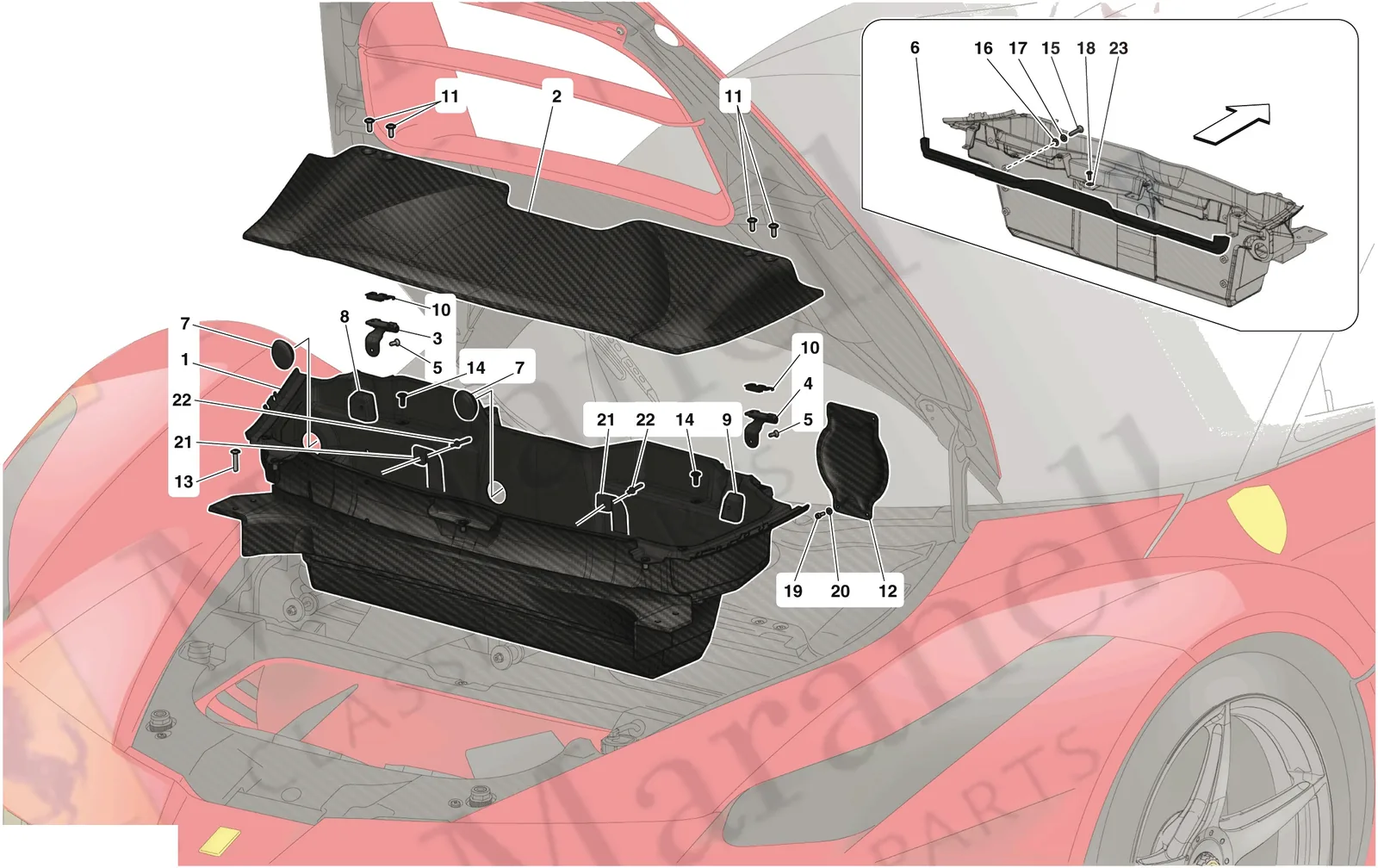

Exploded view of the luggage compartment mats on the Ferrari La Ferrari, with 35 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 85860800 | Ferrari Luggage Tray - 85860800 | $70,491.58 | Contact us to order |
| 1 | 86478000 | Ferrari Luggage Tray - 86478000 | $45,362.29 | Contact us to order |
| 1 | 86469400 | Ferrari Luggage Tray - 86469400 | $58,264.94 | Contact us to order |
| 2 | 85940000 | Ferrari Luggage Tray Cover Complete - 85940000 | $11,007.96 | Special order, ships in 7-14 days |
| 2 | 86470300 | Ferrari Luggage Tray Cover Complete - 86470300 | $11,042.94 | Special order, ships in 7-14 days |
| 3 | 85600400 | Ferrari RH Tray Cover Hinge - 85600400 | $562.96 | Special order, ships in 7-14 days |
| 3 | 86469500 | Ferrari LH Tray Cover Hinge - 86469500 | $3,979.37 | Special order, ships in 7-14 days |
| 4 | 85600500 | Ferrari LH Tray Cover Hinge - 85600500 | $562.96 | Special order, ships in 7-14 days |
| 5 | 14441324 | Ferrari Countersunk Allen Screw TSEI M6 x 16 - 14441324 | $0.52 | Available, ships in 3-6 days |
| 6 | 85683500 | Ferrari Rear Seal - 85683500 | $203.15 | Special order, ships in 7-14 days |
| 7 | 14508087 | Ferrari Cap - 14508087 | $5.65 | Special order, ships in 7-14 days |
| 8 | 85949400 | Ferrari RH Hinge Insert - 85949400 | Price on request | Contact us for price and availability |
| 9 | 85949500 | Ferrari LH Hinge Insert - 85949500 | Price on request | Contact us for price and availability |
| 10 | 86469700 | Ferrari Tray Lid Cover Retainer Spring - 86469700 | $1,028.04 | Special order, ships in 7-14 days |
| 10 | 85861200 | Ferrari Tray Lid Cover Retainer Spring - 85861200 | $367.14 | Special order, ships in 7-14 days |
| 11 | 65864100 | Ferrari Allen Head Screw M6 x 15 TBFEI - 65864100 | $2.82 | Available, ships in 3-6 days |
| 12 | 85736400 | Ferrari Chassis Cover - 85736400 | Price on request | Contact us for price and availability |
| 13 | 14306474 | Ferrari Screw - 14306474 | $0.82 | Special order, ships in 7-14 days |
| 13 | 65925000 | Ferrari Screw 6x35 - 65925000 | $3.26 | Available, ships in 3-6 days |
| 13 | 85879000 | Ferrari Screw - 85879000 | Superseded | Order 65925000 instead |
| 13 | 86221400 | Ferrari Screw - 86221400 | Superseded | Order 65925000 instead |
| 13 | 13028774 | Ferrari Screw - 13028774 | Superseded | Order 14306474 instead |
| 15 | 85800500 | Ferrari Screw - 85800500 | Price on request | Contact us for price and availability |
| 15 | 86141400 | Ferrari Screw - 86141400 | Superseded | Order 65925000 instead |
| 16 | 12643778 | Ferrari Washer 6-18 x 1.5 - 12643778 | $0.54 | Available, ships in 3-6 days |
| 16 | 13550225 | Ferrari Washer - 13550225 | $1.23 | Special order, ships in 7-14 days |
| 17 | 85882500 | Ferrari Washer - 85882500 | Price on request | Contact us for price and availability |
| 18 | 66294400 | Ferrari Screw M6 x 12 TBFEI - 66294400 | $2.82 | Special order, ships in 7-14 days |
| 18 | 85077900 | Ferrari Screw - 85077900 | $0.34 | Special order, ships in 7-14 days |
| 18 | 86141300 | Ferrari Screw - 86141300 | Superseded | Order 66294400 instead |
| 20 | 85739500 | Ferrari Washer - 85739500 | $6.98 | Special order, ships in 7-14 days |
| 21 | 86263200 | Ferrari Toolkit Bag Strap - 86263200 | $1,028.04 | Special order, ships in 7-14 days |
| 22 | 14642797 | Ferrari Rivet - 14642797 | Price on request | Contact us for price and availability |
| 12643707 | Ferrari Washer - 12643707 | Superseded | Order 12643778 instead | |
| 12643777 | Ferrari Washer - 12643777 | Superseded | Order 12643778 instead |
