Ferrari Mondial 8 USA — Body Shell - Inner Elements (diagram 103)

Exploded view of the body shell - inner elements on the Ferrari Mondial 8 USA, with 66 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

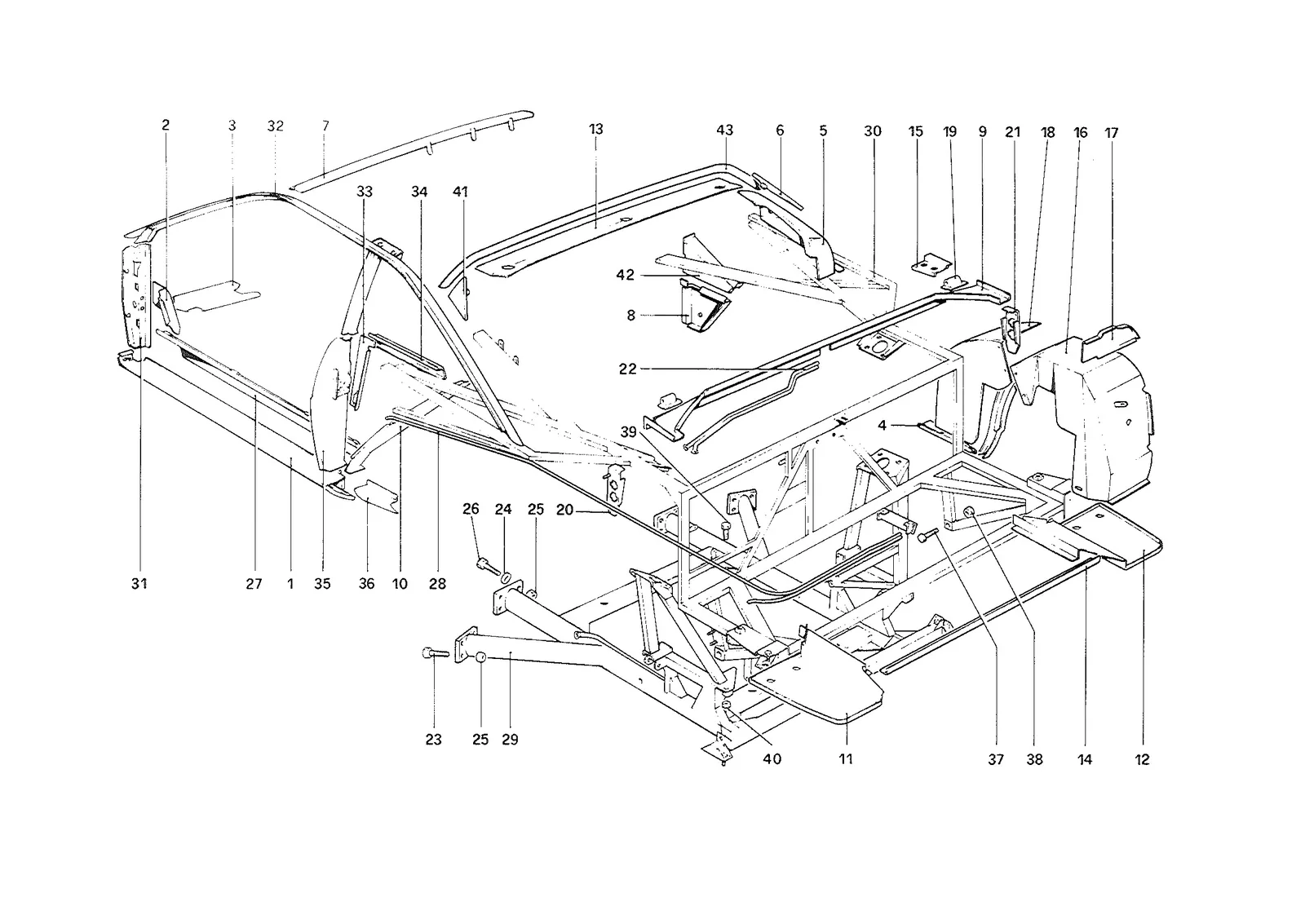

Ferrari Mondial 8 USA Body Shell - Inner Elements exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
160542800Ferrari RH Side Frame - 60542800$413.67Available, ships in 3-6 days
160542900Ferrari LH Side Frame - 60542900$413.67Available, ships in 3-6 days
2116651Ferrari Footrest Shield - 116651$19.72Available, ships in 3-6 days
3115907Ferrari Foot Plate - 115907$31.15Available, ships in 3-6 days
4116013Ferrari RH Rear Support - 116013$9.68Available, ships in 3-6 days
4116014Ferrari LH Rear Support - 116014$9.68Available, ships in 3-6 days
560951800Ferrari RH Covering - 60951800$54.74Special order, ships in 7-14 days
560951900Ferrari LH Covering - 60951900Price on requestContact us for price and availability
660910300Ferrari RH Rear Belts Support - 60910300$37.11Available, ships in 3-6 days
760937000Ferrari Upper Frame - 60937000$84.72Available, ships in 3-6 days
860622100Ferrari RH Support For Front Belts - 60622100Price on requestContact us for price and availability
860622200Ferrari LH Support For Front Belts - 60622200$55.18Available, ships in 3-6 days
960617300Ferrari Shield - 60617300$160.19Available, ships in 3-6 days
1060967800Ferrari RH Reinforcement - 60967800$41.15Available, ships in 3-6 days
1060967900Ferrari RH Reinforcement - 60967900$41.15Available, ships in 3-6 days
1160829900Ferrari LH Bottom Plate - 60829900$41.15Available, ships in 3-6 days
1260829800Ferrari RH Bottom Plate - 60829800$41.15Available, ships in 3-6 days
1360914400Ferrari Plate - 60914400$28.90Available, ships in 3-6 days
1460832700Ferrari Angle - 60832700$44.98Available, ships in 3-6 days
1560649400Ferrari RH Bracket - 60649400$10.00Available, ships in 3-6 days
1560649500Ferrari LH Bracket - 60649500$10.00Available, ships in 3-6 days
1660619000Ferrari RH Rear Wheel Arch Housing - 60619000$387.34Special order, ships in 7-14 days
1660831300Ferrari LH Rear Wheel Arch Housing (Coupe) - 60831300$272.38Available, ships in 3-6 days
1760620400Ferrari RH Shield - 60620400$42.51Available, ships in 3-6 days
1760916800Ferrari LH Shield - 60916800$45.29Available, ships in 3-6 days
1860916600Ferrari RH Wheel House section - 60916600$96.37Available, ships in 3-6 days
1860916700Ferrari LH Wheel House section - 60916700SupersededOrder 61158700 instead
1960523700Ferrari Rear Bonnet Fixed Hinge - 60523700$51.86Available, ships in 3-6 days
2060695100Ferrari LH Bracket - 60695100$14.78Available, ships in 3-6 days
2160697200Ferrari RH Bracket - 60697200$10.27Available, ships in 3-6 days
2260787300Ferrari Cable Duct - 60787300Price on requestContact us for price and availability
2315540621Ferrari Bolt - 15540621Price on requestContact us for price and availability
2412646921Ferrari Washer - 12646921$0.92Available, ships in 3-6 days
25102825Ferrari Locking Suspension Nut - 102825$1.10In stock
2516105011Ferrari Nyloc Nut - 16105011$1.74Available, ships in 3-6 days
2615540521Ferrari Bolt - 15540521$1.15Available, ships in 3-6 days
2760602800Ferrari RH Inner Panel - 60602800$50.64Available, ships in 3-6 days
2760602900Ferrari LH Inner Panel - 60602900SupersededOrder 61082600 instead
2761082600Ferrari LH Inner Panel - 61082600$62.31Available, ships in 3-6 days
2860787200Ferrari Tube - 60787200$72.76Available, ships in 3-6 days
29118600Ferrari Rear Engine Chassis Frame Lhd - 118600Price on requestContact us for price and availability
30118601Ferrari Rear Frame - 118601$2,953.29Available, ships in 3-6 days
3160645400Ferrari RH Seat For Door Hinge - 60645400$67.83Available, ships in 3-6 days
3160903500Ferrari LH Seat For Door Hinge - 60903500$87.75Available, ships in 3-6 days
3260998500Ferrari RH Rail - 60998500$216.35Available, ships in 3-6 days
3260998600Ferrari LH Rail - 60998600$216.35Available, ships in 3-6 days
3360921600Ferrari LH Rear Window Lower Reinforcement - 60921600$24.15Available, ships in 3-6 days
3360921700Ferrari RH Rear Window Lower Reinforcement - 60921700$24.15Available, ships in 3-6 days
3460658300Ferrari LH Angle - 60658300$19.82Available, ships in 3-6 days
3460658400Ferrari RH Angle - 60658400$12.94Available, ships in 3-6 days
3560621300Ferrari RH Door Shut Panel - 60621300$94.13Available, ships in 3-6 days
3560621400Ferrari LH Door Shut Panel - 60621400$121.92Available, ships in 3-6 days
3715977521Ferrari Chassis Bolt - 15977521$2.86Available, ships in 3-6 days
3812575811Ferrari Nyloc Nut - 12575811$3.85Available, ships in 3-6 days
3911255921Ferrari Chassis Bolt - 11255921$1.30Available, ships in 3-6 days
4160910400Ferrari LH Rear Belts Support - 60910400$37.11Available, ships in 3-6 days
4260829100Ferrari RH Reinforcement - 60829100$25.59Available, ships in 3-6 days
4260829200Ferrari LH Reinforcement - 60829200$25.59Available, ships in 3-6 days
4360828700Ferrari Rear Upper Frame - 60828700$115.98Available, ships in 3-6 days
15540624Ferrari Bolt - 15540624Price on requestContact us for price and availability
60723200Ferrari Front Upper Frame - 60723200$60.18Available, ships in 3-6 days
163534Ferrari Nyloc Nut - 163534Price on requestContact us for price and availability
61158600Ferrari RH Front Section - 61158600$485.86Available, ships in 3-6 days
61158700Ferrari Wheel Box - 61158700$485.86Available, ships in 3-6 days
-60890700Ferrari LH Frame Door Opening With Rail - 60890700Price on requestContact us for price and availability
-60890600Ferrari RH Frame Door Opening With Rail - 60890600Price on requestContact us for price and availability

All Mondial 8 USA diagrams
