Ferrari Monza SP1 — [ENGINE] - B.3 - ENGINE COVERS (diagram 0006)

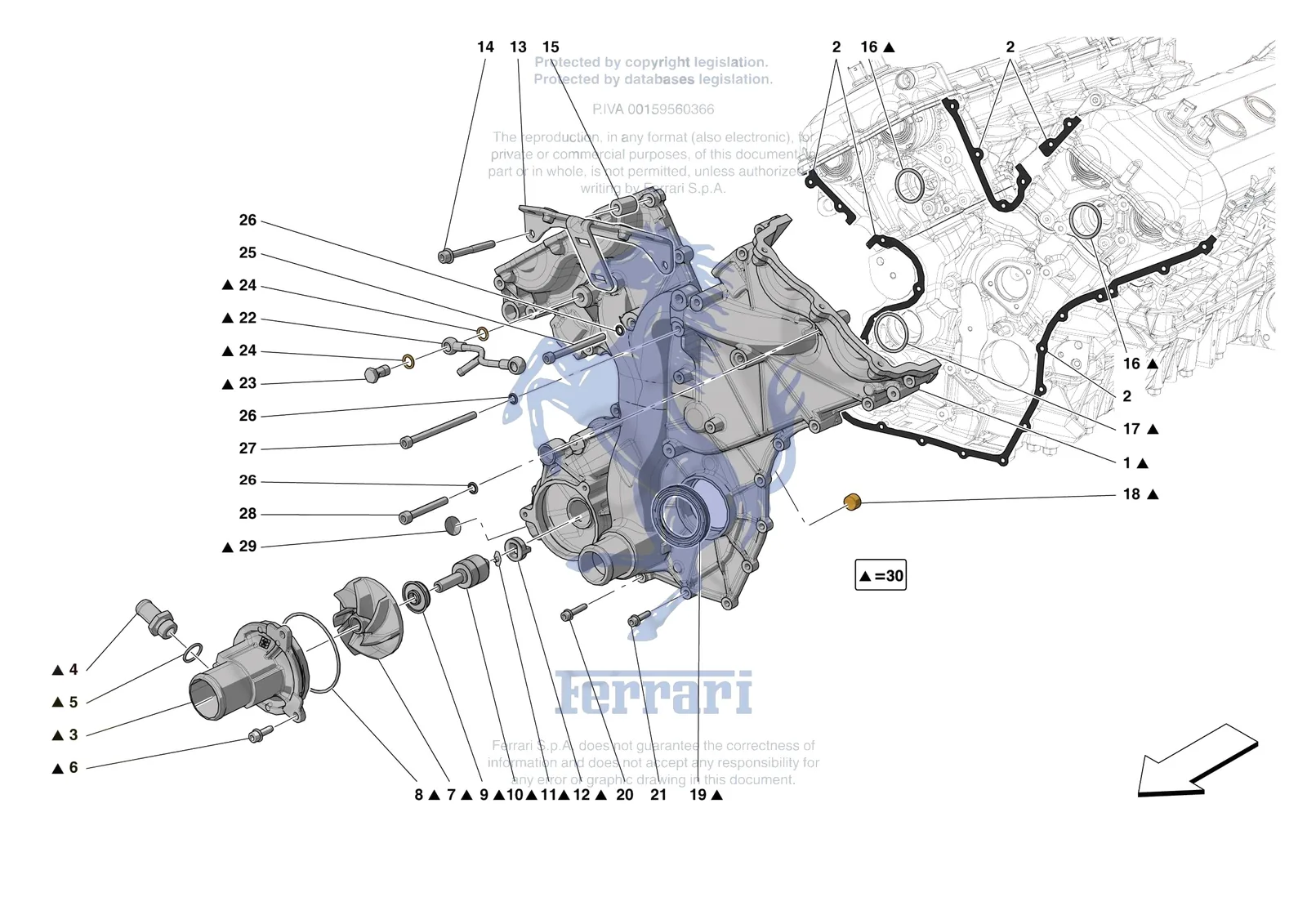

Exploded view of the [engine] - b.3 - engine covers on the Ferrari Monza SP1, with 39 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Monza SP1 [ENGINE] - B.3 - ENGINE COVERS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/monza-sp1/0006.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14433121 | Ferrari Screw - 14433121 | Superseded | Order 231617 instead | |
| 216568 | Ferrari Screw 6x30 - 216568 | Superseded | Order 231621 instead | |
| 183447 | Ferrari Threaded Plug - 183447 | $18.48 | Available, ships in 3-6 days | |
| 253794 | Ferrari Water Pump Bearing - 253794 | $348.11 | Special order, ships in 7-14 days | |
| 2 | 316502 | Ferrari Front Cover Gasket - 316502 | $93.50 | In stock |
| 3 | 288787 | Ferrari Water Pump Cover - 288787 | $98.32 | Special order, ships in 7-14 days |
| 4 | 253823 | Ferrari Connector - 253823 | $212.12 | Special order, ships in 7-14 days |
| 5 | 11270550 | Ferrari O-Ring - 11270550 | $2.07 | Available, ships in 3-6 days |
| 6 | 231617 | Ferrari Screw M6 x 18 TCEI - 231617 | Superseded | Order 14433124 instead |
| 7 | 253795 | Ferrari Water Pump Rotor - 253795 | Price on request | Contact us for price and availability |
| 7 | 917267 | Ferrari Water Pump Rotor - 917267 | Price on request | Contact us for price and availability |
| 8 | 253797 | Ferrari O-Ring - 253797 | $6.98 | In stock |
| 9 | 252192 | Ferrari Water Pump Gasket - 252192 | Price on request | Contact us for price and availability |
| 10 | 295219 | Ferrari Water Pump Bearing - 295219 | Superseded | Order 253794 instead |
| 11 | 255939 | Ferrari Clip - 255939 | Price on request | Contact us for price and availability |
| 12 | 295218 | Ferrari Joint - 295218 | Price on request | Contact us for price and availability |
| 13 | 339651 | Ferrari Wiring Harness Section Mount - 339651 | $66.35 | Special order, ships in 7-14 days |
| 14 | 231625 | Ferrari Screw 6x50 - 231625 | $1.25 | Available, ships in 3-6 days |
| 15 | 281356 | Ferrari Shim - 281356 | $6.10 | Special order, ships in 7-14 days |
| 16 | 183010 | Ferrari/Maserati O-Ring - 183010 | $5.50 | In stock |
| 17 | 289278 | Ferrari O-Ring - 289278 | $6.54 | Special order, ships in 7-14 days |
| 18 | 127635 | Ferrari Threaded Plug M18 x 11 x 1.5 - 127635 | $6.75 | Available, ships in 3-6 days |
| 19 | 210359 | Ferrari Front Crankshaft Seal - 210359 | $64.88 | In stock |
| 20 | 231621 | Ferrari Allen Screw M6 x 30 TCEI - 231621 | $0.73 | Available, ships in 3-6 days |
| 21 | 231620 | Ferrari/Maserati Screw - 231620 | $0.58 | In stock |
| 22 | 931307198 | Ferrari Compl. Water Drain Pipe - 931307198 | $467.15 | Special order, ships in 7-14 days |
| 23 | 211847 | Ferrari Pipe Union - 211847 | $327.81 | Special order, ships in 7-14 days |
| 24 | 10260960 | Ferrari Washer - 10260960 | $0.34 | Available, ships in 3-6 days |
| 25 | 14309224 | Ferrari Screw 6x65 - 14309224 | $1.11 | Available, ships in 3-6 days |
| 26 | 216292 | Ferrari Gasket - 216292 | $6.36 | Available, ships in 3-6 days |
| 27 | 10589624 | Ferrari Screw M6 x 80 TCEI - 10589624 | $0.59 | Available, ships in 3-6 days |
| 28 | 14305924 | Ferrari Allen Screw 6x45 - 14305924 | $0.38 | Available, ships in 3-6 days |
| 28 | 231624 | Ferrari Allen Screw M6 x 45 - 231624 | Superseded | Order 14305924 instead |
| 29 | 10159001 | Ferrari Cap - 10159001 | $0.92 | Available, ships in 3-6 days |
| 29 | 989260 | Ferrari Cap - 989260 | Superseded | Order 10159001 instead |
| 30 | 889790 | Ferrari Coperchio Dist Cpl Di Pompa - 889790 | $6,502.96 | Special order, ships in 7-14 days |
| 30 | 917332 | Ferrari Coperchio Dist Cpl Di Pompa - 917332 | $6,533.41 | Special order, ships in 7-14 days |
| 30 | 958996 | Ferrari Coperchio Dist Cpl Di Pompa - 958996 | $7,622.31 | Special order, ships in 7-14 days |
| 30 | 990229 | Ferrari Coperchio Dist Cpl Di Pompa - 990229 | $6,446.75 | Special order, ships in 7-14 days |
