Ferrari Monza SP1 — [ENGINE] - B.9 - TIMING SYSTEM DRIVE (diagram 0014)

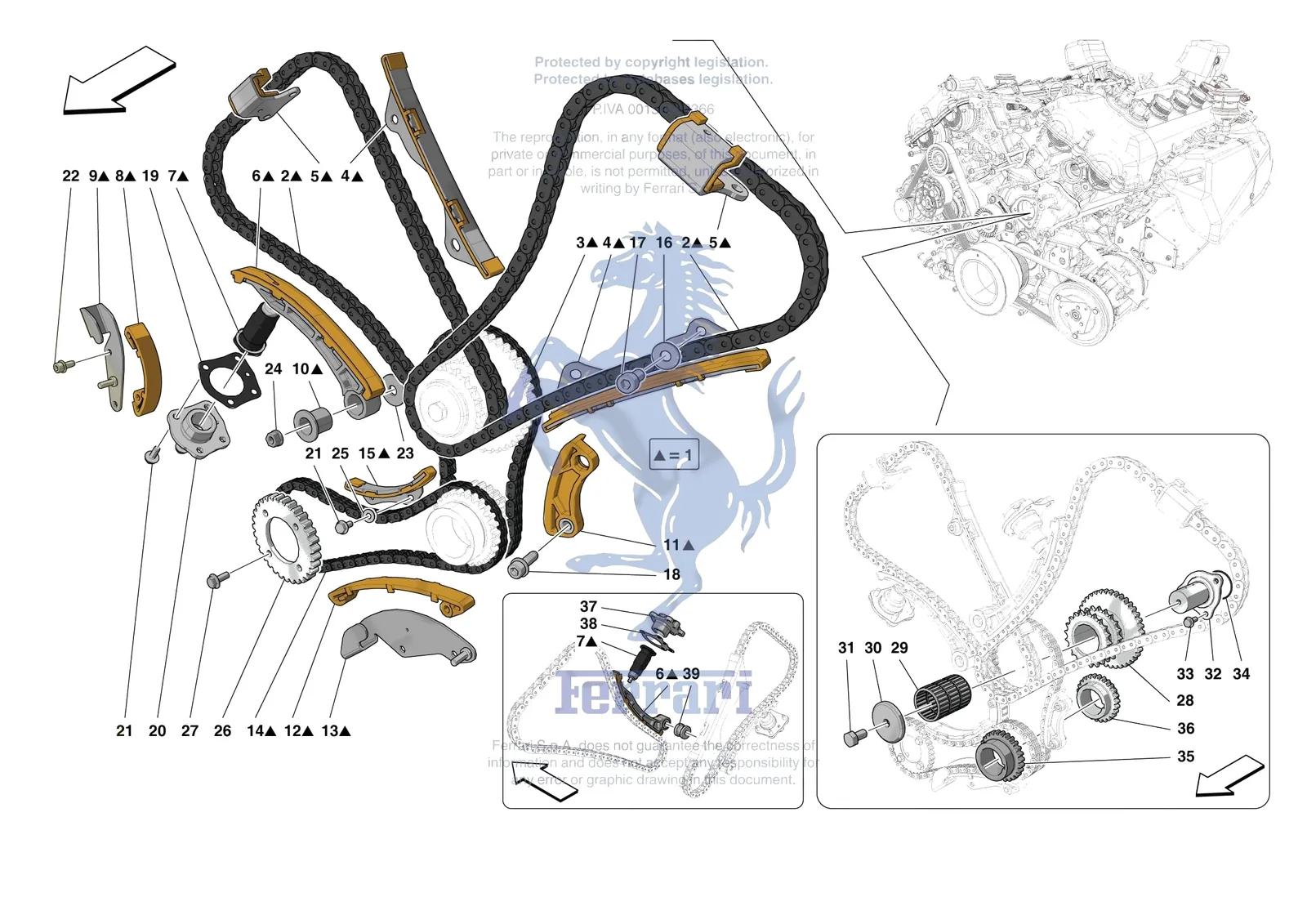

Exploded view of the [engine] - b.9 - timing system drive on the Ferrari Monza SP1, with 52 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Monza SP1 [ENGINE] - B.9 - TIMING SYSTEM DRIVE exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/monza-sp1/0014.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 16043121 | Ferrari Bolt 8X15 Uni 188 - 16043121 | Superseded | Order 16043124 instead | |
| 265105 | Ferrari Chain - 265105 | Price on request | Contact us for price and availability | |
| 295376 | Ferrari Chain - 295376 | $176.22 | Special order, ships in 7-14 days | |
| 286228 | Ferrari Drive Gear - 286228 | $611.91 | Special order, ships in 7-14 days | |
| 286227 | Ferrari External Crankshaft Gear - 286227 | Superseded | Order 301217 instead | |
| 265178 | Ferrari Fixed Shoe - 265178 | $119.91 | Special order, ships in 7-14 days | |
| 267198 | Ferrari Gasket - 267198 | $15.91 | Special order, ships in 7-14 days | |
| 286226 | Ferrari Internal Crankshaft Gear - 286226 | $342.66 | Special order, ships in 7-14 days | |
| 249904 | Ferrari Mobile Shoe - 249904 | Superseded | Order 272014 instead | |
| 64342800 | Ferrari Nut - 64342800 | Superseded | Order 177778 instead | |
| 133215 | Ferrari Nut Locking - 133215 | Superseded | Order 177778 instead | |
| 295397 | Ferrari Primary Chain - 295397 | $1,639.98 | Special order, ships in 7-14 days | |
| 1 | 330788 | Ferrari Valve Timing And Pump Drive - 330788 | Superseded | Order 921010 instead |
| 1 | 921010 | Ferrari Valve Timing And Pump Drive - 921010 | $2,037.27 | Special order, ships in 7-14 days |
| 2 | 254263 | Ferrari Chain - 254263 | $168.67 | Special order, ships in 7-14 days |
| 3 | 312629 | Ferrari Chain - 312629 | $737.61 | Special order, ships in 7-14 days |
| 4 | 198034 | Ferrari Fixed Shoe Complete - 198034 | $113.08 | Special order, ships in 7-14 days |
| 5 | 239566 | Ferrari Fixed Shoe - 239566 | $76.19 | Special order, ships in 7-14 days |
| 6 | 260614 | Ferrari Mobile Shoe - 260614 | $663.86 | Special order, ships in 7-14 days |
| 7 | 330790 | Ferrari Hydraulic Chain Tensioner - 330790 | $162.25 | Special order, ships in 7-14 days |
| 7 | 768613 | Ferrari Tensioner - 768613 | $368.79 | Special order, ships in 7-14 days |
| 8 | 257626 | Ferrari Shoe - 257626 | $152.41 | Special order, ships in 7-14 days |
| 9 | 265180 | Ferrari Mounting - 265180 | $117.99 | Special order, ships in 7-14 days |
| 10 | 175303 | Ferrari Bush For Timing Guide - 175303 | $56.52 | Special order, ships in 7-14 days |
| 11 | 309750 | Ferrari Fixed Shoe - 309750 | $120.46 | Special order, ships in 7-14 days |
| 12 | 272014 | Ferrari Mobile Shoe - 272014 | $108.16 | Special order, ships in 7-14 days |
| 13 | 265712 | Ferrari Mounting - 265712 | $565.49 | Special order, ships in 7-14 days |
| 14 | 271880 | Ferrari Chain - 271880 | $213.88 | Special order, ships in 7-14 days |
| 15 | 277283 | Ferrari Fixed Shoe - 277283 | $565.49 | Special order, ships in 7-14 days |
| 16 | 163759 | Ferrari Washer - 163759 | $26.20 | Special order, ships in 7-14 days |
| 17 | 14306224 | Ferrari Screw M8 x 16 - 14306224 | $0.38 | Available, ships in 3-6 days |
| 18 | 282395 | Ferrari Screw M6 x 20 - 282395 | $1.36 | Special order, ships in 7-14 days |
| 19 | 317023 | Ferrari Gasket - 317023 | $15.72 | Special order, ships in 7-14 days |
| 20 | 268314 | Ferrari Bushing - 268314 | $77.84 | Special order, ships in 7-14 days |
| 21 | 181336 | Ferrari Screw M6 X 16 - 181336 | $5.14 | Available, ships in 3-6 days |
| 22 | 282392 | Ferrari Screw 6x14 - 282392 | $0.96 | Available, ships in 3-6 days |
| 23 | 175306 | Ferrari Washer - 175306 | $7.84 | Special order, ships in 7-14 days |
| 24 | 177778 | Ferrari Nut Locking M8 x 7 - 177778 | $2.82 | Available, ships in 3-6 days |
| 25 | 276781 | Ferrari Washer - 276781 | $0.79 | Special order, ships in 7-14 days |
| 26 | 288731 | Ferrari Pump Drive Gear - 288731 | Price on request | Contact us for price and availability |
| 27 | 186668 | Ferrari Screw M5 X 12 - 186668 | $28.39 | Special order, ships in 7-14 days |
| 28 | 299589 | Ferrari Drive Gear - 299589 | $737.61 | Special order, ships in 7-14 days |
| 29 | 187742 | Ferrari Roller Bearing - 187742 | $18.55 | Special order, ships in 7-14 days |
| 30 | 194262 | Ferrari Spacer - 194262 | $63.90 | Special order, ships in 7-14 days |
| 31 | 16043124 | Ferrari Screw M8 x 14 - 16043124 | $0.33 | Special order, ships in 7-14 days |
| 32 | 289896 | Ferrari Mounting - 289896 | $319.62 | Special order, ships in 7-14 days |
| 34 | 154191 | Ferrari O-Ring - 154191 | $1.42 | In stock |
| 35 | 301217 | Ferrari External Crankshaft Gear - 301217 | $319.62 | Special order, ships in 7-14 days |
| 36 | 299590 | Ferrari Internal Crankshaft Gear - 299590 | $442.56 | Special order, ships in 7-14 days |
| 37 | 252512 | Ferrari Bushing - 252512 | $149.96 | Special order, ships in 7-14 days |
| 38 | 317022 | Ferrari Gasket - 317022 | $5.14 | Available, ships in 3-6 days |
| 39 | 183929 | Ferrari Bush - 183929 | $15.28 | Special order, ships in 7-14 days |
