Ferrari Monza SP1 — [ENGINE] - B.16 - IGNITION COIL SPARK PLUGS AND SENSORS (diagram 0021)

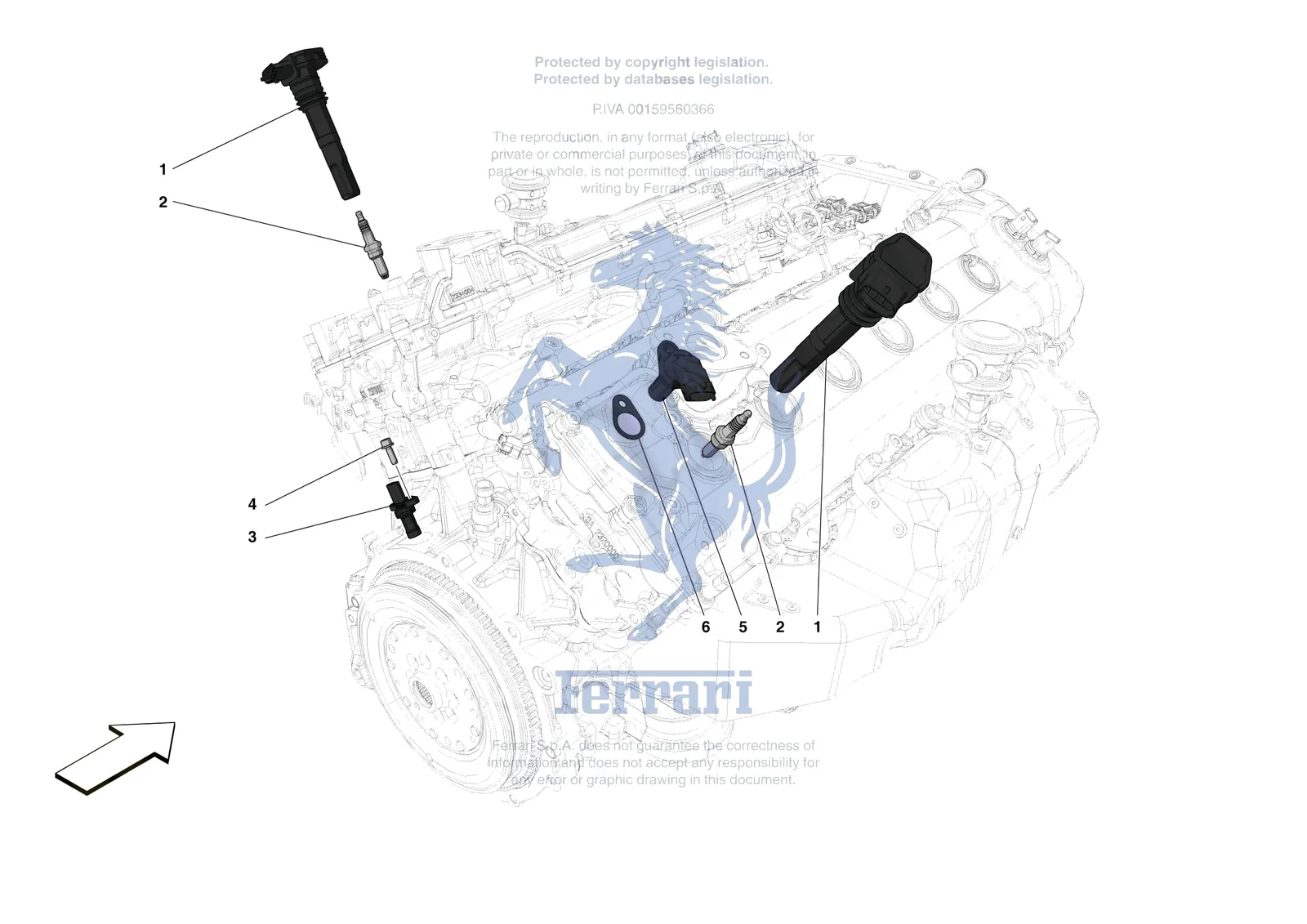

Exploded view of the [engine] - b.16 - ignition coil spark plugs and sensors on the Ferrari Monza SP1, with 13 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Monza SP1 [ENGINE] - B.16 - IGNITION COIL SPARK PLUGS AND SENSORS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/monza-sp1/0021.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 317741 | Ferrari Damper Plate For Timing Sensor - 317741 | Superseded | Order 328523 instead | |
| 327361 | Ferrari Damper Plate For Timing Sensor - 327361 | Superseded | Order 328523 instead | |
| 248406 | Ferrari Ignition Coil - 248406 | Superseded | Order 772927 instead | |
| 290850 | Ferrari Ignition Coil - 290850 | Superseded | Order 772927 instead | |
| 231359 | Ferrari Single Ignition Coil - 231359 | Superseded | Order 772927 instead | |
| 1 | 337713 | Ferrari Ignition Coil - 337713 | Superseded | Order 772927 instead |
| 1 | 772927 | Ferrari Ignition Coil - 772927 | $120.98 | In stock |
| 2 | 297423 | Ferrari NGK Spark Plug - 297423 | $32.22 | In stock |
| 3 | 276125 | Ferrari Angular Speed Sensor - 276125 | $134.69 | In stock |
| 3 | 857098 | Ferrari Angular Speed Sensor - 857098 | Superseded | Order 276125 instead |
| 4 | 231618 | Ferrari Allen Head Screw M6x20 TCEI - 231618 | $0.57 | Available, ships in 3-6 days |
| 5 | 343280 | Ferrari Timing Sensor - 343280 | $76.47 | Available, ships in 3-6 days |
| 6 | 328523 | Ferrari Damper Plate For Timing Sensor - 328523 | $12.99 | Special order, ships in 7-14 days |
