Ferrari Monza SP1 — [ENGINE] - B.20 - EMISSIONS CONTROL SYSTEM PIPES AND VALVES (diagram 0025)

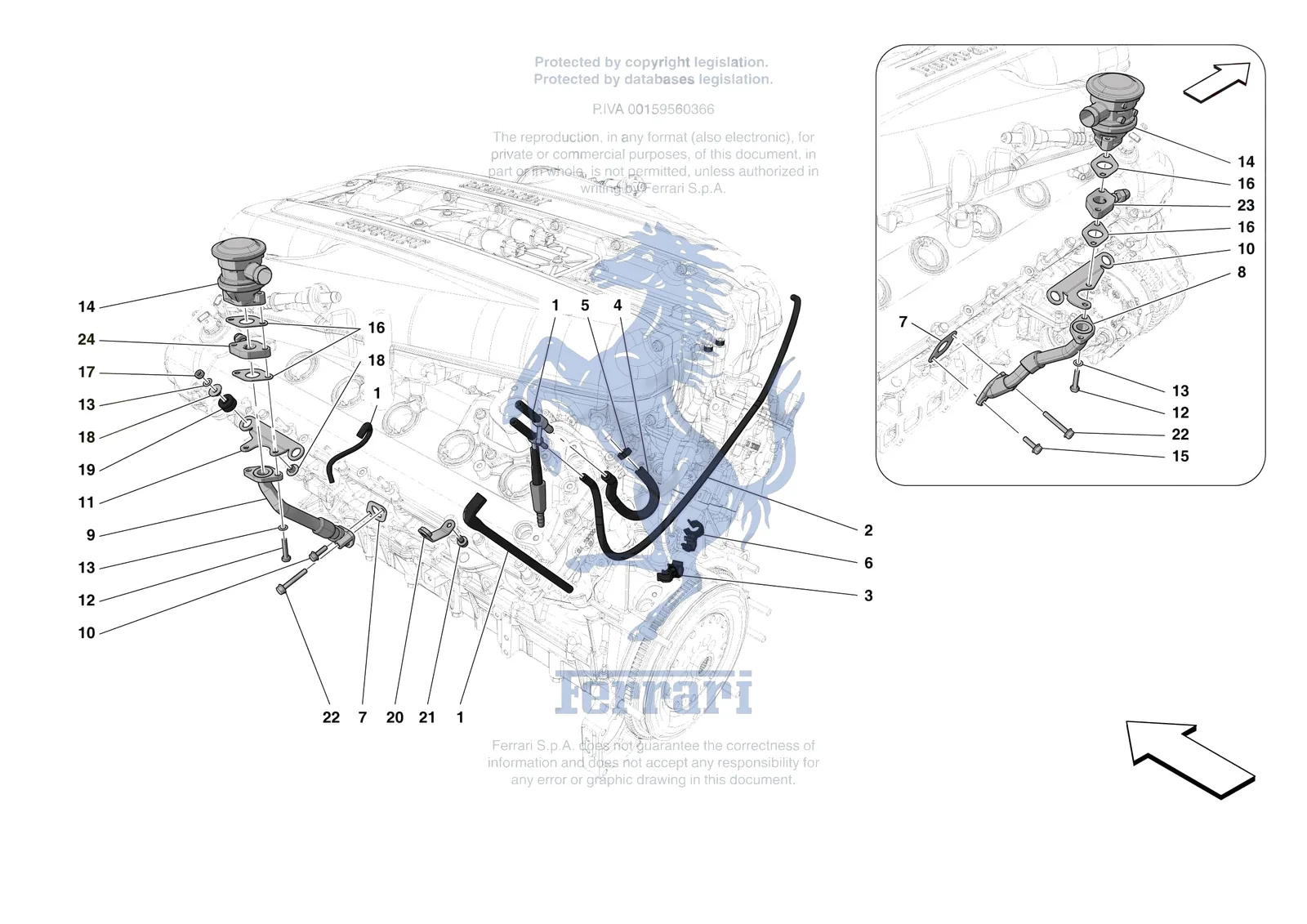

Exploded view of the [engine] - b.20 - emissions control system pipes and valves on the Ferrari Monza SP1, with 33 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Monza SP1 [ENGINE] - B.20 - EMISSIONS CONTROL SYSTEM PIPES AND VALVES exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/monza-sp1/0025.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 14039614 | Ferrari NUT - 14039614 | $0.40 | Available, ships in 3-6 days | |
| 252813 | Ferrari Shim - 252813 | Superseded | Order 264020 instead | |
| 210653 | Ferrari Spacer - 210653 | Superseded | Order 264020 instead | |
| 12601224 | Ferrari Washer - 12601224 | Superseded | Order 12601274 instead | |
| 12605370 | Ferrari Washer - 12605370 | Superseded | Order 12601274 instead | |
| 12605371 | Ferrari Washer - 12605371 | Superseded | Order 12601274 instead | |
| 680232 | Ferrari Washer - 680232 | Superseded | Order 12601274 instead | |
| 12605374 | Ferrari Wavy Washer - 12605374 | Superseded | Order 12601274 instead | |
| 1 | 327787 | Ferrari Vacuum Piping Complete - 327787 | $467.15 | Special order, ships in 7-14 days |
| 2 | 319519 | Ferrari Rubber Pipe - 319519 | $66.35 | Special order, ships in 7-14 days |
| 3 | 319429 | Ferrari Clip - 319429 | $2.82 | Special order, ships in 7-14 days |
| 4 | 319507 | Ferrari Rubber Pipe - 319507 | $51.62 | Special order, ships in 7-14 days |
| 5 | 13432070 | Ferrari/Maserati Screw Collar / Hose Clamp - 13432070 | $0.95 | In stock |
| 6 | 305301 | Ferrari Clip - 305301 | $1.04 | Special order, ships in 7-14 days |
| 7 | 202980 | Ferrari Gasket - 202980 | $4.89 | Available, ships in 3-6 days |
| 8 | 331917 | Ferrari Compl. RH Secondary Air Inlet - 331917 | $491.74 | Special order, ships in 7-14 days |
| 9 | 331918 | Ferrari Compl. LH Secondary Air Inlet - 331918 | $467.15 | Special order, ships in 7-14 days |
| 10 | 331919 | Ferrari RH Secondary Air Pipe Mounting Bracket - 331919 | $19.89 | Special order, ships in 7-14 days |
| 11 | 331920 | Ferrari LH Secondary Air Pipe Mounting Bracket - 331920 | $19.89 | Special order, ships in 7-14 days |
| 12 | 10902824 | Ferrari Screw M6 x 30 - 10902824 | $0.17 | Available, ships in 3-6 days |
| 13 | 12601274 | Ferrari Wavy Washer 6mm - 12601274 | $1.04 | Available, ships in 3-6 days |
| 14 | 284235 | Ferrari Secondary Air System Valve - 284235 | $417.97 | Available, ships in 3-6 days |
| 15 | 16286124 | Ferrari Screw M6x20 - 16286124 | $0.71 | Special order, ships in 7-14 days |
| 16 | 186781 | Ferrari/Maserati Secondary Air Gasket - 186781 | $6.05 | In stock |
| 17 | 15896211 | Ferrari Nut M6 x 5 - 15896211 | $0.13 | Available, ships in 3-6 days |
| 17 | 15896214 | Ferrari Nut M6 x 5 - 15896214 | Superseded | Order 14039614 instead |
| 18 | 183898 | Ferrari Bush - 183898 | $5.44 | Special order, ships in 7-14 days |
| 19 | 177576 | Ferrari Cable Grommet - 177576 | $4.12 | Available, ships in 3-6 days |
| 20 | 289882 | Ferrari Pipe Mounting Bracket - 289882 | $14.72 | Special order, ships in 7-14 days |
| 21 | 233600 | Ferrari/Maserati Screw - 233600 | $1.98 | In stock |
| 22 | 16286524 | Ferrari Screw - 16286524 | $1.30 | Available, ships in 3-6 days |
| 23 | 264020 | Ferrari RH Spacer Assembly - 264020 | $110.61 | Special order, ships in 7-14 days |
| 24 | 286011 | Ferrari LH Spacer Assembly - 286011 | $98.32 | Special order, ships in 7-14 days |
