Ferrari Monza SP1 — [ENGINE] - B.29 - AC COMPRESSOR (diagram 0034)

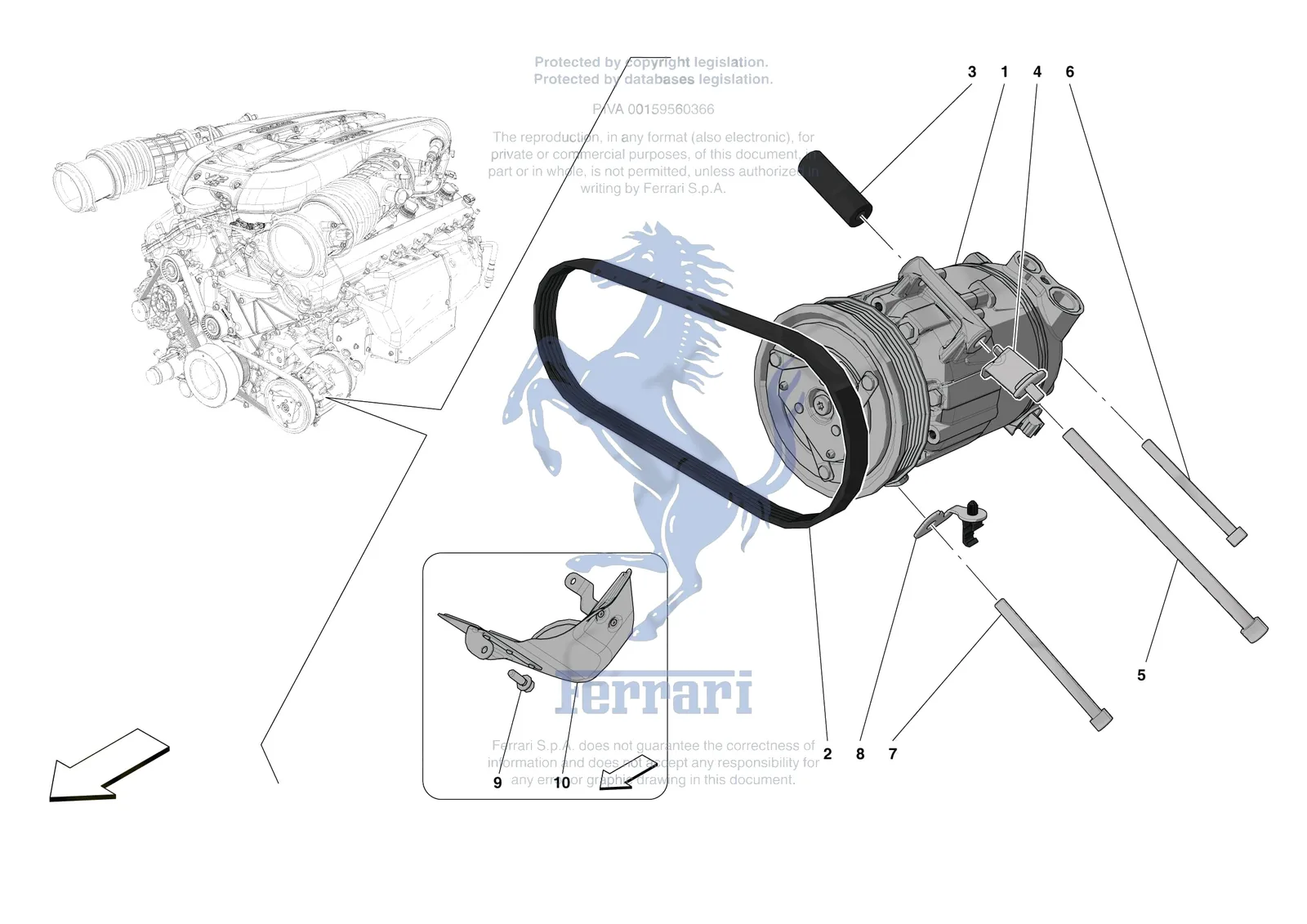

Exploded view of the [engine] - b.29 - ac compressor on the Ferrari Monza SP1, with 13 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Monza SP1 [ENGINE] - B.29 - AC COMPRESSOR exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/monza-sp1/0034.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 282769 | Ferrari Air Conditioning Compressor - 282769 | Superseded | Order 287339 instead | |
| 834367 | Ferrari Screw 8x25 - 834367 | Superseded | Order 231628 instead | |
| 1 | 287339 | Ferrari Air Conditioning Compressor - 287339 | $2,109.47 | Special order, ships in 7-14 days |
| 1 | 802718 | Ferrari Compressor Mahle With Valve - 802718 | $2,039.88 | Special order, ships in 7-14 days |
| 2 | 905873 | Ferrari Belt - 905873 | $63.37 | Available, ships in 3-6 days |
| 3 | 268408 | Ferrari Spacer - 268408 | $24.02 | Special order, ships in 7-14 days |
| 5 | 268409 | Ferrari Screw 8x145 - 268409 | $32.76 | Special order, ships in 7-14 days |
| 6 | 14307124 | Ferrari Screw M8 x 90 - 14307124 | $1.30 | Available, ships in 3-6 days |
| 7 | 14302024 | Ferrari Screw 8x95 - 14302024 | $3.68 | Special order, ships in 7-14 days |
| 8 | 938134 | Ferrari Bracket Compl. With Clip - 938134 | $83.57 | Special order, ships in 7-14 days |
| 8 | 284481 | Ferrari Bracket With Clip Complete - 284481 | $80.75 | Special order, ships in 7-14 days |
| 9 | 231628 | Ferrari Screw 8x25 - 231628 | $1.15 | Special order, ships in 7-14 days |
| 10 | 339133 | Ferrari Paratia Anticalore Compress - 339133 | $368.79 | Special order, ships in 7-14 days |
