Ferrari Monza SP1 — [GEARBOX] - C.01.01 - GEARBOX AND FASTENERS (diagram 0040)

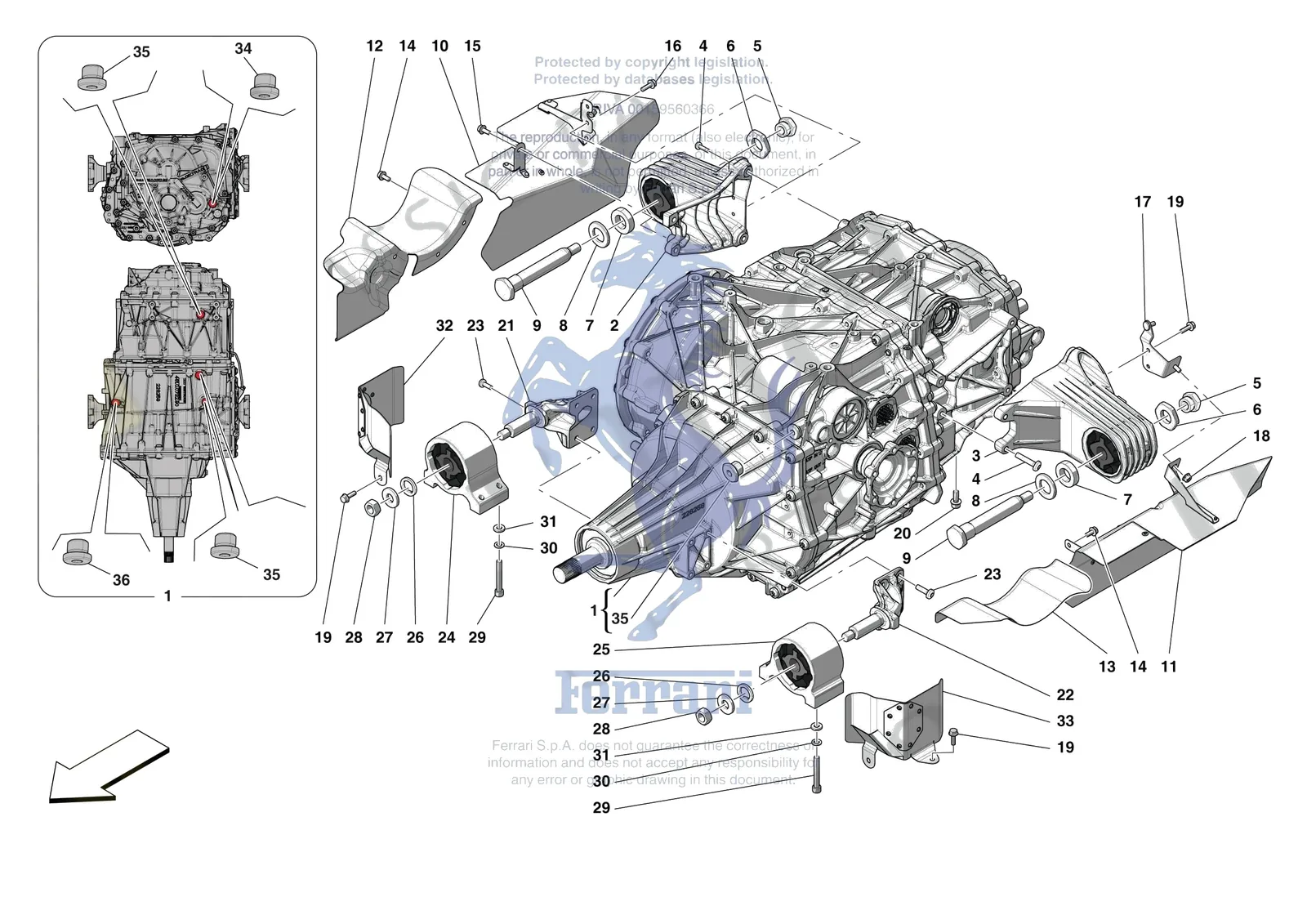

Exploded view of the [gearbox] - c.01.01 - gearbox and fasteners on the Ferrari Monza SP1, with 43 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Monza SP1 [GEARBOX] - C.01.01 - GEARBOX AND FASTENERS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/monza-sp1/0040.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 335846 | Ferrari Compl. Dct Gearbox - 335846 | Superseded | Order 790512 instead | |
| 272275 | Ferrari LH Gearbox Heat Shield - 272275 | Superseded | Order 294603 instead | |
| 243075 | Ferrari Pin - 243075 | $215.38 | Special order, ships in 7-14 days | |
| 263679 | Ferrari Plug - 263679 | $174.55 | Special order, ships in 7-14 days | |
| 14433121 | Ferrari Screw - 14433121 | Superseded | Order 231617 instead | |
| 884798 | Ferrari Spacer - 884798 | $18.32 | Special order, ships in 7-14 days | |
| 1 | 790512 | Ferrari Compl. DCT Gearbox - 790512 | $50,901.42 | Contact us to order |
| 2 | 266362 | Ferrari RH Rear Strut Complete - 266362 | $639.27 | Special order, ships in 7-14 days |
| 3 | 266364 | Ferrari LH Rear Strut Complete - 266364 | $660.87 | Available, ships in 3-6 days |
| 4 | 247857 | Ferrari Screw 8x35 - 247857 | $4.12 | Available, ships in 3-6 days |
| 5 | 260046 | Ferrari Nut - 260046 | $22.56 | Available, ships in 3-6 days |
| 5 | 287404 | Ferrari Nut - 287404 | Superseded | Order 260046 instead |
| 6 | 287405 | Ferrari Shim - 287405 | $21.39 | Special order, ships in 7-14 days |
| 7 | 243122 | Ferrari Shim - 243122 | $11.56 | Special order, ships in 7-14 days |
| 8 | 10731314 | Ferrari Washer - 10731314 | $3.03 | Available, ships in 3-6 days |
| 9 | 899238 | Ferrari Gearbox Mounting Bush Pin - 899238 | $189.31 | Special order, ships in 7-14 days |
| 10 | 272274 | Ferrari RH Gearbox Heat Shield - 272274 | $344.21 | Special order, ships in 7-14 days |
| 11 | 294603 | Ferrari LH Gearbox Heat Shield - 294603 | $319.62 | Special order, ships in 7-14 days |
| 12 | 259461 | Ferrari RH Axle Shaft Heat Shield - 259461 | $218.81 | Special order, ships in 7-14 days |
| 13 | 248707 | Ferrari LH Axle Shaft Heat Shield - 248707 | $115.54 | Available, ships in 3-6 days |
| 14 | 16296924 | Ferrari Screw M6 x 14 TE - 16296924 | $0.54 | Available, ships in 3-6 days |
| 15 | 233600 | Ferrari/Maserati Screw - 233600 | $1.98 | In stock |
| 16 | 231617 | Ferrari Screw M6 x 18 TCEI - 231617 | Superseded | Order 14433124 instead |
| 17 | 263583 | Ferrari Bracket - 263583 | $51.62 | Special order, ships in 7-14 days |
| 18 | 14040611 | Ferrari Nut M6 - 14040611 | $0.57 | Available, ships in 3-6 days |
| 19 | 16286124 | Ferrari Screw M6x20 - 16286124 | $0.71 | Special order, ships in 7-14 days |
| 20 | 248471 | Ferrari Screw 8x20 - 248471 | $2.07 | Available, ships in 3-6 days |
| 21 | 301074 | Ferrari RH Front DCT Gearbox Strut - 301074 | $344.21 | Special order, ships in 7-14 days |
| 22 | 301073 | Ferrari LH Front DCT Gearbox Strut - 301073 | $344.21 | Special order, ships in 7-14 days |
| 23 | 247856 | Ferrari Screw TORX M8 x 1.25x 25 - 247856 | $3.68 | Available, ships in 3-6 days |
| 24 | 319484 | Ferrari Compl. RH Bushing Mount - 319484 | $565.49 | Special order, ships in 7-14 days |
| 25 | 319482 | Ferrari Compl. LH Bushing Mount - 319482 | $565.49 | Special order, ships in 7-14 days |
| 26 | 300597 | Ferrari Anti Rotation Washer - 300597 | $29.48 | Available, ships in 3-6 days |
| 27 | 12644924 | Ferrari Washer - 12644924 | $3.47 | Available, ships in 3-6 days |
| 28 | 12164024 | Ferrari Nut M14 x 1.5 x 11 - 12164024 | $3.26 | Available, ships in 3-6 days |
| 29 | 14302224 | Ferrari Allen Screw M8 x 55 TCEI - 14302224 | $1.30 | Available, ships in 3-6 days |
| 30 | 11198074 | Ferrari/Maserati Washer - 11198074 | $0.14 | In stock |
| 31 | 12654424 | Ferrari Washer - 12654424 | $0.98 | Available, ships in 3-6 days |
| 32 | 326173 | Ferrari RH Front Mount Heat Shield - 326173 | $194.22 | Special order, ships in 7-14 days |
| 33 | 326174 | Ferrari LH Front Mount Heat Shield - 326174 | $194.22 | Special order, ships in 7-14 days |
| 34 | 70005055 | Ferrari Gl5 Oil Level Cap - 70005055 | $88.49 | Special order, ships in 7-14 days |
| 35 | 70004679 | Ferrari Screw Plug - 70004679 | $36.86 | Available, ships in 3-6 days |
| 36 | 70005056 | Ferrari Atf Oil Level Cap - 70005056 | $27.03 | Special order, ships in 7-14 days |
