Ferrari Monza SP1 — [MECHANICAL SYSTEM] - D.2 - ENGINE FUEL DELIVERY PIPES (diagram 0049)

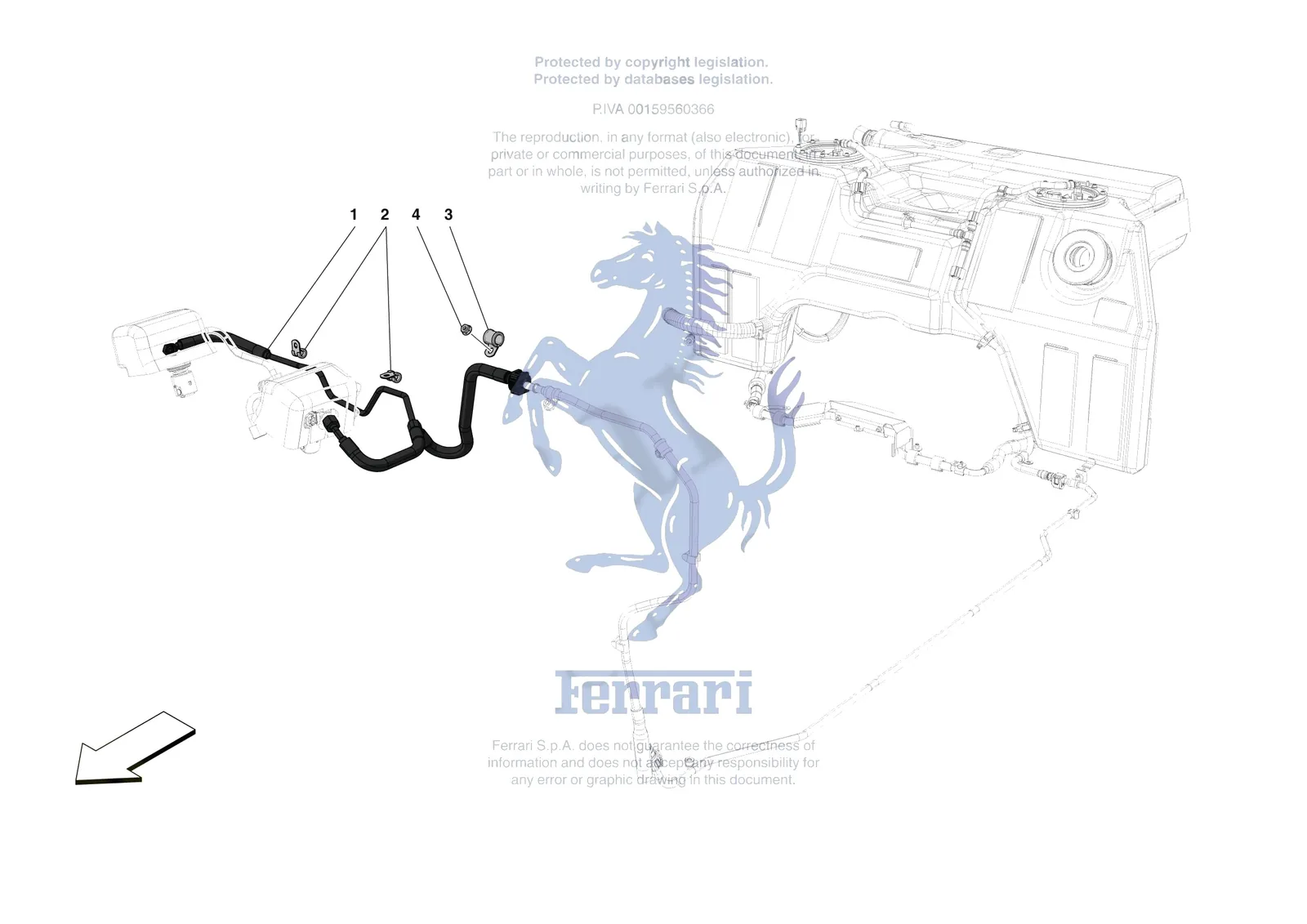

Exploded view of the [mechanical system] - d.2 - engine fuel delivery pipes on the Ferrari Monza SP1, with 5 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Monza SP1 [MECHANICAL SYSTEM] - D.2 - ENGINE FUEL DELIVERY PIPES exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/monza-sp1/0049.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 769765 | Ferrari Low Pressure Fuel Pipe - 769765 | Superseded | Order 916308 instead |
| 1 | 916308 | Ferrari Low Pressure Fuel Pipe - 916308 | $1,450.67 | Special order, ships in 7-14 days |
| 2 | 67190200 | Ferrari Bracket With Sheath 14mm - 67190200 | $3.91 | Special order, ships in 7-14 days |
| 3 | 10441490 | Ferrari/Maserati Retaining Clip - 10441490 | $1.35 | In stock |
| 4 | 14040611 | Ferrari Nut M6 - 14040611 | $0.57 | Available, ships in 3-6 days |
