Ferrari Monza SP1 — [MECHANICAL SYSTEM] - D.04.01 - AIR FILTER AIR INTAKE AND DUCTS (diagram 0051)

Exploded view of the [mechanical system] - d.04.01 - air filter air intake and ducts on the Ferrari Monza SP1, with 55 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

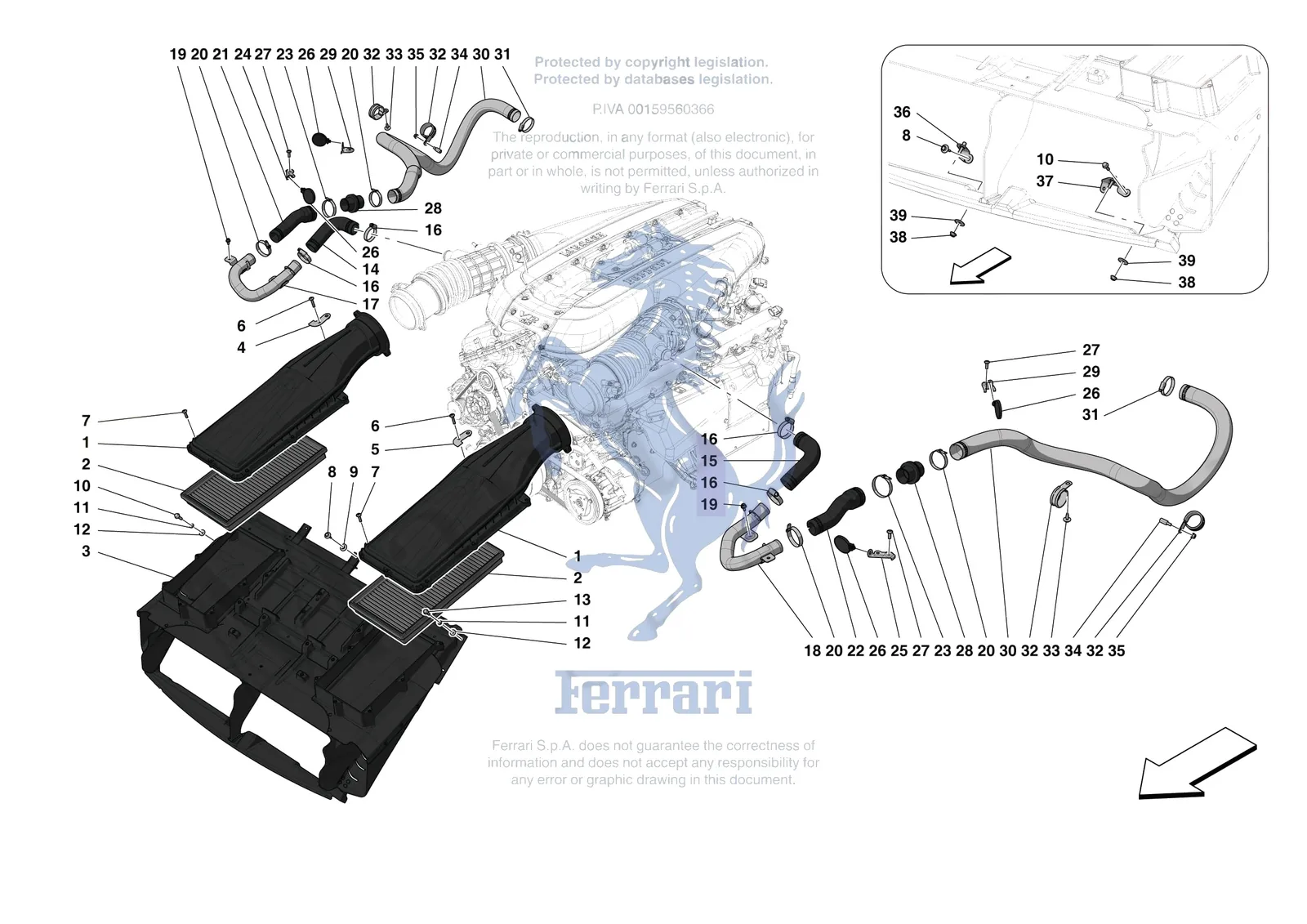

Ferrari Monza SP1 [MECHANICAL SYSTEM] - D.04.01 - AIR FILTER AIR INTAKE AND DUCTS exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
291689Ferrari Air Filter - 291689SupersededOrder 812789 instead
85833700Ferrari SCREW - 85833700$0.65Available, ships in 3-6 days
12638108Ferrari Washer - 12638108SupersededOrder 12638178 instead
12638177Ferrari Washer - 12638177SupersededOrder 12638178 instead
12643707Ferrari Washer - 12643707SupersededOrder 12643778 instead
12643777Ferrari Washer - 12643777SupersededOrder 12643778 instead
61276300Ferrari Washer - 61276300SupersededOrder 12638178 instead
1333295Ferrari Air Filter Cover - 333295$216.35Available, ships in 3-6 days
1333296Ferrari Air Filter Cover - 333296$6,671.55Special order, ships in 7-14 days
2802766Ferrari Air Filter - 802766$327.81Available, ships in 3-6 days
2812789Ferrari Air Filter - 812789$298.98In stock
2291688Ferrari Air Filter Element - 291688SupersededOrder 802766 instead
2842754Ferrari Air Filter Element - 842754SupersededOrder 812789 instead
3879940Ferrari Convogl. Aria Asp. Motore R - 879940$2,993.25Special order, ships in 7-14 days
4338528Ferrari RH Fastener Bracket - 338528$29.48Special order, ships in 7-14 days
4338620Ferrari RH Fastener Bracket - 338620$39.31Special order, ships in 7-14 days
5338529Ferrari LH Fastener Bracket - 338529$29.48Special order, ships in 7-14 days
5338624Ferrari LH Fastener Bracket - 338624$39.31Special order, ships in 7-14 days
685834000Ferrari Screw M5 x 25 - 85834000$0.71Special order, ships in 7-14 days
785692300Ferrari Screw M5 x 20 TBFTX - 85692300$0.65Available, ships in 3-6 days
815699804Ferrari Screw 6X20 - 15699804$0.38Available, ships in 3-6 days
912643778Ferrari Washer 6-18 x 1.5 - 12643778$0.54Available, ships in 3-6 days
1016281827Ferrari Screw 5x14 - 16281827$0.46Special order, ships in 7-14 days
11166467Ferrari Wavy Washer D. 5 - 10 mm - 166467$1.80Available, ships in 3-6 days
1212638178Ferrari Washer 5.45-14x1 - 12638178$0.13Available, ships in 3-6 days
1316285227Ferrari Screw M5 x 20 - 16285227$0.59Available, ships in 3-6 days
14879246Ferrari Manicotto Gomma Dx Sound Gen - 879246$73.41Special order, ships in 7-14 days
15877755Ferrari Manicotto Gomma Sx Sound Gen - 877755$80.75Special order, ships in 7-14 days
16296780Ferrari Hose Clamp 25 to 40mm - 296780$17.02Special order, ships in 7-14 days
17879281Ferrari Tubo Rigido Dx Sound Generat - 879281$611.91Special order, ships in 7-14 days
18877756Ferrari Tubo Rigido Sx Sound Generat - 877756$611.91Special order, ships in 7-14 days
1911566224Ferrari Screw 5x14 - 11566224$0.77Available, ships in 3-6 days
20262114Ferrari Collar - 262114$2.38Available, ships in 3-6 days
21879247Ferrari Manicotto Dx Su Porta Membra - 879247$73.41Special order, ships in 7-14 days
22877757Ferrari Manicotto Sx Su Porta Membra - 877757$78.30Special order, ships in 7-14 days
23262116Ferrari Collar - 262116$6.10Available, ships in 3-6 days
24336066Ferrari Bracket - 336066$34.25Special order, ships in 7-14 days
25336067Ferrari Bracket - 336067$34.25Special order, ships in 7-14 days
26217854Ferrari CLAMP - 217854$0.52Available, ships in 3-6 days
27269959Ferrari Screw - 269959$1.61In stock
28786536Ferrari Membrane Holder Pipe - 786536$145.03Special order, ships in 7-14 days
29336068Ferrari Bracket - 336068$36.69Special order, ships in 7-14 days
30873584Ferrari Tubo Spiralato D.38 L1250 - 873584$319.62Special order, ships in 7-14 days
30965128Ferrari Tubo Spiralato D.38 L1250 - 965128$319.62Special order, ships in 7-14 days
31296782Ferrari Hose Clamp 32-50mm - 296782$17.67Available, ships in 3-6 days
32175119Ferrari Bracket With Sheath - 175119$11.29Special order, ships in 7-14 days
3381045300Ferrari Screw 6x16 - 81045300$1.36Special order, ships in 7-14 days
34212519Ferrari Stud Bolt - 212519$12.29Special order, ships in 7-14 days
3514040611Ferrari Nut M6 - 14040611$0.57Available, ships in 3-6 days
36330024Ferrari Bracket - Air Conveyor Central - 330024$36.86Special order, ships in 7-14 days
37330023Ferrari Bracket - Air Conveyor - 330023$36.86Special order, ships in 7-14 days
3813046011Ferrari Flanged Nut - 13046011$0.73Available, ships in 3-6 days
3813046012Ferrari Nut - 13046012SupersededOrder 13046011 instead
3961148700Ferrari WASHER - 61148700SupersededOrder 12643724 instead
3912643724Ferrari/Maserati Washer - 12643724$0.20In stock

All Monza SP1 diagrams
