Ferrari Monza SP1 — [MECHANICAL SYSTEM] - D.08.02 - EXHAUST SYSTEM - REAR SECTION (diagram 0057)

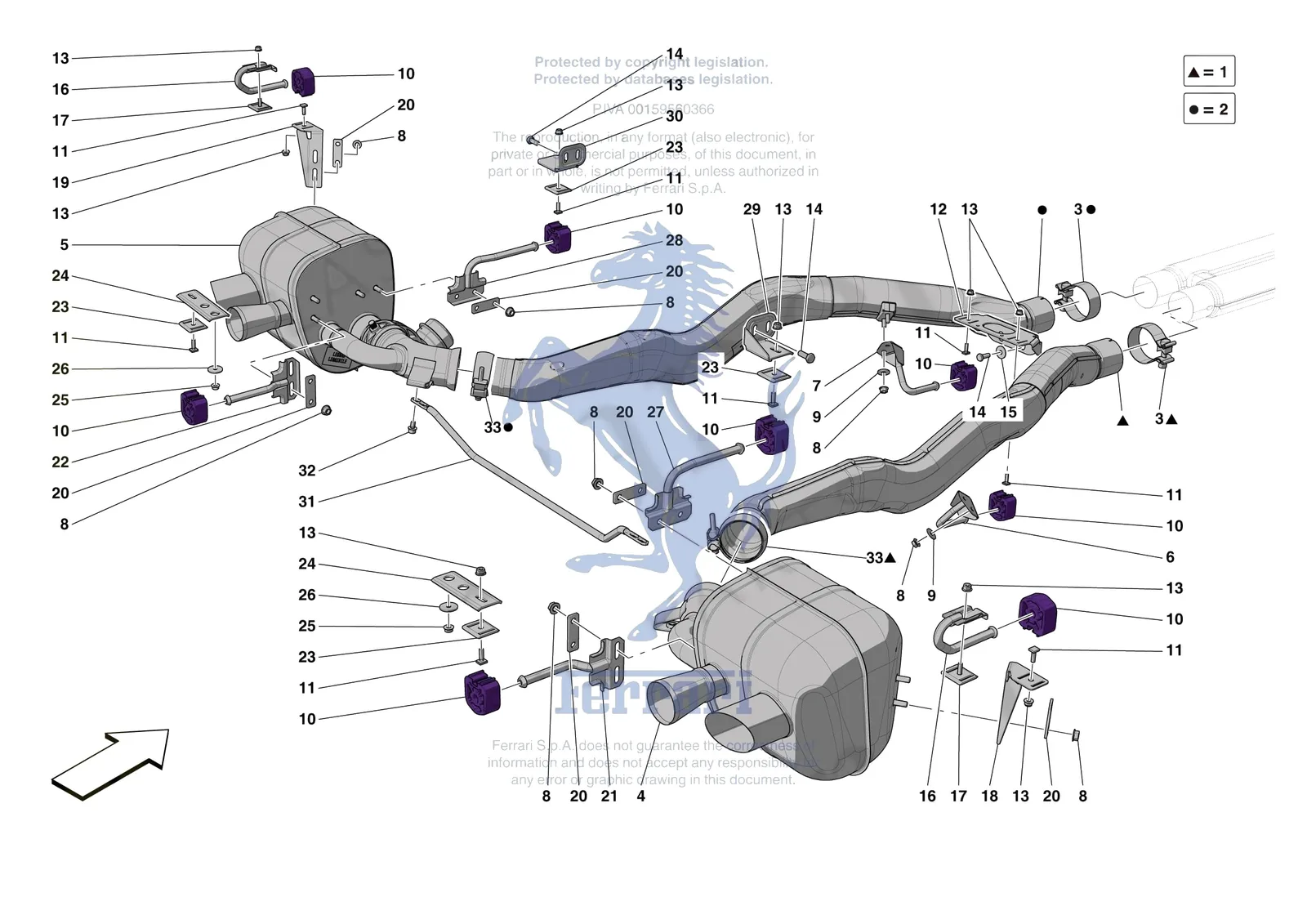

Exploded view of the [mechanical system] - d.08.02 - exhaust system - rear section on the Ferrari Monza SP1, with 37 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Monza SP1 [MECHANICAL SYSTEM] - D.08.02 - EXHAUST SYSTEM - REAR SECTION exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/monza-sp1/0057.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 270491 | Ferrari LH Rear Silencer Bracket - 270491 | Superseded | Order 291433 instead | |
| 270490 | Ferrari RH Rear Silencer Bracket - 270490 | Superseded | Order 291432 instead | |
| 13578311 | Ferrari Washer - 13578311 | Superseded | Order 13578324 instead | |
| 14498804 | Ferrari Washer - 14498804 | Superseded | Order 14498824 instead | |
| 1 | 331671 | Ferrari RH Rear Extension - 331671 | $1,852.54 | Special order, ships in 7-14 days |
| 2 | 331672 | Ferrari LH Rear Extension - 331672 | $1,852.54 | Special order, ships in 7-14 days |
| 3 | 282998 | Ferrari Ring Clamp - 282998 | $36.08 | Special order, ships in 7-14 days |
| 4 | 891249 | Ferrari Silenziatore Dx - 891249 | $3,597.29 | Special order, ships in 7-14 days |
| 5 | 891248 | Ferrari Silenziatore Sx - 891248 | $3,597.29 | Special order, ships in 7-14 days |
| 6 | 278732 | Ferrari RH Removable Bracket - 278732 | $98.32 | Special order, ships in 7-14 days |
| 7 | 278733 | Ferrari LH Removable Bracket - 278733 | $98.32 | Special order, ships in 7-14 days |
| 8 | 14059311 | Ferrari NUT - 14059311 | $0.52 | Available, ships in 3-6 days |
| 9 | 13578324 | Ferrari Washer 8.15-24x 2 - 13578324 | $0.44 | Available, ships in 3-6 days |
| 10 | 289529 | Ferrari Rubber Exhaust Mount - 289529 | $74.30 | Available, ships in 3-6 days |
| 11 | 250222 | Ferrari Screw Squared Head 6x18.5 - 250222 | $5.44 | Special order, ships in 7-14 days |
| 12 | 272447 | Ferrari Extension Mounting Bracket - 272447 | $103.25 | Special order, ships in 7-14 days |
| 13 | 14058421 | Ferrari Nut M6 x 6 - 14058421 | $2.38 | Available, ships in 3-6 days |
| 14 | 16043524 | Ferrari Screw 8x22 - 16043524 | $0.19 | Available, ships in 3-6 days |
| 15 | 12647024 | Ferrari Washer - 12647024 | $1.02 | Available, ships in 3-6 days |
| 16 | 878073 | Ferrari Lateral Silencer Bracket - 878073 | $166.42 | Special order, ships in 7-14 days |
| 17 | 849158 | Ferrari Plate - 849158 | $34.25 | Special order, ships in 7-14 days |
| 18 | 849155 | Ferrari RH Lateral Bracket on Silencer - 849155 | $66.07 | Special order, ships in 7-14 days |
| 19 | 849156 | Ferrari LH Lateral Bracket on Silencer - 849156 | $66.07 | Special order, ships in 7-14 days |
| 20 | 240597 | Ferrari Bracket - 240597 | $17.19 | Available, ships in 3-6 days |
| 21 | 291432 | Ferrari RH Rear Silencer Bracket - 291432 | $100.78 | Special order, ships in 7-14 days |
| 22 | 291433 | Ferrari LH Rear Silencer Bracket - 291433 | $100.78 | Special order, ships in 7-14 days |
| 23 | 240598 | Ferrari Bracket Plate - 240598 | $21.60 | Available, ships in 3-6 days |
| 24 | 266812 | Ferrari AR Bracket - 266812 | $29.48 | Special order, ships in 7-14 days |
| 25 | 14059214 | Ferrari Flanged Nut M6 - 14059214 | $0.38 | Available, ships in 3-6 days |
| 26 | 12640624 | Ferrari Plain Washer 6mm - 12640624 | $0.31 | Available, ships in 3-6 days |
| 27 | 272542 | Ferrari RH Rear Bracket On Silencer - 272542 | $103.25 | Special order, ships in 7-14 days |
| 28 | 272543 | Ferrari LH Rear Bracket On Silencer - 272543 | $103.25 | Special order, ships in 7-14 days |
| 29 | 282086 | Ferrari RH Front Bracket - 282086 | $51.62 | Special order, ships in 7-14 days |
| 30 | 282087 | Ferrari LH Front Bracket - 282087 | $51.62 | Special order, ships in 7-14 days |
| 31 | 283513 | Ferrari Silencer Crosspiece - 283513 | $162.25 | Special order, ships in 7-14 days |
| 32 | 280460 | Ferrari Screw M8 x 14 TCEI with Washer - 280460 | $9.16 | Available, ships in 3-6 days |
| 33 | 270454 | Ferrari Clamp D.70mm - 270454 | $28.39 | Available, ships in 3-6 days |
