Ferrari Monza SP1 — [MECHANICAL SYSTEM] - D.9 - ENGINE OIL RADIATOR AND TANK (diagram 0058)

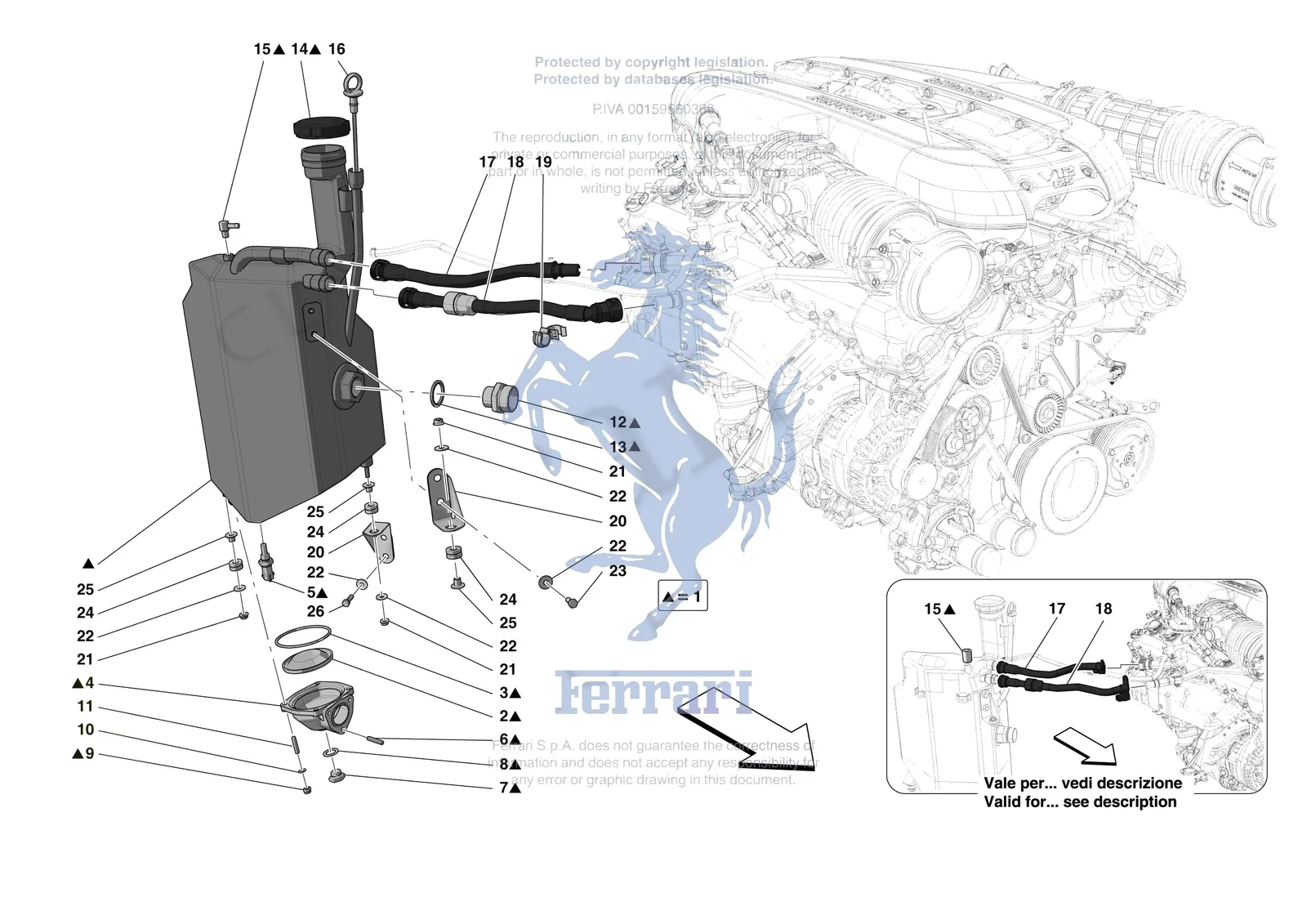

Exploded view of the [mechanical system] - d.9 - engine oil radiator and tank on the Ferrari Monza SP1, with 52 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

Ferrari Monza SP1 [MECHANICAL SYSTEM] - D.9 - ENGINE OIL RADIATOR AND TANK exploded diagram

Parts on this diagram

Ref.Part numberPartPriceAvailability
10902121Ferrari Bolt - 10902121SupersededOrder 10902124 instead
10902426Ferrari Bolt - 10902426SupersededOrder 10902424 instead
95880306Ferrari Bolt 6x16 - 95880306SupersededOrder 10902124 instead
10902421Ferrari Bolt M6 - 10902421$0.25Available, ships in 3-6 days
144485Ferrari Dowty Washer - 144485SupersededOrder 898271 instead
103373Ferrari Nut - 103373SupersededOrder 102948 instead
12774221Ferrari Nut - 12774221SupersededOrder 102948 instead
125519Ferrari Nyloc Nut - 125519SupersededOrder 102948 instead
12574221Ferrari Nyloc Nut - 12574221SupersededOrder 102948 instead
13541121Ferrari Stud 6x12mm - 13541121SupersededOrder 13541124 instead
117715Ferrari Threaded Connector - 117715$8.51Special order, ships in 7-14 days
12601224Ferrari Washer - 12601224SupersededOrder 12601274 instead
12605370Ferrari Washer - 12605370SupersededOrder 12601274 instead
12605371Ferrari Washer - 12605371SupersededOrder 12601274 instead
12643711Ferrari Washer - 12643711SupersededOrder 12643724 instead
12643721Ferrari Washer - 12643721SupersededOrder 12643724 instead
14499301Ferrari Washer - 14499301SupersededOrder 12643724 instead
680232Ferrari Washer - 680232SupersededOrder 12601274 instead
12605374Ferrari Wavy Washer - 12605374SupersededOrder 12601274 instead
10257060Ferrari/Maserati Copper Washer - 10257060$1.10In stock
1895881Ferrari Complete Engine Oil Tank - 895881$3,833.39Special order, ships in 7-14 days
1813291Ferrari Serbatoio Olio Motore C - 813291$3,821.67Special order, ships in 7-14 days
2100332Ferrari Sump Filter - 100332$37.13Available, ships in 3-6 days
3125521Ferrari/Maserati Oil Tank O-Ring - 125521$13.20In stock
4210914Ferrari Oil Pickup - 210914$860.56Special order, ships in 7-14 days
5180137Ferrari/Maserati Water Temperature Sender / Sensor - 180137$25.19In stock
613541124Ferrari Stud 6x12 Stem 20 - 13541124$43.68Available, ships in 3-6 days
7293107Ferrari Threaded Plug - 293107$154.07Available, ships in 3-6 days
810261460Ferrari Copper Washer 16x24x1.5 - 10261460$0.63Available, ships in 3-6 days
9102948Ferrari Nyloc Nut M6 x 8 - 102948$0.46Available, ships in 3-6 days
1012601274Ferrari Wavy Washer 6mm - 12601274$1.04Available, ships in 3-6 days
1111500424Ferrari Stud M6 x 9 Gambo 20 - 11500424$1.04Available, ships in 3-6 days
1111500524Ferrari Stud Bolt M6 x 9 Gambo 22 - 11500524$0.73Available, ships in 3-6 days
12138149Ferrari Union - 138149$90.95Special order, ships in 7-14 days
13891997Ferrari Gasket - 891997SupersededOrder 898271 instead
13898271Ferrari/Maserati Dowty Washer - 898271$28.23In stock
14175708Ferrari Fuel Filler Cap - 175708$250.00In stock
15290538Ferrari Connector - 290538SupersededOrder 117715 instead
1514326101Ferrari Threaded Connector - 14326101$2.38Special order, ships in 7-14 days
16342579Ferrari COMPL. OIL DIPSTICK - 342579$344.21Special order, ships in 7-14 days
17333851Ferrari Oil Vapour Pipe From Reservo - 333851$270.44Special order, ships in 7-14 days
17333853Ferrari Oil Vapour Pipe From Reservo - 333853$125.37Special order, ships in 7-14 days
18330592Ferrari Vapour Pipe From Disconnecto - 330592$786.79Special order, ships in 7-14 days
18333854Ferrari Vapour Pipe From Disconnecto - 333854$663.86Special order, ships in 7-14 days
19330910Ferrari Clip - 330910$4.35Special order, ships in 7-14 days
20269835Ferrari Fastener Bracket - 269835$51.62Special order, ships in 7-14 days
2114059214Ferrari Flanged Nut M6 - 14059214$0.38Available, ships in 3-6 days
2212643724Ferrari/Maserati Washer - 12643724$0.20In stock
2310902124Ferrari Screw - 10902124$0.29In stock
24103549Ferrari Grommet - 103549$2.80In stock
25149707Ferrari Spacer - 149707$2.13Available, ships in 3-6 days
2610902424Ferrari Bolt M6 x 20 - 10902424$0.27Available, ships in 3-6 days

All Monza SP1 diagrams
