Ferrari Monza SP1 — [MECHANICAL SYSTEM] - D.14 - ENGINE COOLING SYSTEM RADIATORS (diagram 0063)

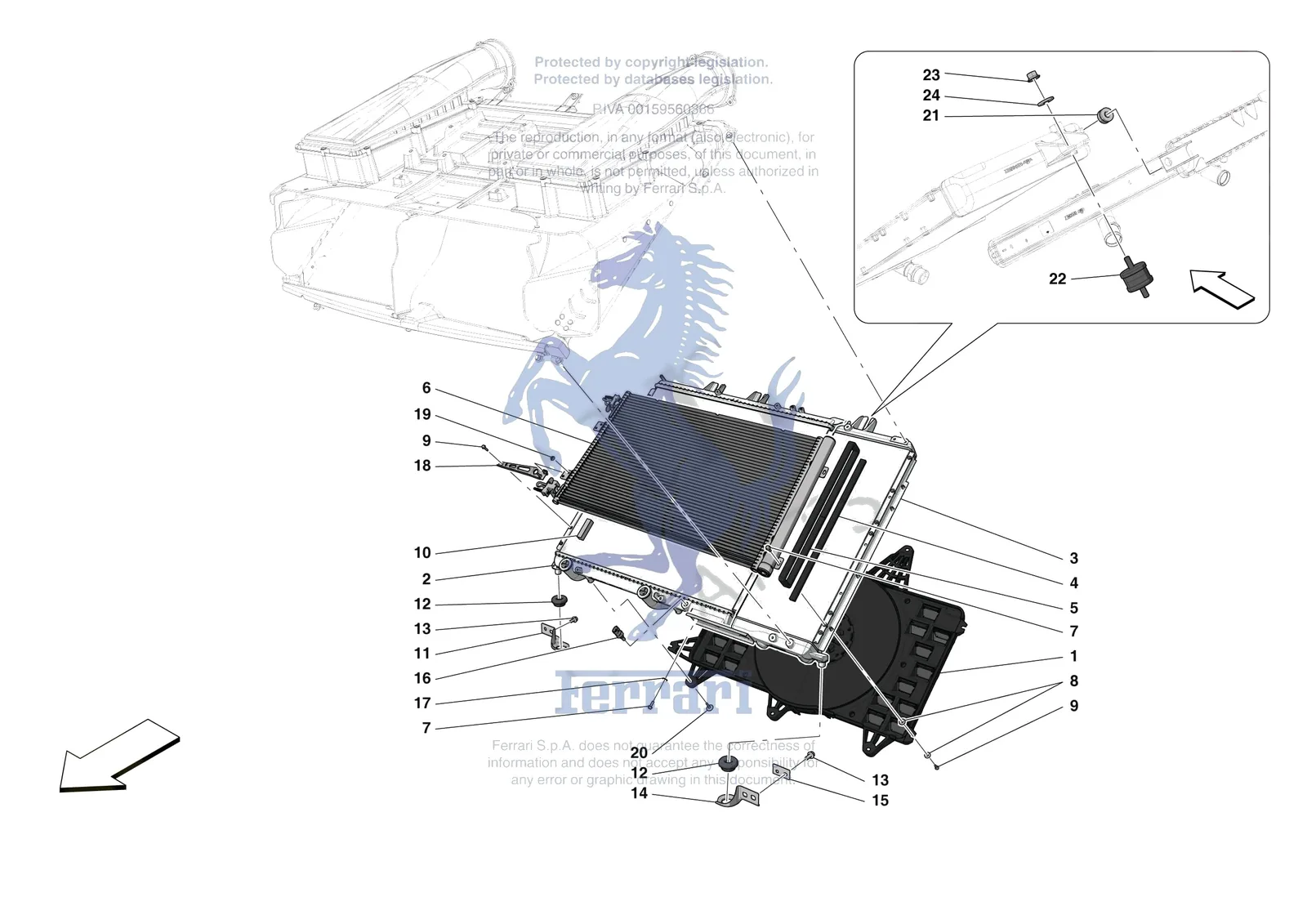

Exploded view of the [mechanical system] - d.14 - engine cooling system radiators on the Ferrari Monza SP1, with 33 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Monza SP1 [MECHANICAL SYSTEM] - D.14 - ENGINE COOLING SYSTEM RADIATORS exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/monza-sp1/0063.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 263428 | Ferrari Engine Oil Radiator - 263428 | Superseded | Order 277227 instead | |
| 329394 | Ferrari LH Lower Bracket - 329394 | Superseded | Order 328406 instead | |
| 12638108 | Ferrari Washer - 12638108 | Superseded | Order 12638178 instead | |
| 12638177 | Ferrari Washer - 12638177 | Superseded | Order 12638178 instead | |
| 12643711 | Ferrari Washer - 12643711 | Superseded | Order 12643724 instead | |
| 12643721 | Ferrari Washer - 12643721 | Superseded | Order 12643724 instead | |
| 14499301 | Ferrari Washer - 14499301 | Superseded | Order 12643724 instead | |
| 61276300 | Ferrari Washer - 61276300 | Superseded | Order 12638178 instead | |
| 1 | 331018 | Ferrari Cowl With Electric Fans - 331018 | $2,833.47 | Special order, ships in 7-14 days |
| 2 | 319867 | Ferrari Engine Water Radiator - 319867 | $2,130.95 | Special order, ships in 7-14 days |
| 3 | 277227 | Ferrari Engine Oil Radiator - 277227 | $3,102.77 | Special order, ships in 7-14 days |
| 4 | 342270 | Ferrari Rubber Shim - 342270 | $4.56 | Special order, ships in 7-14 days |
| 5 | 342269 | Ferrari Rubber Shim - 342269 | $7.84 | Special order, ships in 7-14 days |
| 6 | 265489 | Ferrari Air Con Filter Condenser - 265489 | $1,005.35 | Available, ships in 3-6 days |
| 7 | 16285127 | Ferrari Screw M5 x 16 - 16285127 | $1.05 | Special order, ships in 7-14 days |
| 8 | 12643724 | Ferrari/Maserati Washer - 12643724 | $0.20 | In stock |
| 9 | 16285227 | Ferrari Screw M5 x 20 - 16285227 | $0.59 | Available, ships in 3-6 days |
| 10 | 332668 | Ferrari Rubber Shim - 332668 | $2.59 | Special order, ships in 7-14 days |
| 11 | 328405 | Ferrari Lower RH Bracket - 328405 | $117.99 | Special order, ships in 7-14 days |
| 12 | 307674 | Ferrari Radiator Mounting Bush - 307674 | $12.99 | Special order, ships in 7-14 days |
| 13 | 16287127 | Ferrari Screw 8x20 - 16287127 | $0.92 | Special order, ships in 7-14 days |
| 14 | 328406 | Ferrari LH Lower Bracket - 328406 | $117.99 | Special order, ships in 7-14 days |
| 15 | 329502 | Ferrari Plate - 329502 | $17.92 | Special order, ships in 7-14 days |
| 16 | 180137 | Ferrari/Maserati Water Temperature Sender / Sensor - 180137 | $25.19 | In stock |
| 17 | 12638178 | Ferrari Washer 5.45-14x1 - 12638178 | $0.13 | Available, ships in 3-6 days |
| 18 | 268656 | Ferrari Condenser Mounting Bracket - 268656 | $66.35 | Special order, ships in 7-14 days |
| 19 | 13046011 | Ferrari Flanged Nut - 13046011 | $0.73 | Available, ships in 3-6 days |
| 19 | 13046012 | Ferrari Nut - 13046012 | Superseded | Order 13046011 instead |
| 20 | 15699804 | Ferrari Screw 6X20 - 15699804 | $0.38 | Available, ships in 3-6 days |
| 21 | 103549 | Ferrari Grommet - 103549 | $2.80 | In stock |
| 22 | 271472 | Ferrari Plug - 271472 | $22.60 | Special order, ships in 7-14 days |
| 23 | 14040711 | Ferrari Nut M8 - 14040711 | $0.79 | Available, ships in 3-6 days |
| 24 | 12647024 | Ferrari Washer - 12647024 | $1.02 | Available, ships in 3-6 days |
