Ferrari Monza SP1 — [MECHANICAL SYSTEM] - D.21 - SERVO BRAKE PIPES (diagram 0070)

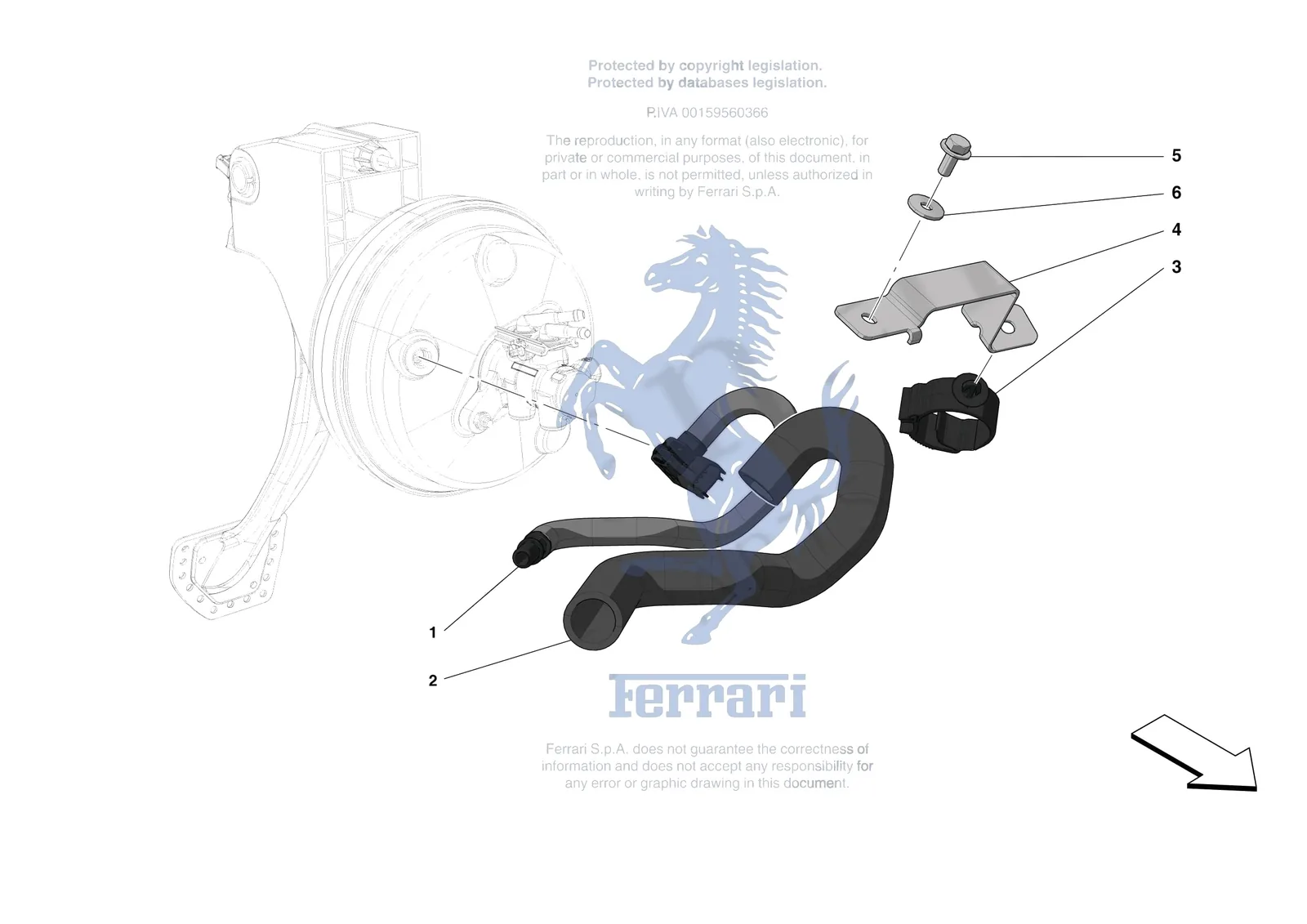

Exploded view of the [mechanical system] - d.21 - servo brake pipes on the Ferrari Monza SP1, with 10 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.
![Ferrari Monza SP1 [MECHANICAL SYSTEM] - D.21 - SERVO BRAKE PIPES exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/monza-sp1/0070.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 12643711 | Ferrari Washer - 12643711 | Superseded | Order 12643724 instead | |
| 12643721 | Ferrari Washer - 12643721 | Superseded | Order 12643724 instead | |
| 14499301 | Ferrari Washer - 14499301 | Superseded | Order 12643724 instead | |
| 1 | 339549 | Ferrari Pipe From Disconnecter Union - 339549 | Superseded | Order 993910 instead |
| 1 | 993910 | Ferrari Pipe From Disconnecter Union - 993910 | $467.15 | Special order, ships in 7-14 days |
| 2 | 334923 | Ferrari Heat Shield For Kaiser Pipe - 334923 | $467.15 | Special order, ships in 7-14 days |
| 3 | 278577 | Ferrari Tube Clamp D.30-40mm - 278577 | $3.68 | Special order, ships in 7-14 days |
| 4 | 912273 | Ferrari Vacuum Pipe Alignment Bracke - 912273 | $83.20 | Special order, ships in 7-14 days |
| 5 | 11625621 | Ferrari Screw - 11625621 | $1.11 | Available, ships in 3-6 days |
| 6 | 12643724 | Ferrari/Maserati Washer - 12643724 | $0.20 | In stock |
