Ferrari Monza SP1 — [MECHANICAL SYSTEM] - D.23 - HYDRAULIC BRAKE CONTROL PIPES -Not for RHD- (diagram 0072)
Exploded view of the [mechanical system] - d.23 - hydraulic brake control pipes -not for rhd- on the Ferrari Monza SP1, with 18 parts. Click a number on the drawing, or use the list, to see each part number, its price and availability, and order it from AW Italian. Not sure it is the right part for your car? Call 800-631-5589, text 732-542-5600 or email info@awitalian.com.

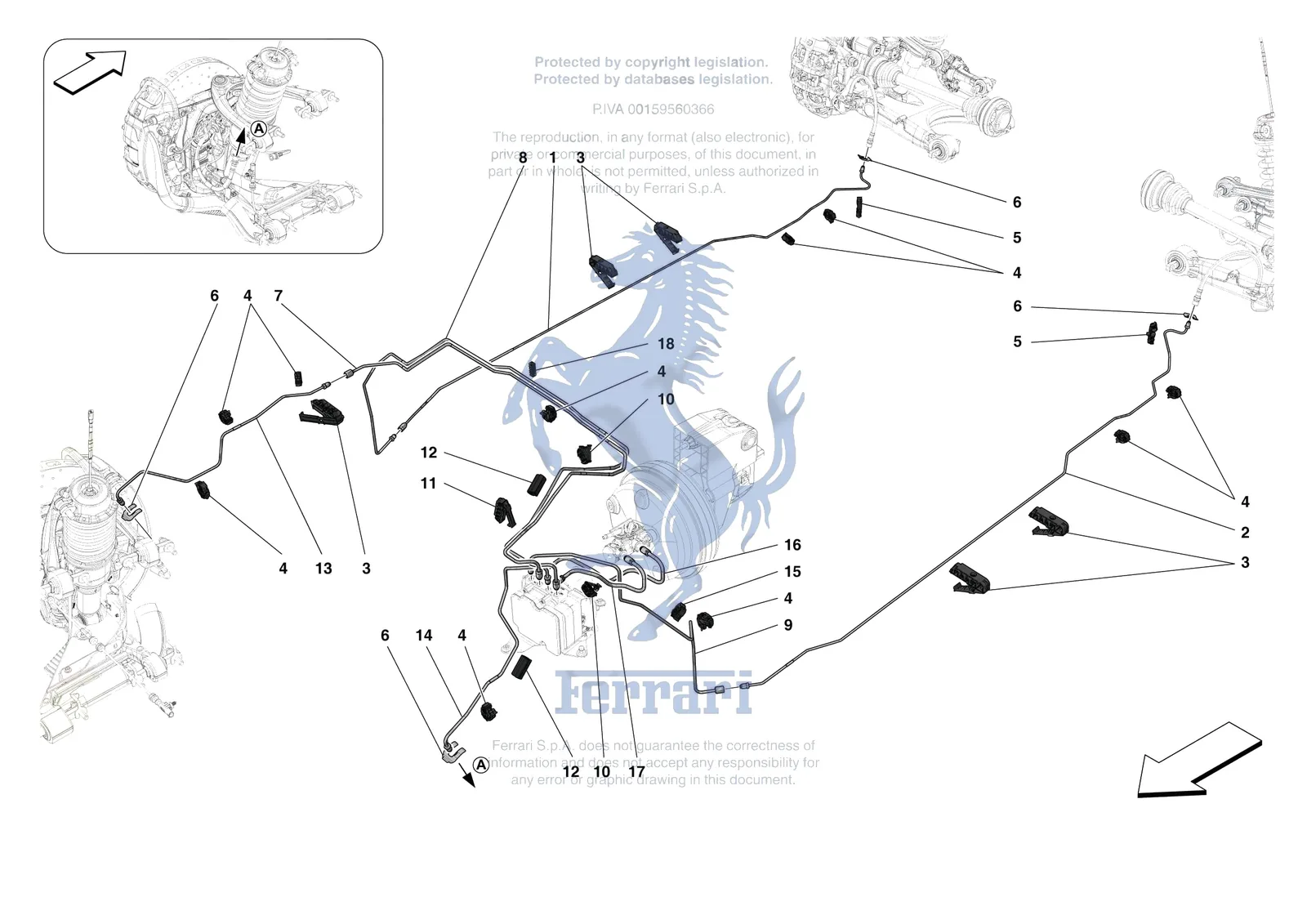

![Ferrari Monza SP1 [MECHANICAL SYSTEM] - D.23 - HYDRAULIC BRAKE CONTROL PIPES -Not for RHD- exploded diagram](https://awitalian.com/wp-content/uploads/aw-catalogue/diagrams/monza-sp1/0072.webp)
Parts on this diagram
| Ref. | Part number | Part | Price | Availability |
|---|---|---|---|---|
| 1 | 284627 | Ferrari Pipe From Disconnector To RH Rear Wheel - 284627 | $113.08 | Special order, ships in 7-14 days |
| 2 | 284624 | Ferrari Pipe From Disconnector To LH Rear Wheel - 284624 | $115.54 | Special order, ships in 7-14 days |
| 3 | 241118 | Ferrari Clip - 241118 | $4.98 | Special order, ships in 7-14 days |
| 4 | 234285 | Ferrari Clip - 234285 | $1.40 | Available, ships in 3-6 days |
| 5 | 284622 | Ferrari Clip - 284622 | $3.47 | Special order, ships in 7-14 days |
| 6 | 116374 | Ferrari/Maserati Clip - 116374 | $3.20 | In stock |
| 7 | 769871 | Ferrari Pipe From ECU To RH Front Wh - 769871 | $162.25 | Special order, ships in 7-14 days |
| 8 | 769872 | Ferrari Pipe From ECU To RH Rear Whe - 769872 | $172.10 | Special order, ships in 7-14 days |
| 9 | 314454 | Ferrari Pipe From Unit To LH Rear Wheel Disconnecter - 314454 | $86.04 | Special order, ships in 7-14 days |
| 10 | 249782 | Ferrari Clip - 249782 | $2.13 | Special order, ships in 7-14 days |
| 11 | 234286 | Ferrari Clip - 234286 | $3.03 | Available, ships in 3-6 days |
| 12 | 262737 | Ferrari Rubber Retainer - 262737 | $10.06 | Special order, ships in 7-14 days |
| 13 | 275449 | Ferrari Pipe From Disconnector To RH Front Wheel LHD - 275449 | $68.83 | Special order, ships in 7-14 days |
| 14 | 335561 | Ferrari Pipe From ECU To LH Front Wh - 335561 | $86.04 | Special order, ships in 7-14 days |
| 15 | 234284 | Ferrari Clip - 234284 | $1.23 | Available, ships in 3-6 days |
| 16 | 325032 | Ferrari Pipe From Master Cylinder To - 325032 | $88.49 | Special order, ships in 7-14 days |
| 17 | 325033 | Ferrari Pipe From Master Cylinder To - 325033 | $88.49 | Special order, ships in 7-14 days |
| 18 | 291250 | Ferrari Clip - 291250 | $1.49 | Special order, ships in 7-14 days |
